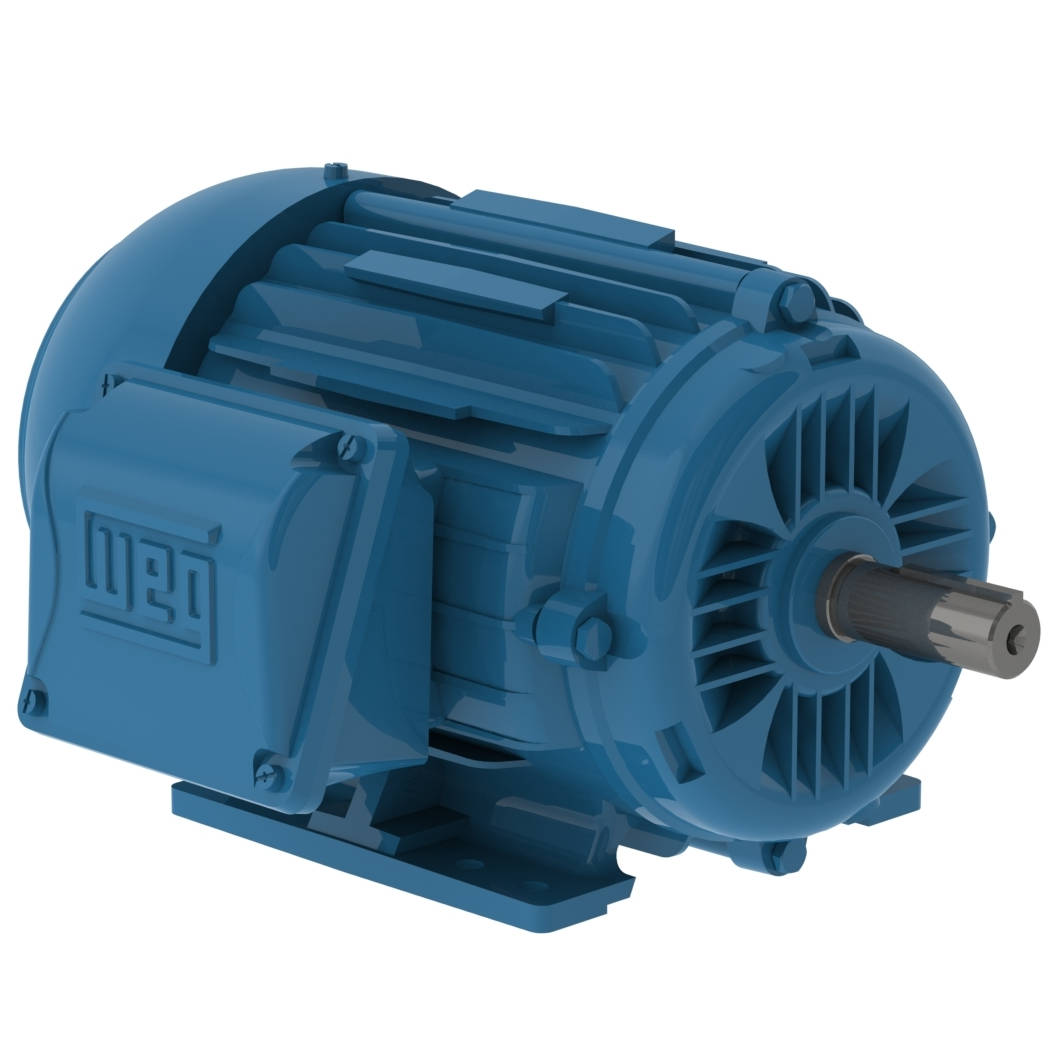

00136ET3H143T-W22 WEG 1HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00136ET3H143T-W22

00136ET3H143T-W22 WEG 1HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00136ET3H143T-W22

Selected accessories will also be added to cart
$478.82 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 575VAC 60Hz 3 Phase, 12438113, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage575 V
Rated current1.15 A
L. R. Amperes9.45 A
LRC8.2x(Code L)
No load current0.568 A
Rated torque1.50 ft.lb
Locked rotor torque320 %
Breakdown torque400 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)0.0332 sq.ft.lb
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?40.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
75.0  79.0  81.5

Power factor

50%75%100%
0.63  0.74  0.80

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6205 ZZ  6204 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
32 lb 72 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Enclosure
TEFC
Horsepower
1HP
Input Voltage
575VAC
Frame
143T
Frame
145T
