Motor/Control Division

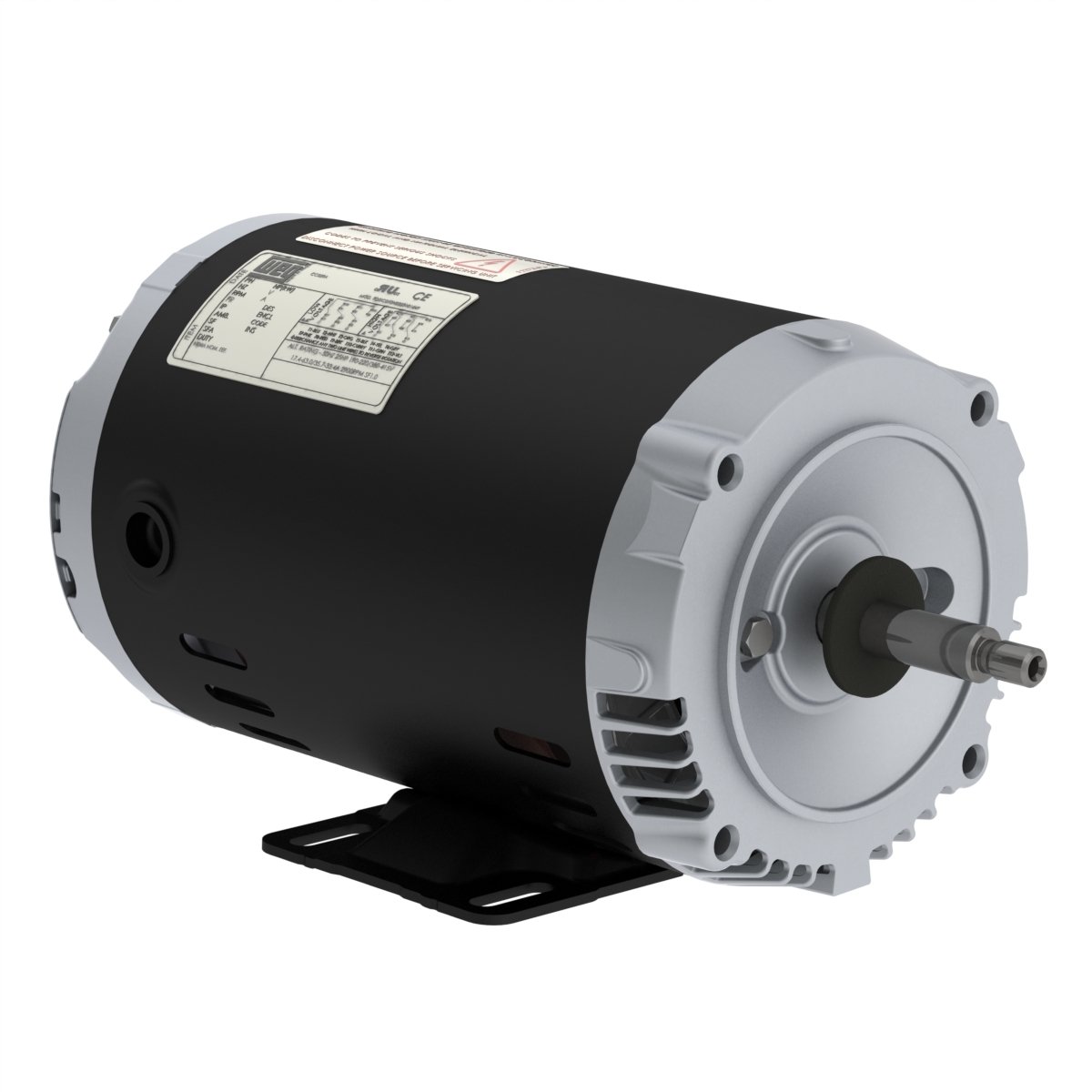

Frame	56J
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3470 rpm
Slip	3.61 %
Rated voltage	208-230/460 V
Rated current	3.40-3.08/1.54 A
L. R. Amperes	21.8-19.7/9.86 A
LRC	6.4x(Code J)
No load current	1.64-1.90/0.950 A
Rated torque	1.49 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.0517 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.40 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	CCW
Noise level?	62.0 dB(A)
Approx. weight?	22.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
70.0	74.0	75.5

Power factor

50%	75%	100%
0.60	0.73	0.81

Frame	56J
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2800 rpm
Slip	6.67 %
Rated voltage	190/380 V
Rated current	3.52/1.76 A
L. R. Amperes	16.2/8.10 A
LRC	4.6x(Code F)
No load current	1.80/0.900 A
Rated torque	1.85 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.0517 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.40 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	CCW
Noise level?	60.0 dB(A)
Approx. weight?	22.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
72.6	74.5	72.6

Power factor

50%	75%	100%
0.70	0.82	0.89

Frame	56J
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2840 rpm
Slip	5.33 %
Rated voltage	220/415 V
Rated current	3.28/1.74 A
L. R. Amperes	17.1/9.05 A
LRC	5.2x(Code H)
No load current	2.26/1.20 A
Rated torque	1.82 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.0517 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.40 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	CCW
Noise level?	60.0 dB(A)
Approx. weight?	22.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
67.8	72.5	73.1

Power factor

50%	75%	100%
0.58	0.72	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	AISI 304 Stainless Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	Without Key
Drip Cover	Without
Resilient Base	Without
