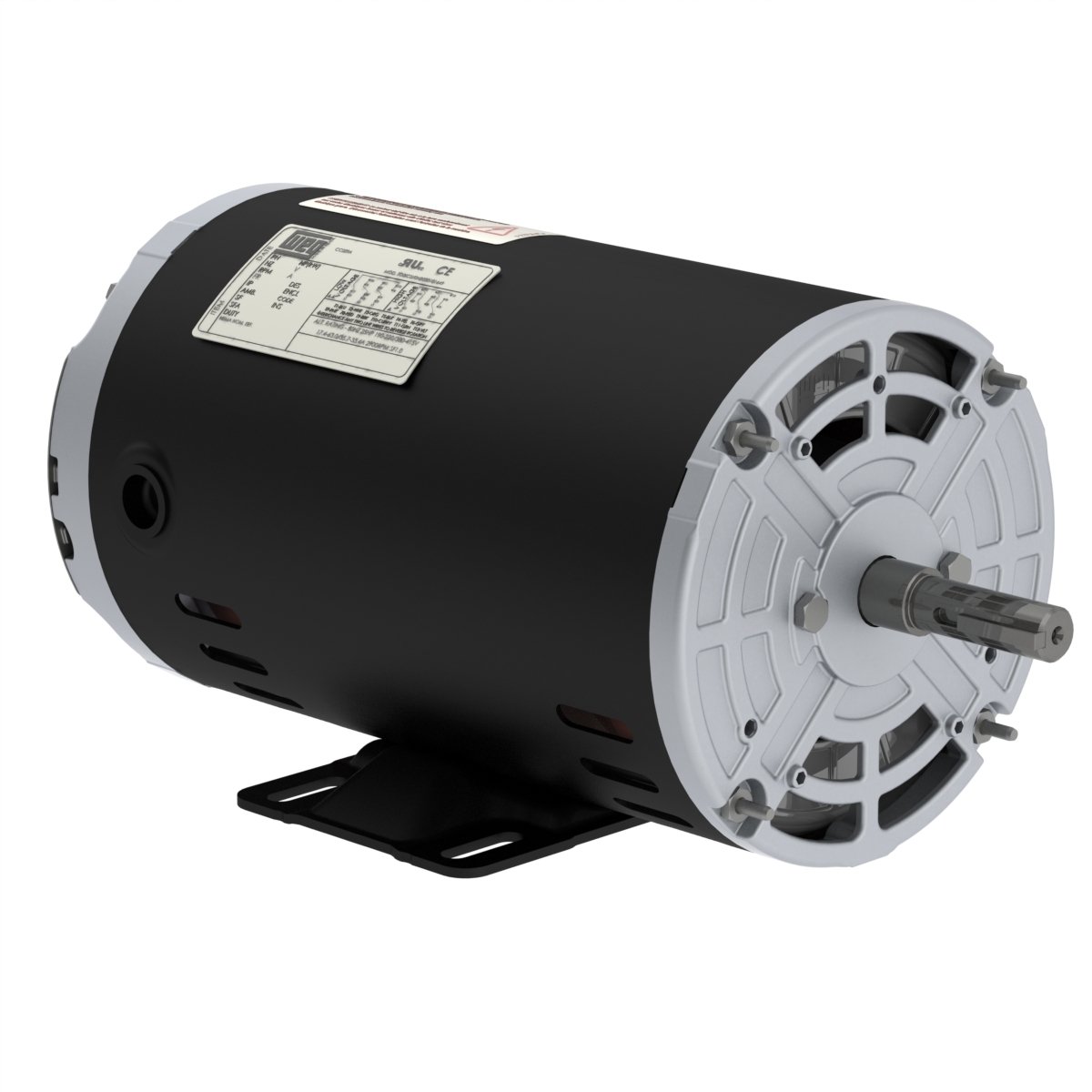

Motor/Control Division

Frame	56
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3470 rpm
Slip	3.61 %
Rated voltage	208-230/460 V
Rated current	3.34-3.02/1.51 A
L. R. Amperes	21.4-19.3/9.66 A
LRC	6.4x(Code J)
No load current	1.38-1.60/0.800 A
Rated torque	1.49 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.0517 sq.ft.lb
Insulation Class	F
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	20.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
70.0	75.5	77.0

Power factor

50%	75%	100%
0.60	0.73	0.81

Frame	56
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2820 rpm
Slip	6.00 %
Rated voltage	190/380 V
Rated current	3.50/1.75 A
L. R. Amperes	17.2/8.58 A
LRC	4.9x(Code G)
No load current	1.50/0.750 A
Rated torque	1.84 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	0.0517 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	60.0 dB(A)
Approx. weight?	20.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
72.9	74.9	73.2

Power factor

50%	75%	100%
0.69	0.82	0.89

Frame	56
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2860 rpm
Slip	4.67 %
Rated voltage	220/415 V
Rated current	3.30/1.75 A
L. R. Amperes	17.8/9.45 A
LRC	5.4x(Code H)
No load current	2.34/1.24 A
Rated torque	1.81 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.0517 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.25 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	60.0 dB(A)
Approx. weight?	20.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
68.1	72.8	73.6

Power factor

50%	75%	100%
0.57	0.72	0.81

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
