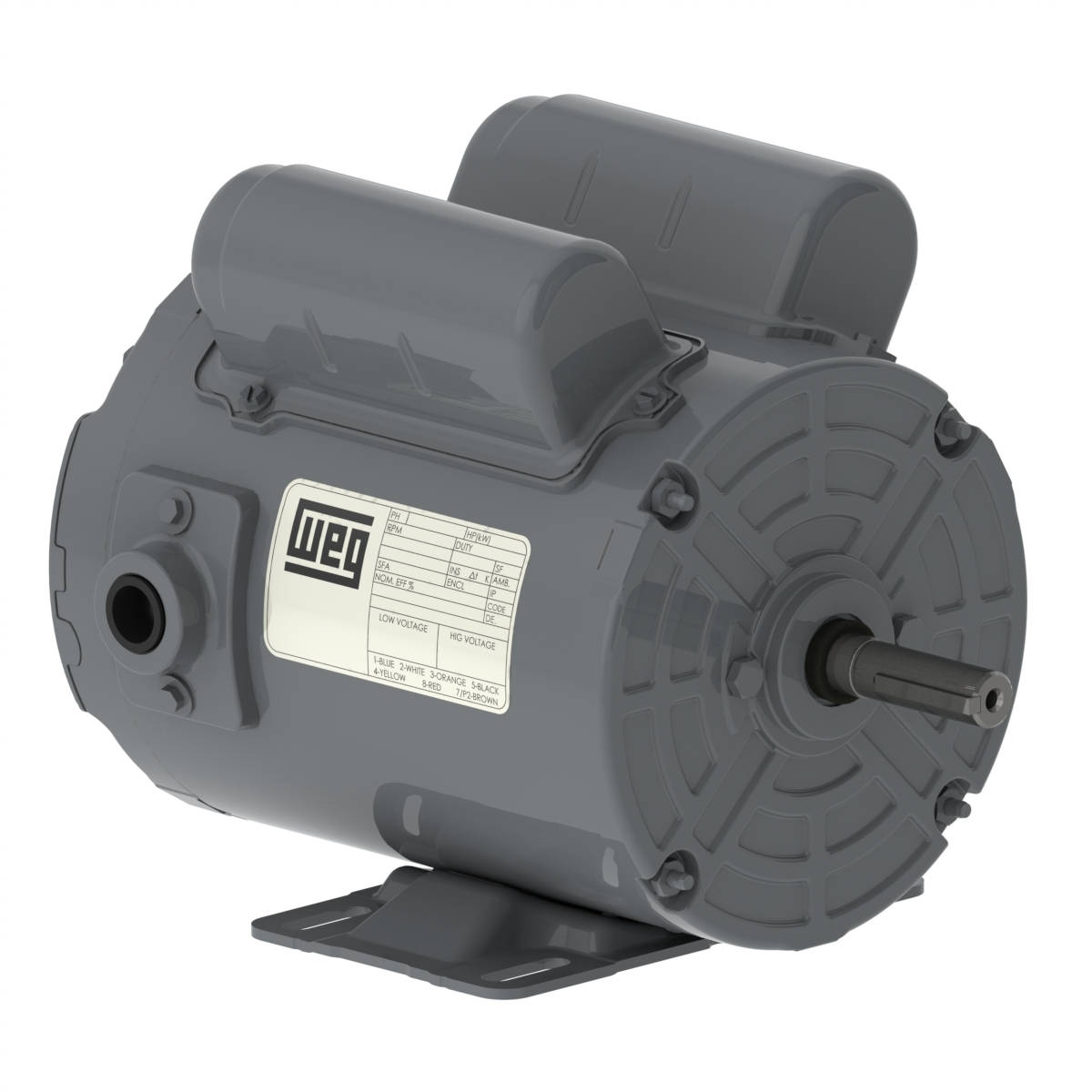

Motor/Control Division

Frame	56
Output	1 HP (0.75 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3500 rpm
Slip	2.78 %
Rated voltage	115/208-230 V
Rated current	10.1/5.64-5.06 A
L. R. Amperes	85.0/47.4-42.5 A
LRC	8.4x(Code L)
No load current	5.50/2.37-2.75 A
Rated torque	1.48 ft.lb
Locked rotor torque	280 %
Breakdown torque	280 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.0472 sq.ft.lb
Design	N
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC410 - TEAO
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	68.0 dB(A)
Approx. weightÂ³	27.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
55.0	64.0	70.0

Power factor

50%	75%	100%
0.82	0.88	0.92

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without

Loading...

Bearing details

	Drive End	Non Drive End
Bearing type	6204 ZZ	6202 ZZ
Sealing	V'Ring	V'Ring
Lubrication interval	-	-
Lubricant amount	-	-
Grease Type	Mobil Polyrex EM

Foundation loads

Max. traction	Max. compression
26 lb	54 lb

6204ZZC3 Koyo Ball Bearing, Shielded

6204-ZZC3, 20mm x 47mm x 14mm
Available Stock: 12

MFG: JTEKT Corporation

6204-ZZC3

$8.94 / Each

Details...

Type

Electric Motor

Input Phase

Single Phase

Speed

3600RPM

Application

Farm Duty

Frame

56Z

Enclosure

TEAO

Horsepower

1HP

Input Voltage

230VAC

Input Voltage

208VAC

Input Voltage

115VAC
