/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Super Premium Efficiency/00136EG3E143T-W22 WEG 1HP Electric Motor, 3600RPM

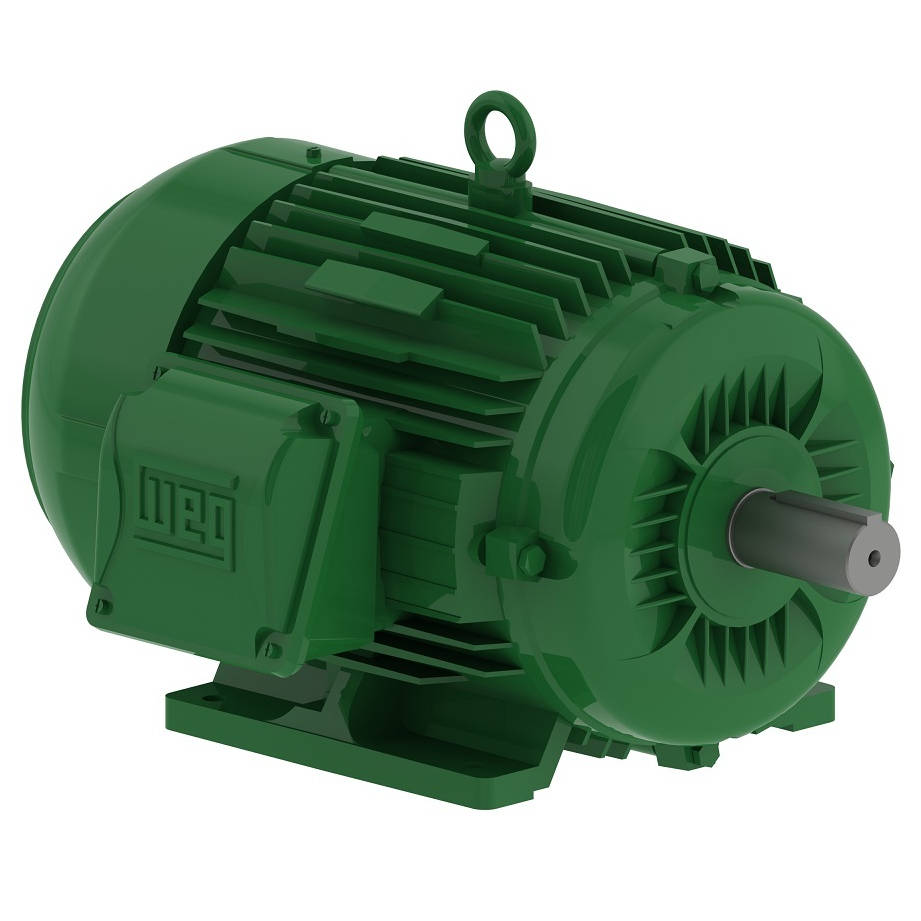

00136EG3E143T-W22 WEG 1HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00136EG3E143T-W22

00136EG3E143T-W22 WEG 1HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00136EG3E143T-W22

Selected accessories will also be added to cart
$506.41 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 208-230/460VAC 60Hz 3 Phase, 12604504, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency60 Hz
Rated speed3485 rpm
Slip3.19 %
Rated voltage230/460 V
Rated current2.70/1.35 A
L. R. Amperes21.6/10.8 A
LRC8.0x(Code K)
No load current1.16/0.580 A
Rated torque1.51 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time64s (cold) 36s (hot)
Moment of inertia (J)0.0415 sq.ft.lb
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?44.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
81.5  82.5  84.0

Power factor

50%75%100%
0.69  0.79  0.83
Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency50 Hz
Rated speed2860 rpm
Slip4.67 %
Rated voltage380 V
Rated current1.55 A
L. R. Amperes9.92 A
LRC6.4x(Code H)
No load current0.550 A
Rated torque1.84 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)0.0415 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?44.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
81.0  82.0  83.5

Power factor

50%75%100%
0.74  0.83  0.88
Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency50 Hz
Rated speed2875 rpm
Slip4.17 %
Rated voltage400 V
Rated current1.51 A
L. R. Amperes10.6 A
LRC7.0x(Code J)
No load current0.590 A
Rated torque1.83 ft.lb
Locked rotor torque229 %
Breakdown torque270 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)0.0415 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?44.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
81.0  82.0  83.5

Power factor

50%75%100%
0.71  0.81  0.86
Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency50 Hz
Rated speed2885 rpm
Slip3.83 %
Rated voltage415 V
Rated current1.46 A
L. R. Amperes10.8 A
LRC7.4x(Code J)
No load current0.630 A
Rated torque1.82 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)0.0415 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?44.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
81.2  82.2  84.0

Power factor

50%75%100%
0.68  0.79  0.85

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 6002 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
1HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
143T
Frame
145T
