/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, TEFC/Foot Mount/00136ES1B143T-S WEG 1HP General Purpose Electric Motor, 3600RPM

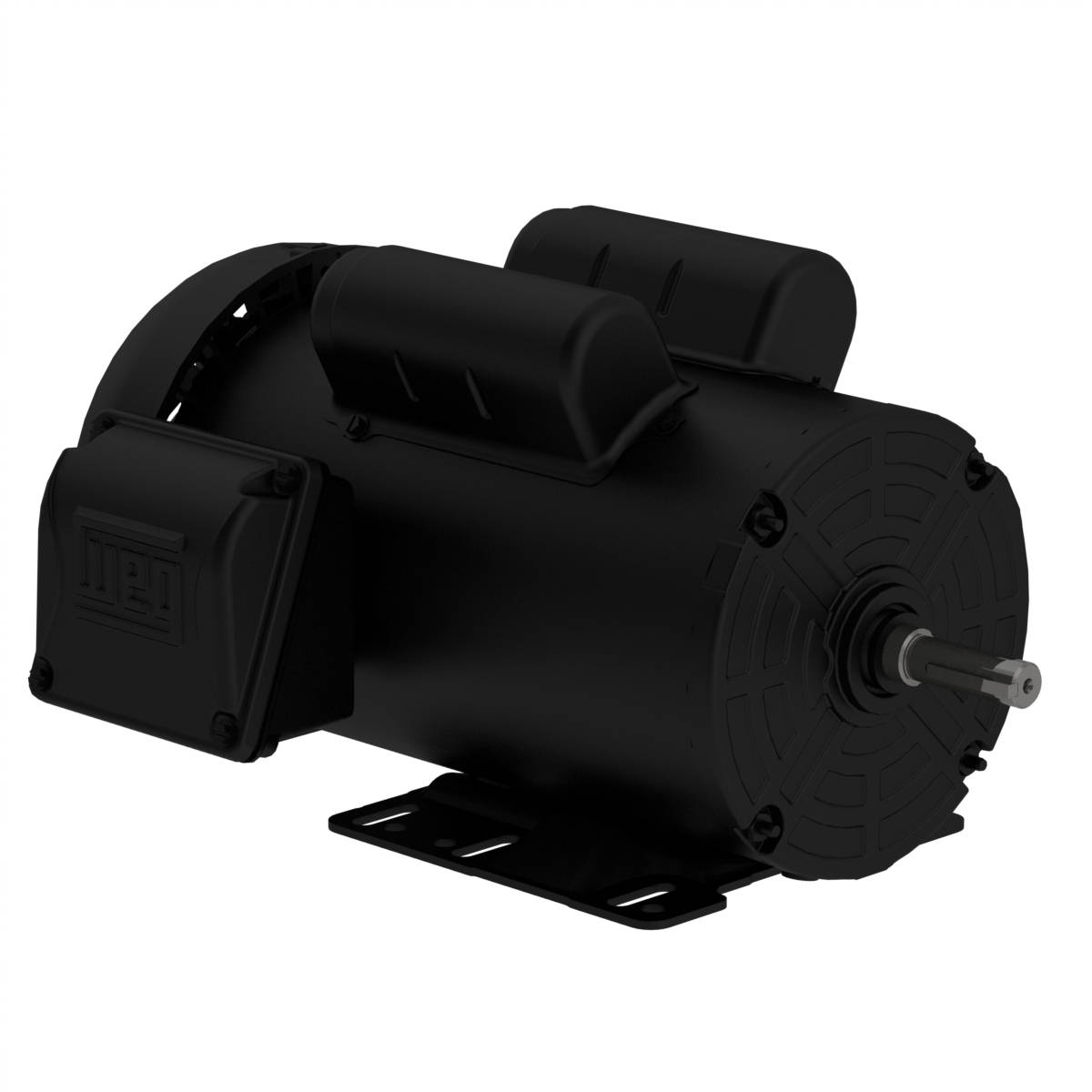

00136ES1B143T-S WEG 1HP General Purpose Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00136ES1B143T-S

00136ES1B143T-S WEG 1HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00136ES1B143T-S

Selected accessories will also be added to cart
$492.17 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 115/208-230VAC 60Hz Single Phase, 14502589, Rolled Steel, Foot Mounted

Electric Motors

Frame143/5T
Output1 HP (0.75 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current10.1/5.64-5.06 A
L. R. Amperes84.8/47.4-42.5 A
LRC8.4x(Code L)
No load current5.50/2.37-2.75 A
Rated torque1.50 ft.lb
Locked rotor torque280 %
Breakdown torque280 %
Locked rotor time14s (cold) 8s (hot)
DesignN
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Approx. weight³28.7 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
55.064.070.0

Power factor

50%75%100%
0.820.880.92

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
1HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
143T
Frame
145T
