/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, TEFC/Jet Pump/00136ES1BJPR56J-S WEG 1HP Jet Pump Electric Motor, 3600RPM

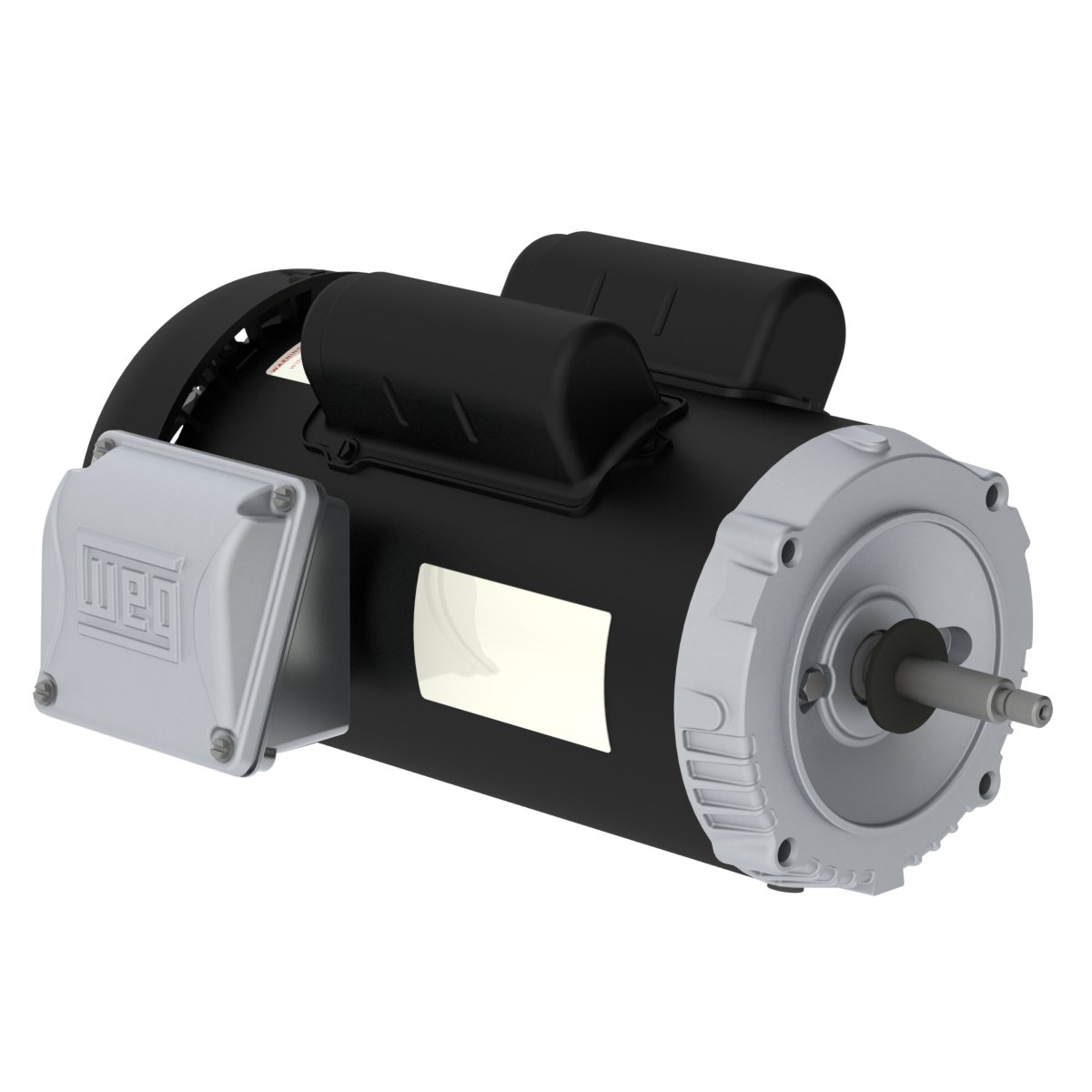

00136ES1BJPR56J-S WEG 1HP Jet Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00136ES1BJPR56J-S

00136ES1BJPR56J-S WEG 1HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00136ES1BJPR56J-S

Selected accessories will also be added to cart
$343.54 / Each
Quantity:
IC411 - TEFC, IP55, 56J Frame, 115/208-230VAC Single Phase 60Hz, 13710803, J-Type, Footless, Rolled Steel, Standard Efficiency

Electric Motors

Frame56J
Output1 HP (0.75 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current10.1/5.64-5.06 A
L. R. Amperes85.0/47.4-42.5 A
LRC8.4x(Code L)
No load current5.50/2.37-2.75 A
Rated torque1.48 ft.lb
Locked rotor torque280 %
Breakdown torque280 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.0472 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹CCW
Noise level²68.0 dB(A)
Approx. weight³28.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
55.064.070.0

Power factor

50%75%100%
0.820.880.92

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialAISI 304 Stainless Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodWithout Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
1HP
Frame
56J
Input Voltage
115VAC
Input Voltage
208VAC
Input Voltage
230VAC
