/Products/Electric Motors/3 Phase/WEG/Rolled Steel, ODP/JP Close-Coupled Pump/JP, ODP/00152OT3E182JP-S WEG 1.5HP JP Close Coupled Pump Electric Motor, 1200RPM

Product ID: 00152OT3E182JP-S

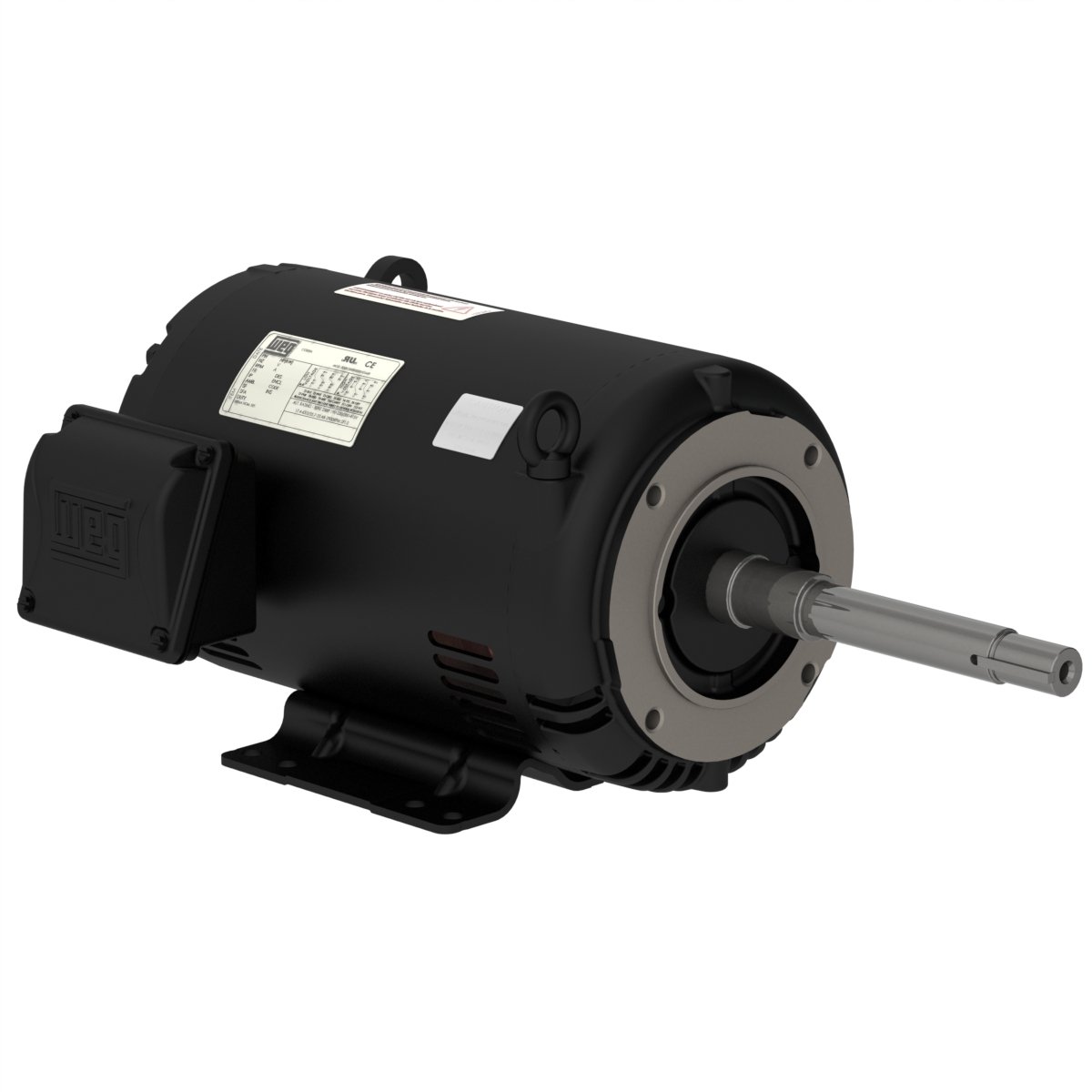

00152OT3E182JP-S WEG 1.5HP JP Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00152OT3E182JP-S

Selected accessories will also be added to cart

$546.75 / Each

Quantity:

IC01 - ODP, 182JP/184JP Frame, 208-230/460VAC 3-Phase 50/60Hz, 12682732, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Details
Purchase Components

Electric Motors

Frame	182/4JP
Output	1.5 HP (1.1 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1165 rpm
Slip	2.92 %
Rated voltage	208-230/460 V
Rated current	4.98-4.50/2.25 A
L. R. Amperes	32.3-29.3/14.6 A
LRC	6.5x(Code J)
No load current	2.36-2.74/1.37 A
Rated torque	6.67 ft.lb
Locked rotor torque	200 %
Breakdown torque	310 %
Locked rotor time	82s (cold) 46s (hot)

Moment of inertia (J)	0.2178 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	52.0 dB(A)
Approx. weight³	56.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	86.5

Power factor

50%	75%	100%
0.51	0.63	0.71

Frame	182/4JP
Output	1.5 HP (1.1 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	950 rpm
Slip	5.00 %
Rated voltage	190/380 V
Rated current	5.24/2.62 A
L. R. Amperes	27.2/13.6 A
LRC	5.2x(Code G)
No load current	2.69/1.35 A
Rated torque	8.18 ft.lb
Locked rotor torque	160 %
Breakdown torque	220 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.2178 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	56.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.3	84.1	82.8

Power factor

50%	75%	100%
0.59	0.71	0.77

Frame	182/4JP
Output	1.5 HP (1.1 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	960 rpm
Slip	4.00 %
Rated voltage	220/415 V
Rated current	4.81/2.55 A
L. R. Amperes	28.9/15.3 A
LRC	6.0x(Code J)
No load current	3.00/1.59 A
Rated torque	8.10 ft.lb
Locked rotor torque	210 %
Breakdown torque	280 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.2178 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	50.0 dB(A)
Approx. weight³	56.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.2	83.5	83.5

Power factor

50%	75%	100%
0.51	0.64	0.72

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
