/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/Hydroduty/TEFC, C-Face, Foot Mount/00152ET3EHD56C WEG 1HP Hydroduty Washdown Electric Motor, 1200RPM
Click Image to Expand

Product ID: 00152ET3EHD56C

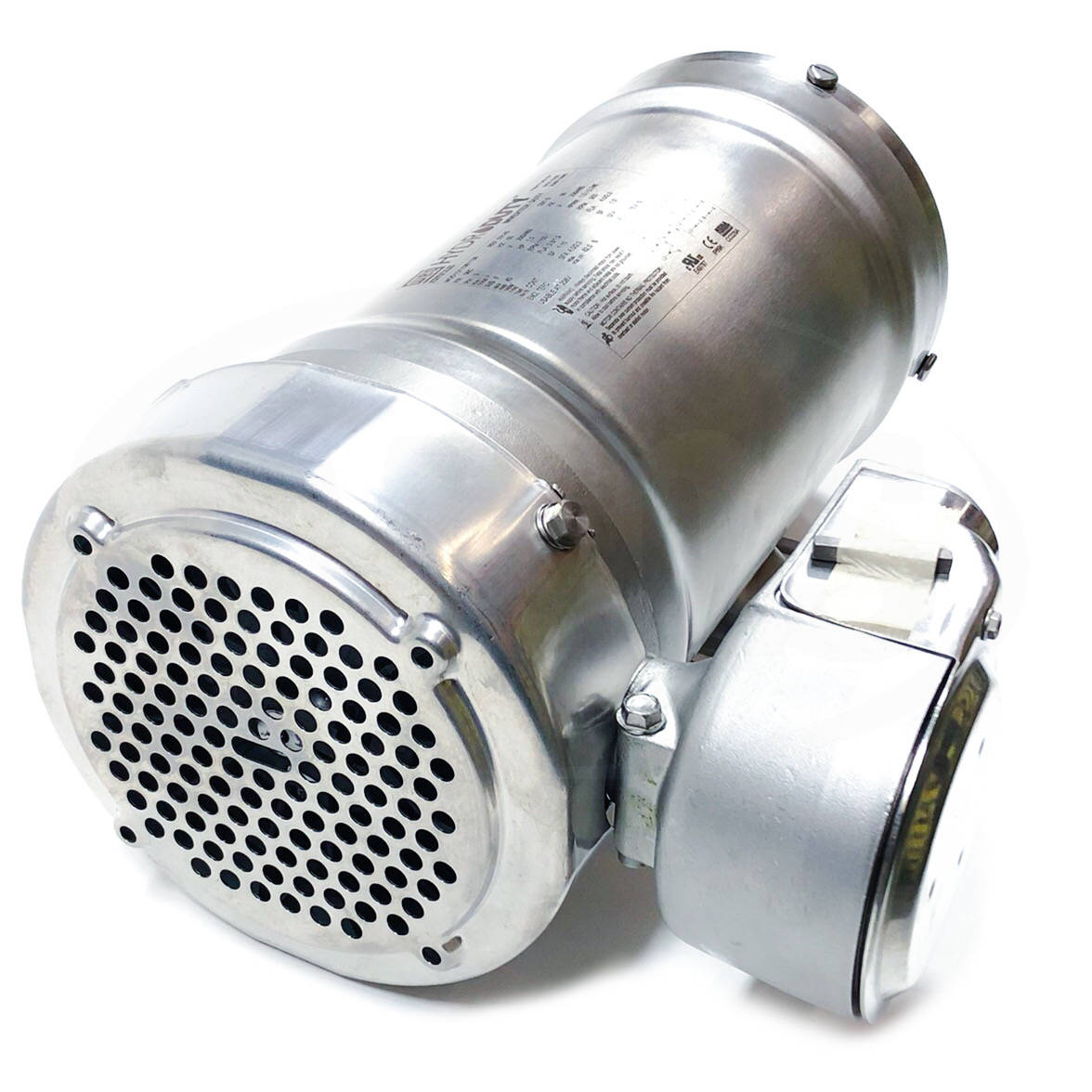

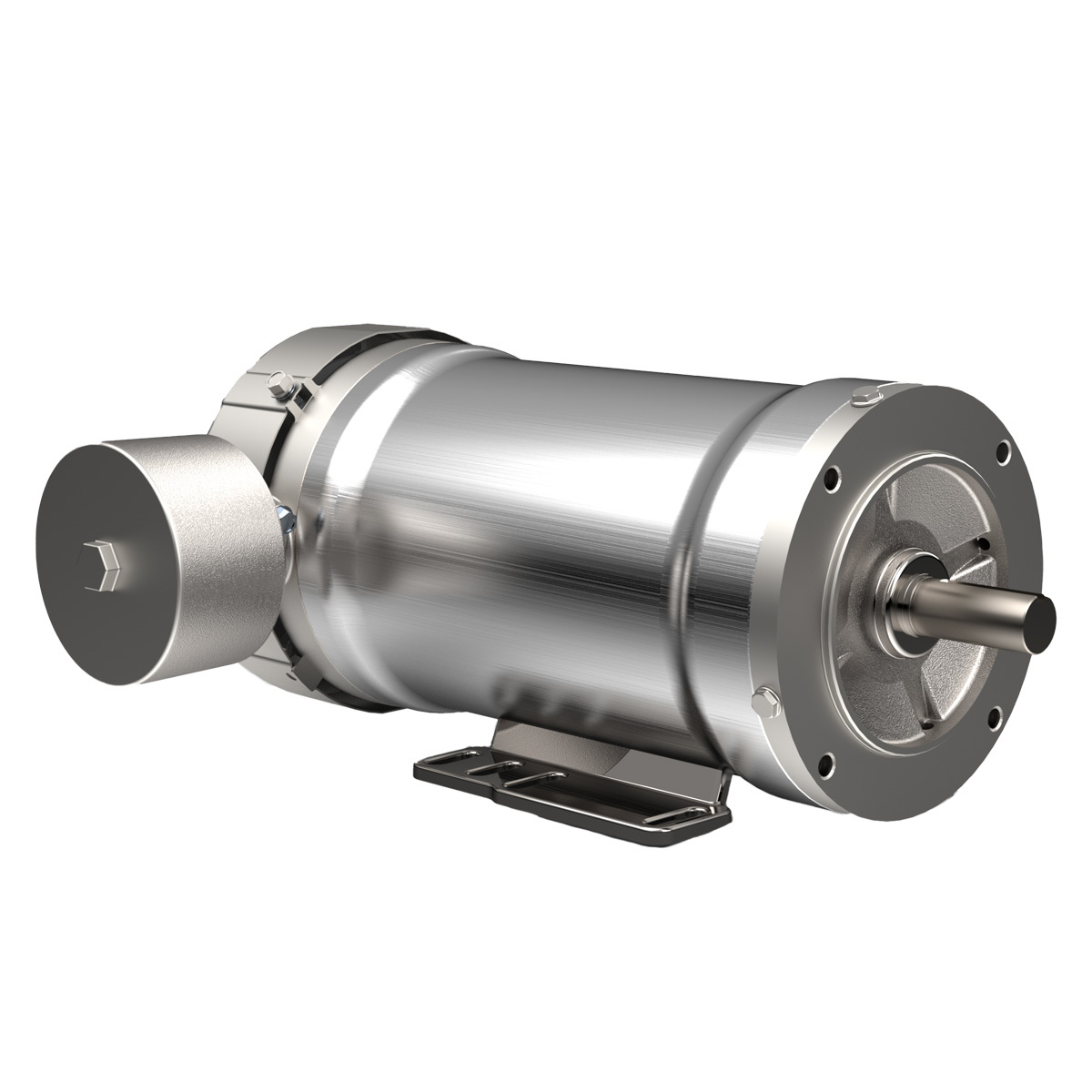

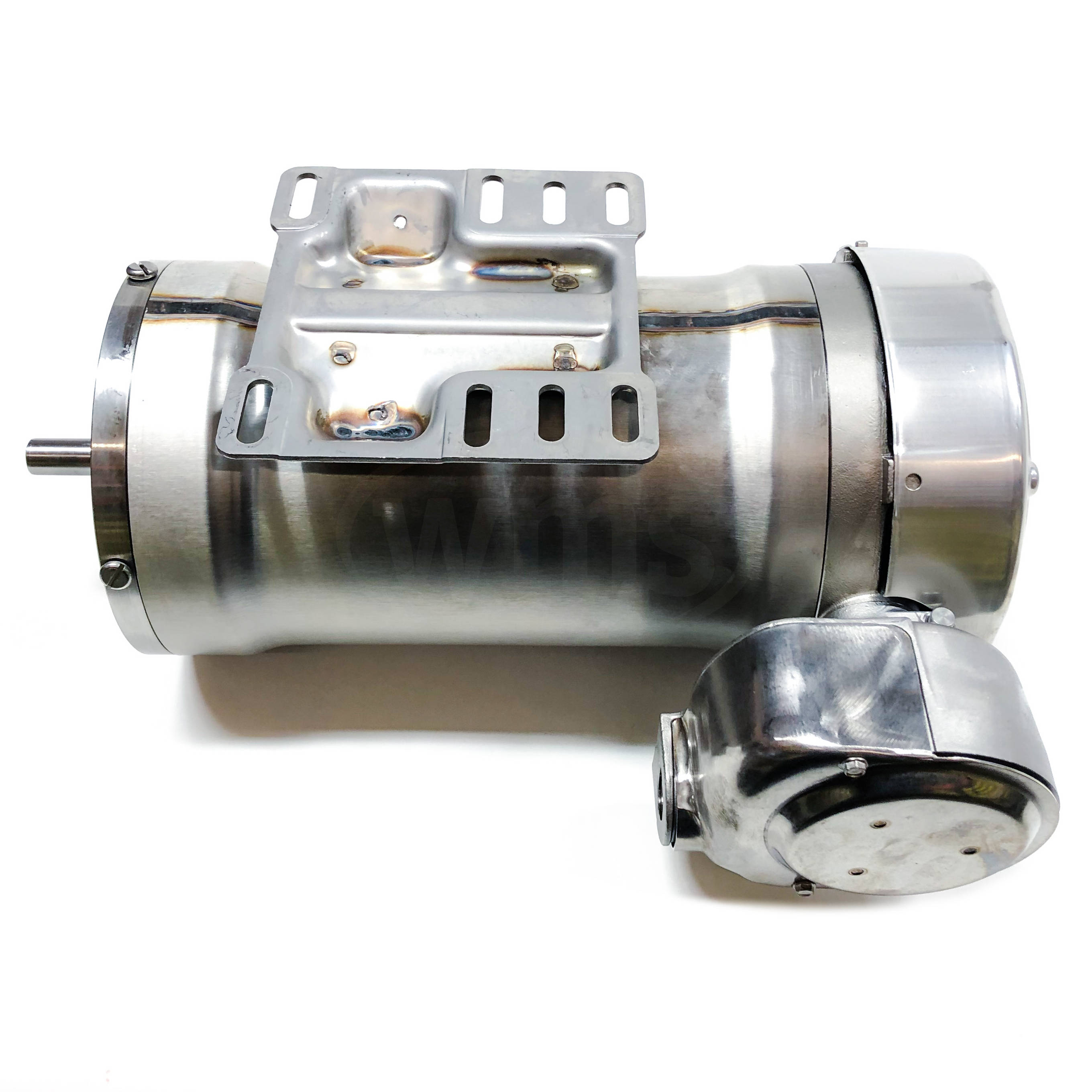

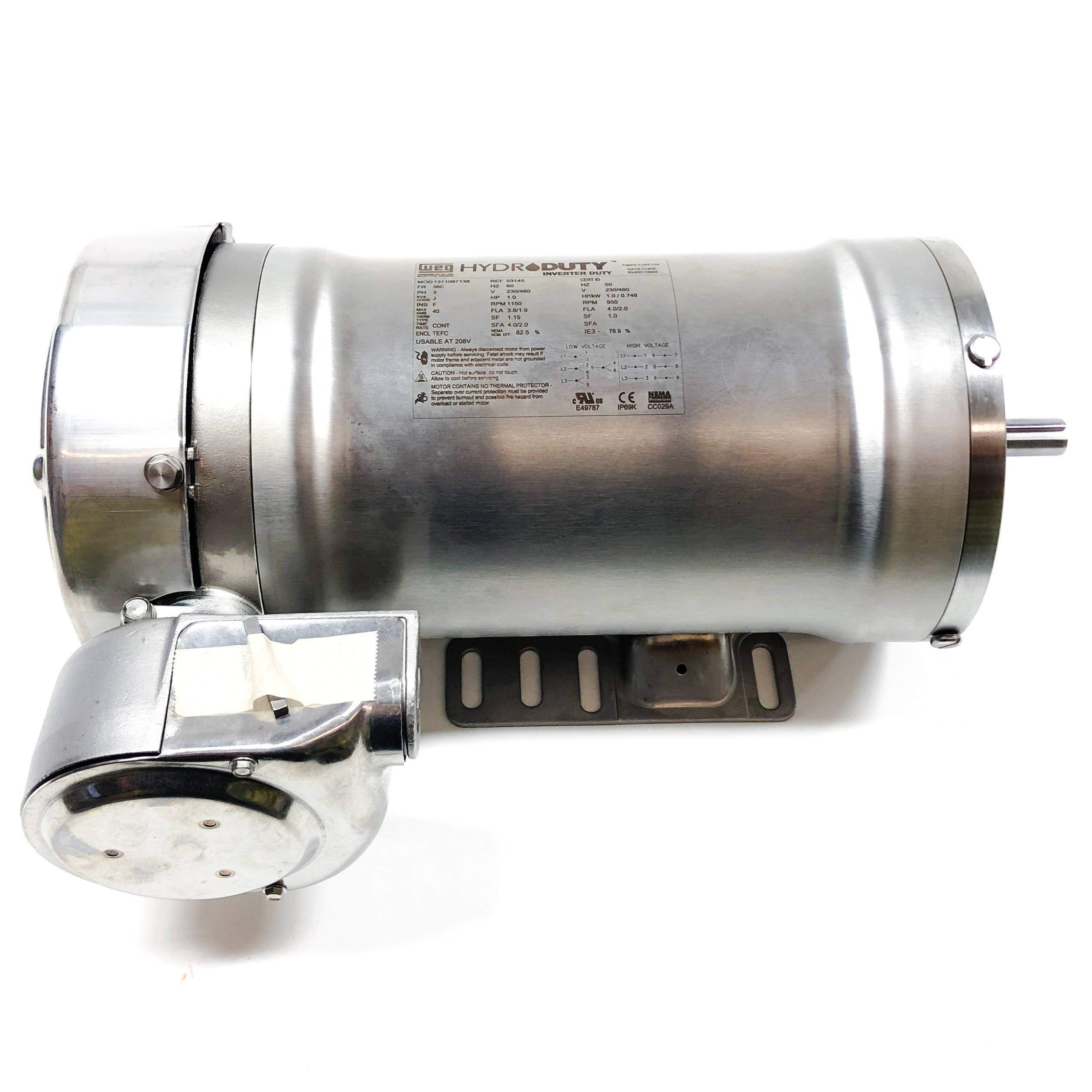

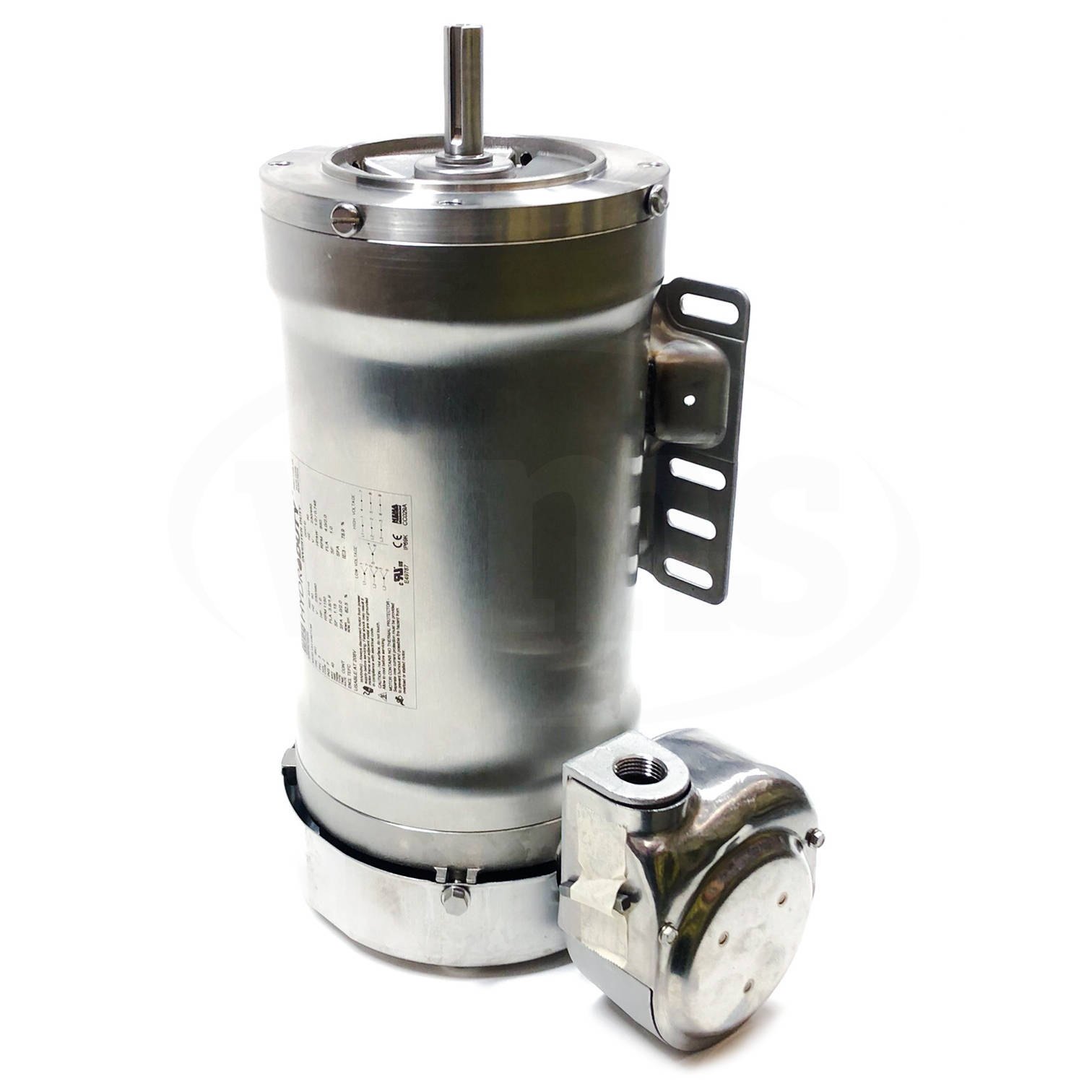

00152ET3EHD56C WEG 1HP Hydroduty Washdown Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00152ET3EHD56C

Selected accessories will also be added to cart
$1,668.75 / Each
Quantity:
TEFC, IP66, 56C Frame, 230/460VAC 3-Phase 50/60Hz, 14763240, C-Face, Foot Mount, Stainless Steel, NEMA Premium Efficiency, EZ Connect
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

StandardNEMA MG-1
Degree of ProtectionIP66
MountingF-1
FlangeC
Frame MaterialStainless steel
Frequency60/50 Hz
Output rating1 HP
EnclosureTEFC
Number of poles6P
Motor ApplicationHydroDuty
MountingFoot-mounted
EfficiencyNEMA Premium Efficiency
Terminal box¹Left position
Frame56C
Voltage230/460 V
Synchronous speed1200/1000 rpm

Promo Video

Documents

Type
Electric Motor
Frame
56C
Input Phase
3-Phase
Horsepower
1HP
Enclosure
TEFC
Input Voltage
230VAC
Input Voltage
460VAC
Speed
1200RPM
