00156EG3E143T-W22 WEG 1.5HP Electric Motor, 3600RPM

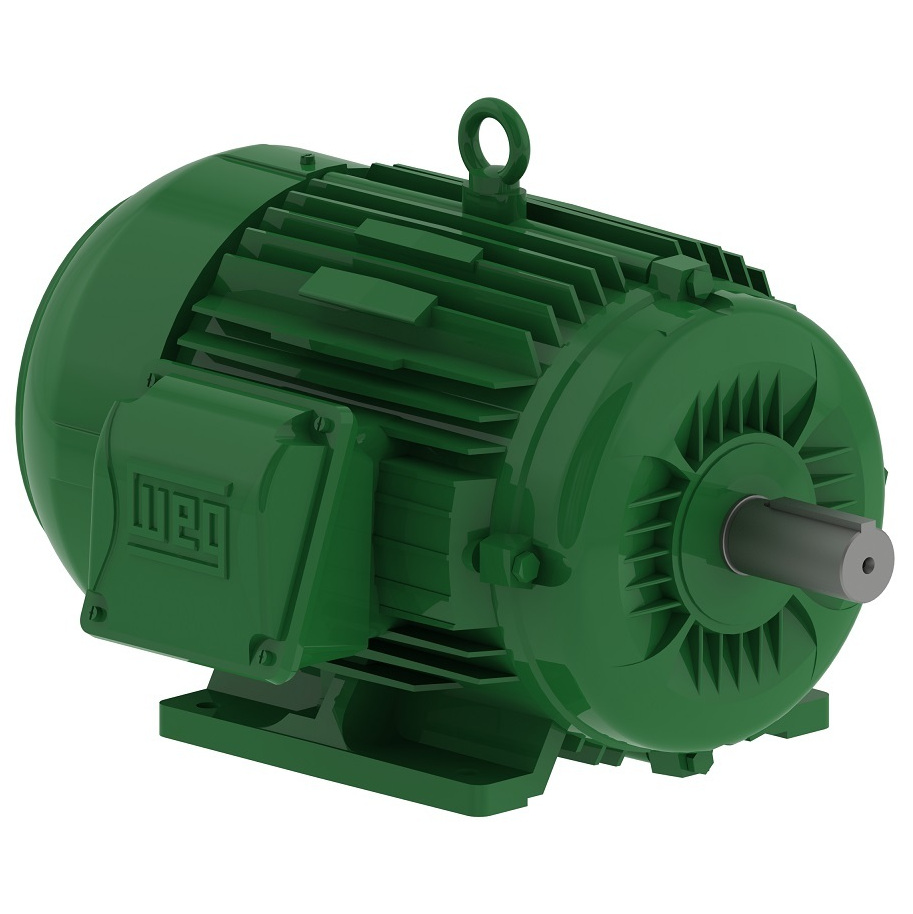

Enlarge Photo

Product ID: 00156EG3E143T-W22

00156EG3E143T-W22 WEG 1.5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156EG3E143T-W22

Selected accessories will also be added to cart
$531.33 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 208-230/460VAC 60Hz 3 Phase, 12604505, Super Premium Efficiency, 7/8" Keyed Shaft, Cast Iron Frame, Foot Mounted

Electric Motors

Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency60 Hz
Rated speed3485 rpm
Slip3.19 %
Rated voltage230/460 V
Rated current3.84/1.92 A
L. R. Amperes32.3/16.1 A
LRC8.4x(Code K)
No load current1.60/0.800 A
Rated torque2.26 ft.lb
Locked rotor torque300 %
Breakdown torque350 %
Locked rotor time52s (cold) 29s (hot)
Moment of inertia (J)0.0470 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?46.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  85.5  86.5

Power factor

50%75%100%
0.67  0.78  0.83
Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency50 Hz
Rated speed2860 rpm
Slip4.67 %
Rated voltage380 V
Rated current2.26 A
L. R. Amperes16.7 A
LRC7.4x(Code J)
No load current0.800 A
Rated torque2.75 ft.lb
Locked rotor torque260 %
Breakdown torque300 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.0470 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?46.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  85.0  85.0

Power factor

50%75%100%
0.73  0.83  0.87
Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency50 Hz
Rated speed2875 rpm
Slip4.17 %
Rated voltage400 V
Rated current2.16 A
L. R. Amperes17.5 A
LRC8.1x(Code K)
No load current0.850 A
Rated torque2.74 ft.lb
Locked rotor torque300 %
Breakdown torque340 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.0470 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?46.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.5  85.5  85.5

Power factor

50%75%100%
0.69  0.80  0.86
Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency50 Hz
Rated speed2885 rpm
Slip3.83 %
Rated voltage415 V
Rated current2.13 A
L. R. Amperes18.3 A
LRC8.6x(Code K)
No load current0.900 A
Rated torque2.73 ft.lb
Locked rotor torque330 %
Breakdown torque380 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.0470 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?46.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.5  85.5  85.5

Power factor

50%75%100%
0.66  0.78  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 6002 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
1.5HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
143T
Frame
145T
