00156ES1BJP56C-S WEG 1.5HP Jet Pump Electric Motor, 3600RPM

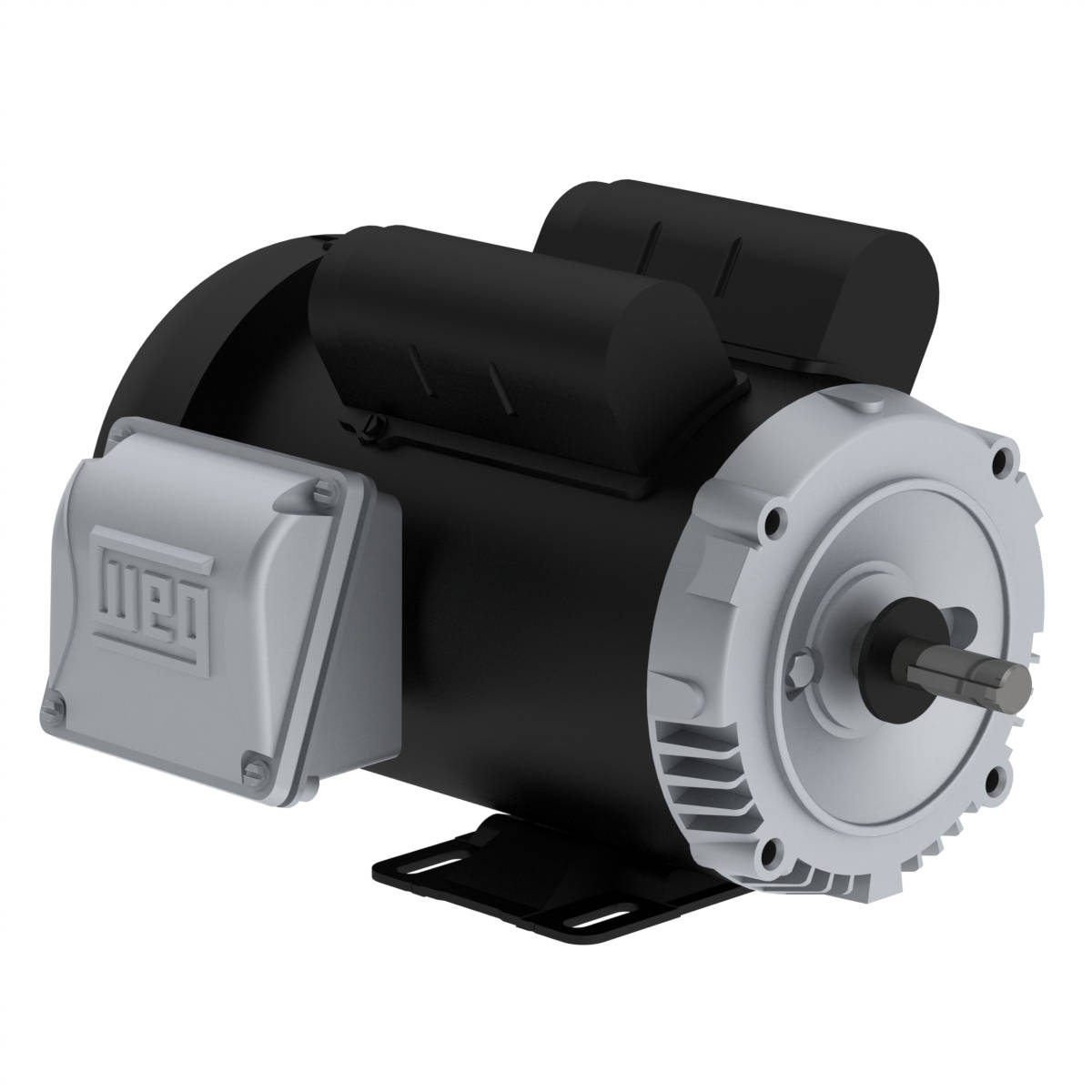

Enlarge Photo

Product ID: 00156ES1BJP56C-S

00156ES1BJP56C-S WEG 1.5HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156ES1BJP56C-S

Selected accessories will also be added to cart
$366.68 / Each
Quantity:
IC411 - TEFC, 56C Frame, 115/208-230VAC Single Phase 60Hz, 14804142, Rolled Steel, Foot Mounted, C-Face, 5/8" Keyed Shaft

Electric Motors

Frame56C
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current13.2/7.30-6.60 A
L. R. Amperes106/58.4-52.8 A
LRC8.0x(Code K)
No load current4.60/1.98-2.30 A
Rated torque2.25 ft.lb
Locked rotor torque240 %
Breakdown torque250 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)0.0589 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹CCW
Noise level²68.0 dB(A)
Approx. weight³33.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
66.073.075.0

Power factor

50%75%100%
0.920.950.97

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialAISI 304 Stainless Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Automatic
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Frame
56C
Enclosure
TEFC
Horsepower
1.5HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
