Product ID: 00156ET3H143TC-W22

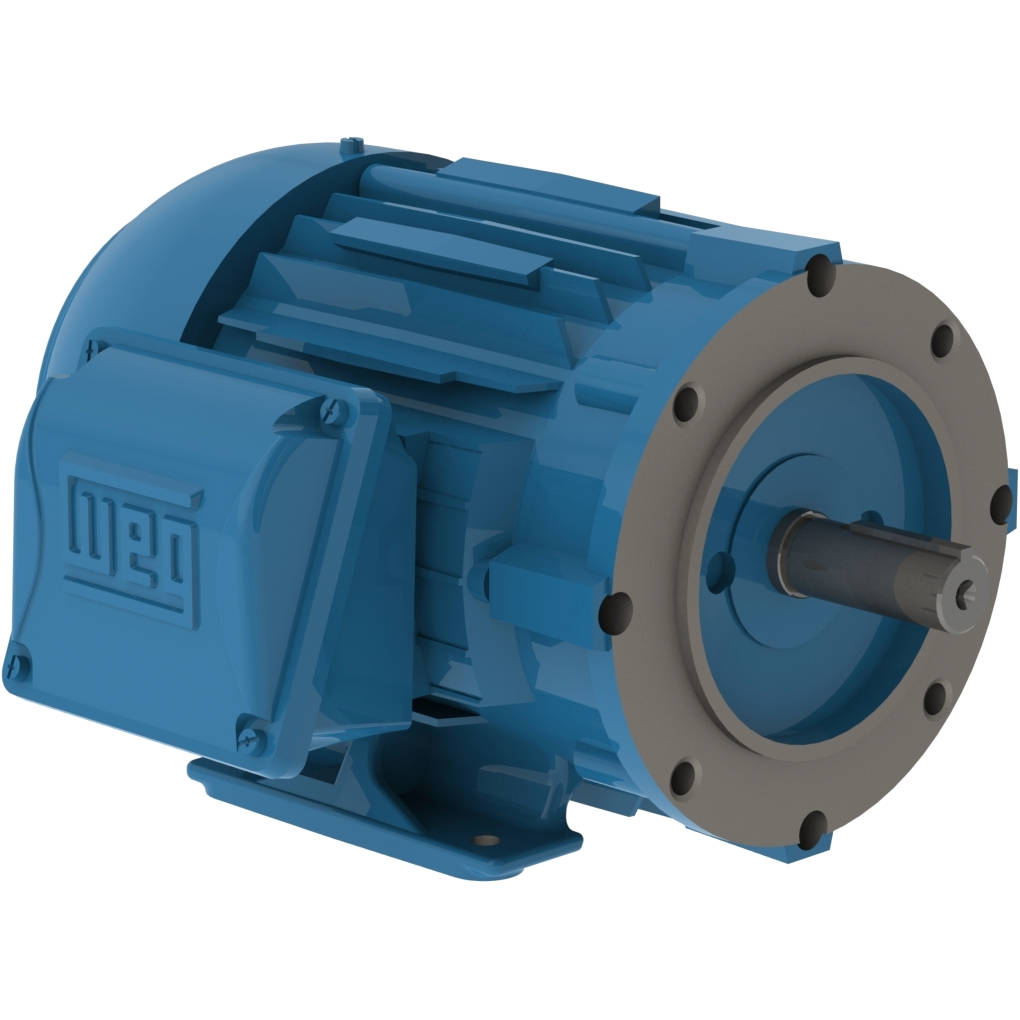

00156ET3H143TC-W22 WEG 1.5HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156ET3H143TC-W22

Selected accessories will also be added to cart

$508.19 / Each

Quantity:

IC411 - TEFC, IP55, 143TC/145TC Frame, 575VAC 60Hz 3 Phase, 12445707, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3480 rpm
Slip	3.33 %
Rated voltage	575 V
Rated current	1.57 A
L. R. Amperes	14.0 A
LRC	8.9x(Code L)
No load current	0.664 A
Rated torque	2.26 ft.lb
Locked rotor torque	310 %
Breakdown torque	370 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	0.0470 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	46.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	84.0	84.0

Power factor

50%	75%	100%
0.68	0.78	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
