00156ET3V56C-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

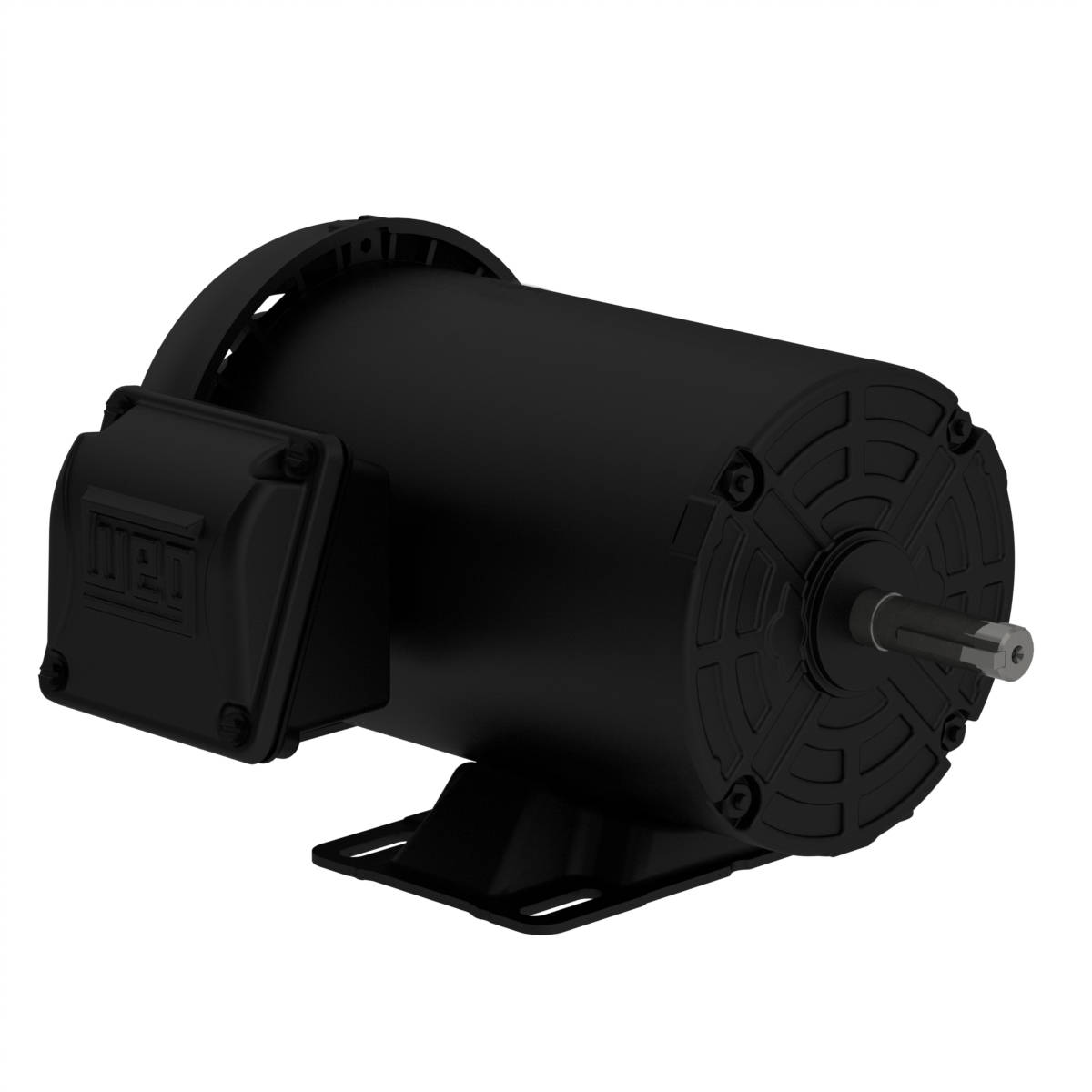

Enlarge Photo

Product ID: 00156ET3V56C-S

00156ET3V56C-S WEG 1.5HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156ET3V56C-S

Selected accessories will also be added to cart
$410.29 / Each
Quantity:
IC411 - TEFC, IP55, 56C Frame, 200/400VAC 60Hz 3 Phase, 14798724, Premium Efficiency, Rolled Steel Frame, Foot Mounted, C-Face

Electric Motors

Frame56C
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency60 Hz
Rated speed3520 rpm
Slip2.22 %
Rated voltage200/400 V
Rated current4.30/2.15 A
L. R. Amperes39.1/19.6 A
LRC9.1x(Code L)
No load current1.98/0.988 A
Rated torque2.24 ft.lb
Locked rotor torque229 %
Breakdown torque300 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)0.1023 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?33.2 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
80.0  82.5  84.0

Power factor

50%75%100%
0.71  0.82  0.88

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Frame
56C
Enclosure
TEFC
Horsepower
1.5HP
Input Voltage
200VAC
Input Voltage
400VAC
