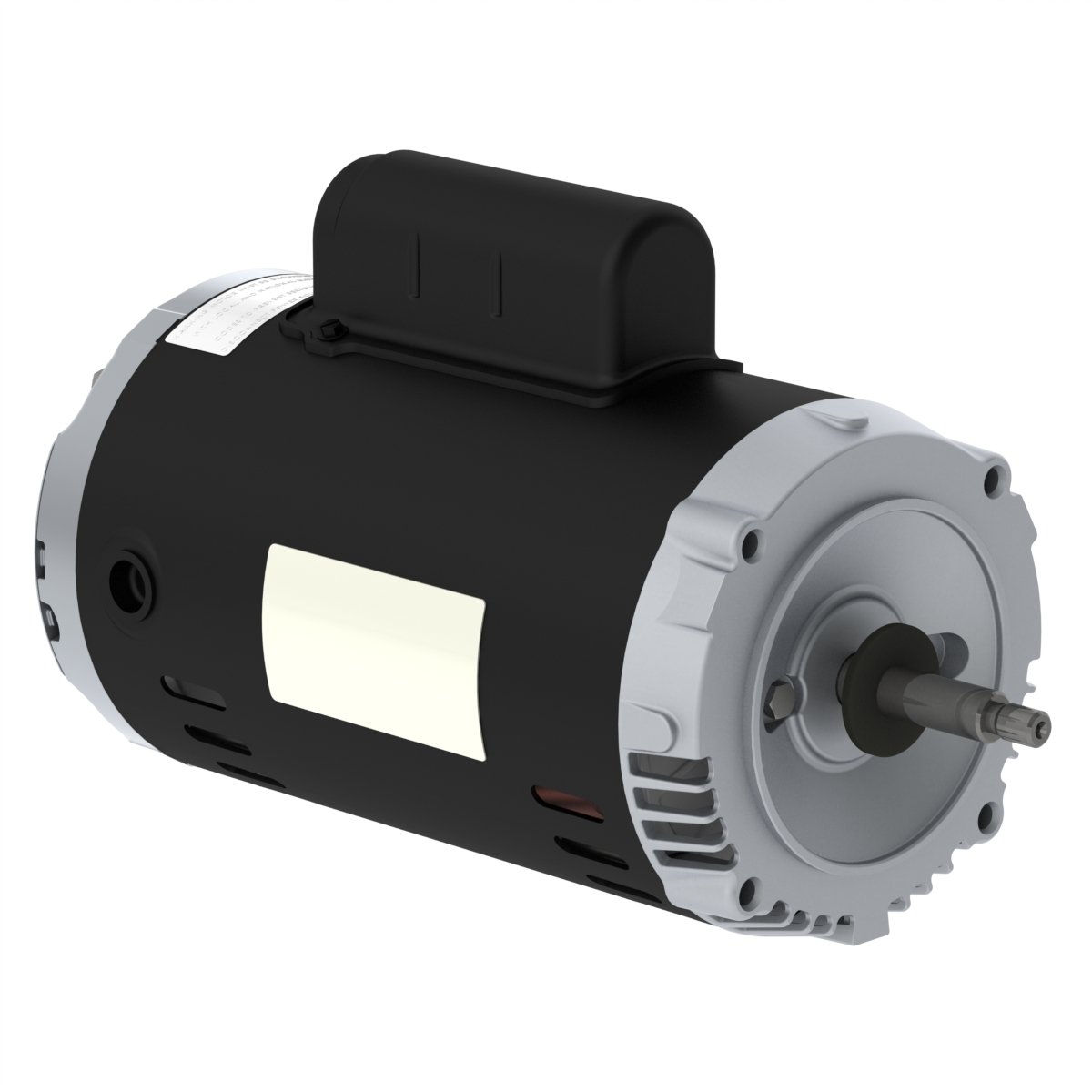

00156OS1BJPR56J-S WEG 1.5HP Jet Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00156OS1BJPR56J-S

00156OS1BJPR56J-S WEG 1.5HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156OS1BJPR56J-S

Selected accessories will also be added to cart
$339.98 / Each
Quantity:
IC01 - ODP, 56J Frame, 115/208-230VAC Single Phase 60Hz, 13665158, J-Type, Footless, Rolled Steel, Standard Efficiency

Electric Motors

Frame56J
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current17.3/9.51-8.63 A
L. R. Amperes126/69.4-63.0 A
LRC7.3x(Code L)
No load current11.0/4.74-5.50 A
Rated torque2.22 ft.lb
Locked rotor torque250 %
Breakdown torque270 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0589 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.30 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²58.0 dB(A)
Approx. weight³31.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
65.070.072.0

Power factor

50%75%100%
0.570.690.77

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 304 Stainless Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodWithout Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Frame
56J
Horsepower
1.5HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
