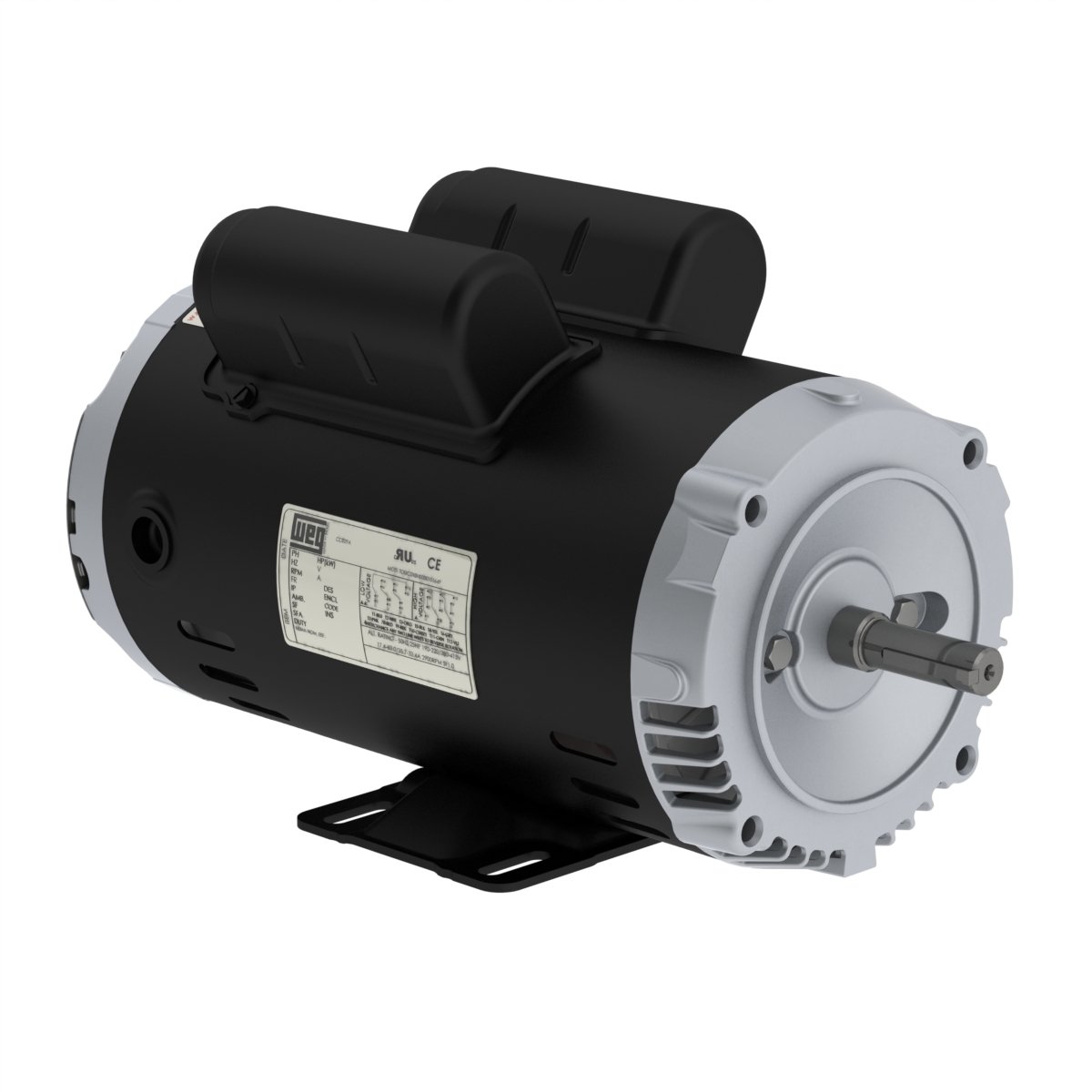

00156OT1B56C-S WEG 1.5HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00156OT1B56C-S

00156OT1B56C-S WEG 1.5HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00156OT1B56C-S

Selected accessories will also be added to cart
$374.69 / Each
Quantity:
IC01 - ODP, 56C Frame, 115/208-230VAC Single Phase 60Hz, 13247943, C-Face, Foot Mounted, Rolled Steel, 5/8" Shaft
Frame56C
Output1.5 HP (1.1 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current13.3/6.90-6.65 A
L. R. Amperes102/53.1-51.2 A
LRC7.7x(Code J)
No load current3.20/1.38-1.60 A
Rated torque2.22 ft.lb
Locked rotor torque260 %
Breakdown torque270 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)0.0629 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Approx. weight³36.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
73.079.081.5

Power factor

50%75%100%
0.880.890.89
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Frame
56C
Enclosure
ODP
Horsepower
1.5HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
