00158ET3E145TC-W22 WEG 1.5HP Severe Duty Electric Motor, 1800RPM

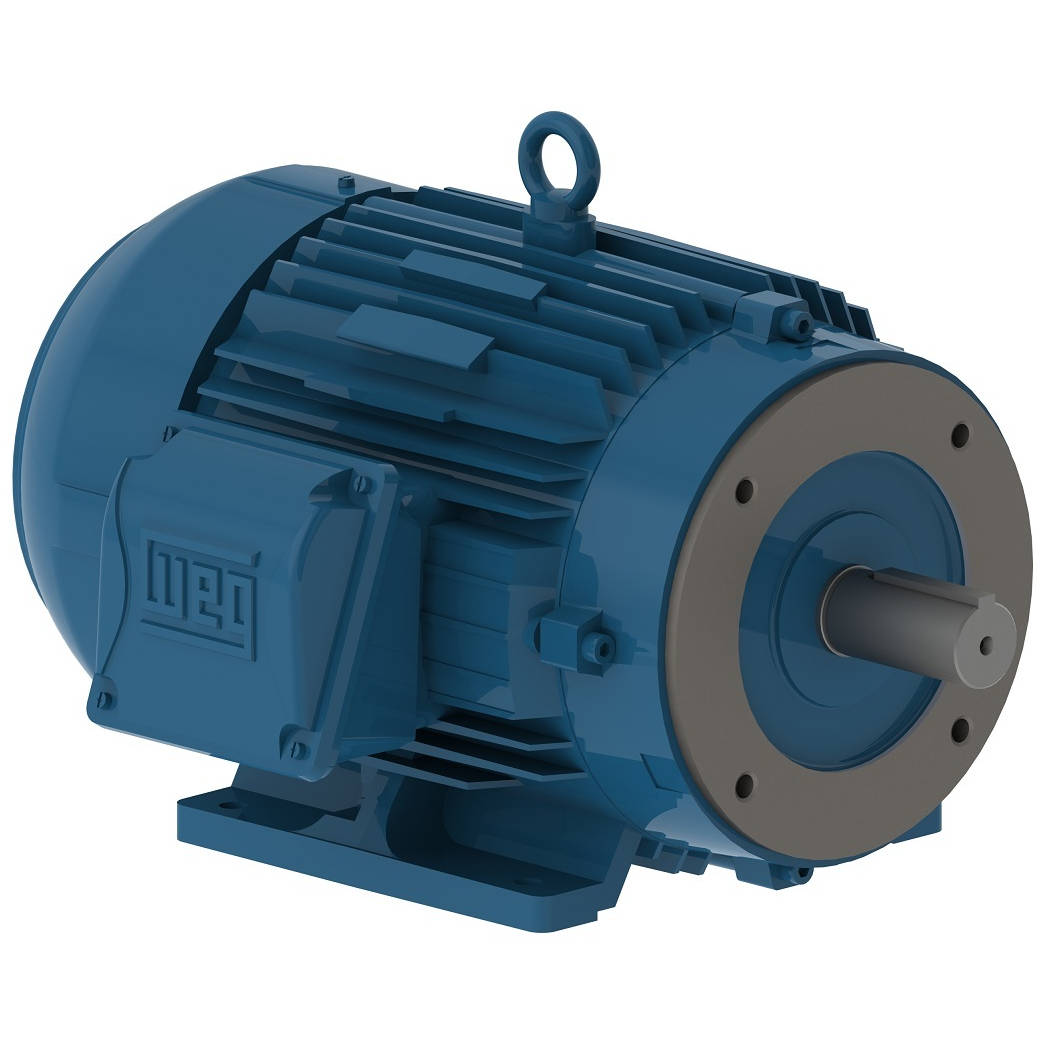

Enlarge Photo

Product ID: 00158ET3E145TC-W22

00158ET3E145TC-W22 WEG 1.5HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ET3E145TC-W22

Selected accessories will also be added to cart
$515.31 / Each
Quantity:
IC411 - TEFC, IP55, 145TC Frame, 208-230/460V 3-Phase 60Hz, C-Face, Foot Mount, NEMA Premium Efficiency, 11610562

Electric Motors

Frame145TC
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency60 Hz
Rated speed1755 rpm
Slip2.50 %
Rated voltage208-230/460 V
Rated current4.36-4.04/2.02 A
L. R. Amperes36.6-33.9/17.0 A
LRC8.4x(Code L)
No load current1.90-2.20/1.10 A
Rated torque4.43 ft.lb
Locked rotor torque290 %
Breakdown torque350 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)0.1431 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?51.0 dB(A)
Approx. weight?52.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  85.5  86.5

Power factor

50%75%100%
0.60  0.70  0.79
Frame145TC
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency50 Hz
Rated speed1440 rpm
Slip4.00 %
Rated voltage380 V
Rated current2.42 A
L. R. Amperes15.5 A
LRC6.4x(Code H)
No load current1.10 A
Rated torque5.40 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)0.1431 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?52.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  84.0  84.1

Power factor

50%75%100%
0.67  0.76  0.82
Frame145TC
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency50 Hz
Rated speed1445 rpm
Slip3.67 %
Rated voltage400 V
Rated current2.33 A
L. R. Amperes16.3 A
LRC7.0x(Code J)
No load current1.20 A
Rated torque5.38 ft.lb
Locked rotor torque250 %
Breakdown torque290 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)0.1431 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?52.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  84.0  84.1

Power factor

50%75%100%
0.63  0.74  0.81
Frame145TC
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency50 Hz
Rated speed1450 rpm
Slip3.33 %
Rated voltage415 V
Rated current2.30 A
L. R. Amperes17.0 A
LRC7.4x(Code K)
No load current1.30 A
Rated torque5.36 ft.lb
Locked rotor torque280 %
Breakdown torque320 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)0.1431 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?52.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
81.0  84.0  84.1

Power factor

50%75%100%
0.60  0.70  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Enclosure
TEFC
Horsepower
1.5HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
145TC
