/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, TEFC/Foot Mount/00158ES1B56-S WEG 1.5HP General Purpose Electric Motor, 1800RPM

Product ID: 00158ES1B56-S

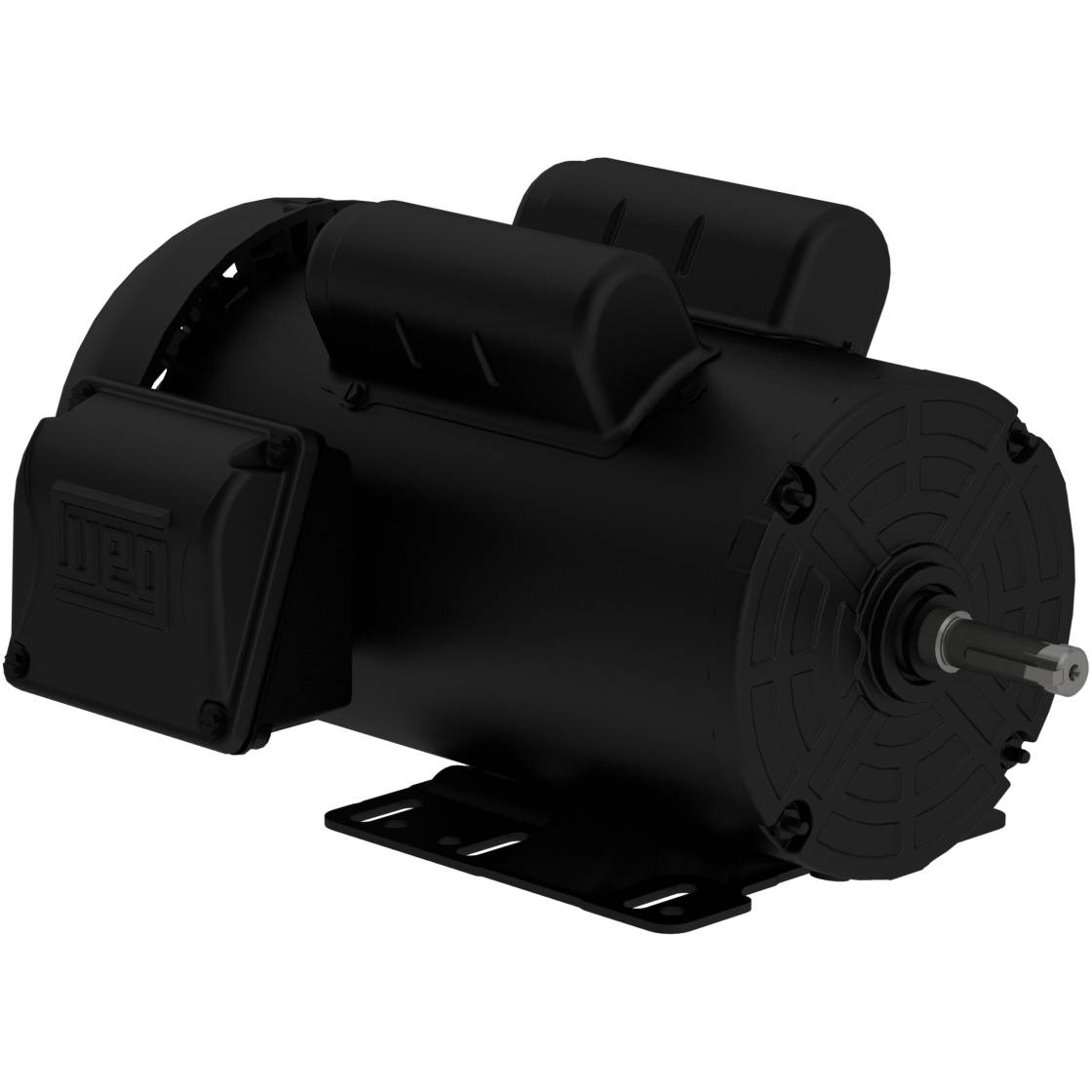

00158ES1B56-S WEG 1.5HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ES1B56-S

Selected accessories will also be added to cart

$405.84 / Each

Quantity:

IC411 - TEFC, IP55, 56H Frame, 115/208-230VAC Single Phase 60Hz, 13356870, 14798928, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame	56H
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1745 rpm
Slip	3.06 %
Rated voltage	115/208-230 V
Rated current	15.0/8.27-7.48 A
L. R. Amperes	120/66.2-59.8 A
LRC	8.0x(Code L)
No load current	7.80/3.36-3.90 A
Rated torque	4.45 ft.lb
Locked rotor torque	250 %
Breakdown torque	270 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	0.1426 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	54.0 dB(A)
Approx. weightÂ³	47.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
69.0	75.0	77.0

Power factor

50%	75%	100%
0.68	0.78	0.83

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without

6204ZZC3 Koyo Ball Bearing, Shielded

6204ZZC3 Koyo Ball Bearing, Shielded

6204-ZZC3, 20mm x 47mm x 14mm
Available Stock: 12

MFG: JTEKT Corporation

6204-ZZC3

$8.94 / Each

Type

Electric Motor

Input Phase

Single Phase

Speed

1800RPM

Frame

56H

Enclosure

TEFC

Horsepower

1.5HP

Input Voltage

230VAC

Input Voltage

208VAC

Input Voltage

115VAC
