/Products/Electric Motors/3 Phase Metric/WEG 3-Phase Metric Electric Motors/00158ET3HAL90L-W22 WEG 2HP Aluminum Frame Electric Motor, 1800RPM

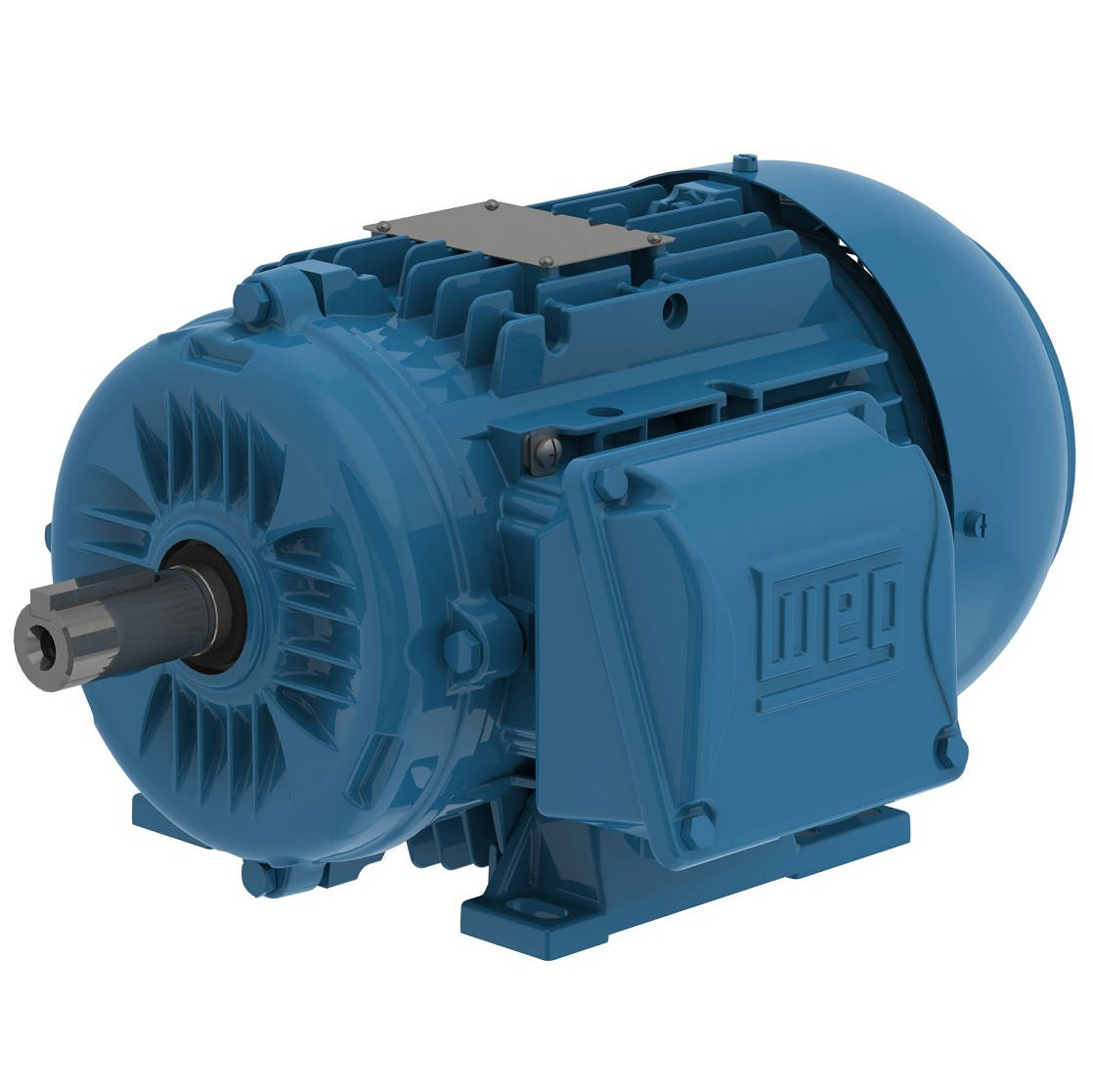

00158ET3HAL90L-W22 WEG 2HP Aluminum Frame Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00158ET3HAL90L-W22

00158ET3HAL90L-W22 WEG 2HP Aluminum Frame Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00158ET3HAL90L-W22

Selected accessories will also be added to cart
$466.36 / Each
Quantity:
IC411 - TEFC, IP55, 90S/90L Frame, 575VAC 60Hz 3 Phase, 13984845, Multi-Mounting

Electric Motors

Frame90S/L
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1755 rpm
Slip2.50 %
Rated voltage575 V
Rated current2.26 A
L. R. Amperes18.8 A
LRC8.3
No load current1.24 A
Rated torque5.98 ft.lb
Locked rotor torque300 %
Breakdown torque350 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)0.1566 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleS1
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingB3L(E)
Rotation¹Both (CW and CCW)
Noise level²49.0 dB(A)
Approx. weight³43.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5 85.5 86.5

Power factor

50%75%100%
0.55 0.68 0.77

Features

Frame MaterialAluminum
Impregnation MethodDip and Bake Polyester
Main terminal box hole2xM25x1,5
Terminal BlockBMC - 6 pins
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Connection Cables Quantity6
Type
Electric Motor
Speed
1800RPM
Horsepower
2HP
Input Phase
3-Phase
Enclosure
TEFC
Input Voltage
575VAC
Frame
90S/90L
