Motor/Control Division

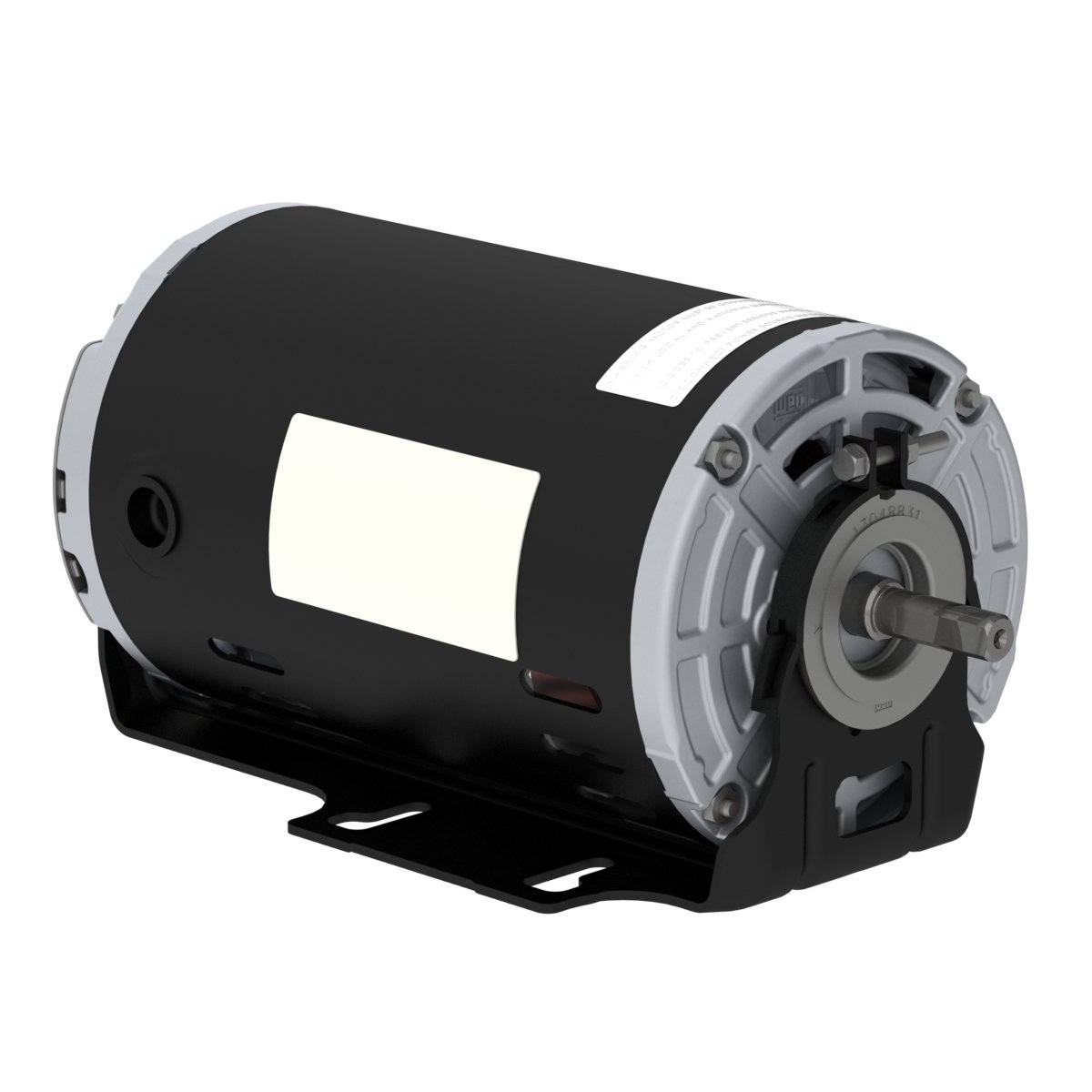

Frame	56H
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	4.64-4.20/2.10 A
L. R. Amperes	40.9-37.0/18.5 A
LRC	8.8x(Code L)
No load current	2.24-2.60/1.30 A
Rated torque	4.42 ft.lb
Locked rotor torque	290 %
Breakdown torque	350 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.1296 sq.ft.lb
Design	A
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	52.0 dB(A)
Approx. weight?	40.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	85.5	86.5

Power factor

50%	75%	100%
0.53	0.66	0.76

Frame	56H
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	190/380 V
Rated current	4.94/2.47 A
L. R. Amperes	33.6/16.8 A
LRC	6.8x(Code J)
No load current	2.61/1.30 A
Rated torque	5.38 ft.lb
Locked rotor torque	220 %
Breakdown torque	280 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1296 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	40.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.7	84.7	83.6

Power factor

50%	75%	100%
0.61	0.74	0.81

Frame	56H
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	220/415 V
Rated current	4.51/2.39 A
L. R. Amperes	35.2/18.6 A
LRC	7.8x(Code K)
No load current	2.91/1.54 A
Rated torque	5.34 ft.lb
Locked rotor torque	280 %
Breakdown torque	340 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.1296 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	40.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.6	84.0	84.2

Power factor

50%	75%	100%
0.53	0.67	0.76

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
