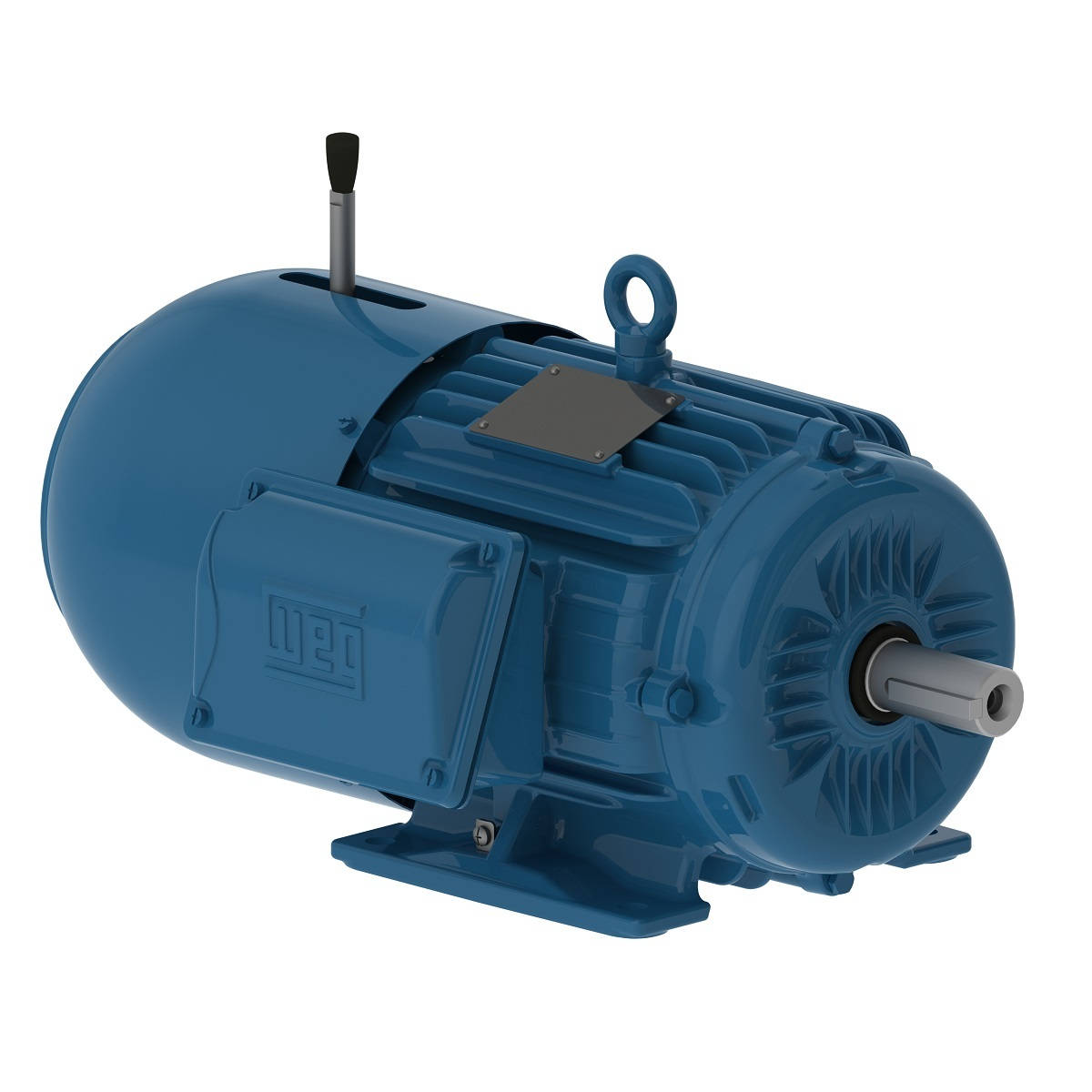

00209ET3EBM213T-W22 WEG 2HP Electric Brake Motor, 900RPM
Enlarge Photo

Product ID: 00209ET3EBM213T-W22

00209ET3EBM213T-W22 WEG 2HP Electric Brake Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00209ET3EBM213T-W22

Selected accessories will also be added to cart
$2,977.05 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 230/460VAC 60Hz 3 Phase, 13474022, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output2 HP (1.5 kW)
Number of Poles8
Frequency60 Hz
Rated speed875 rpm
Slip2.78 %
Rated voltage230/460 V
Rated current6.78/3.39 A
L. R. Amperes51.5/25.7 A
LRC7.6x(Code M)
No load current4.60/2.30 A
Rated torque12.0 ft.lb
Locked rotor torque240 %
Breakdown torque290 %
Locked rotor time70s (cold) 39s (hot)
Moment of inertia (J)1.79 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?52.0 dB(A)
Approx. weight?192 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  84.0  85.5

Power factor

50%75%100%
0.45  0.55  0.65

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Brake TypeWEG - 125.0 Nm
Brake input Voltage220-240 V
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Horsepower
2HP
Enclosure
TEFC
Speed
900RPM
Input Voltage
230VAC
Input Voltage
460VAC
Frame
213T
Frame
215T
