Motor/Control Division

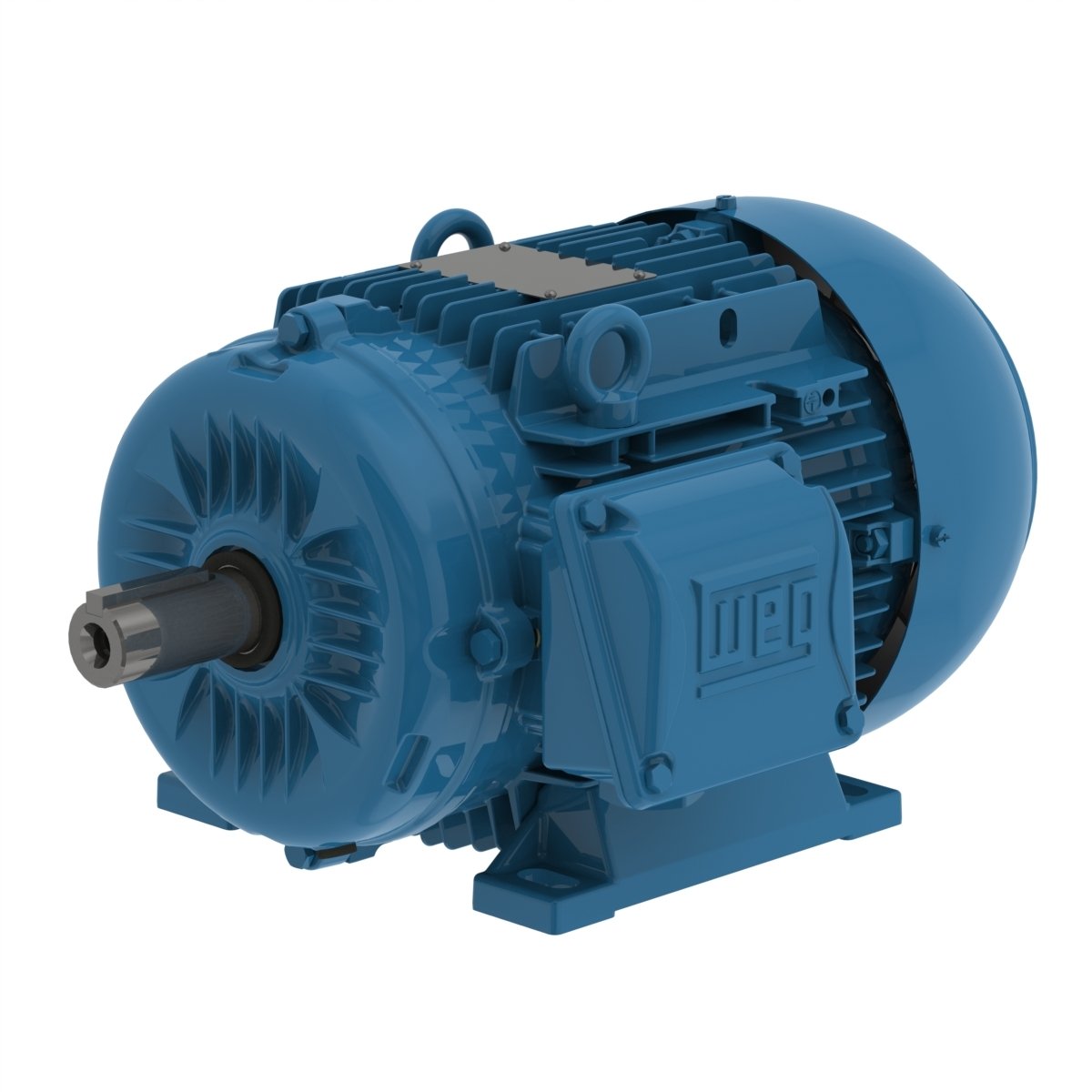

Frame	132S
Output	3 HP (2.2 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	710 rpm
Slip	5.33 %
Rated voltage	380 V
Rated current	5.52 A
L. R. Amperes	34.2 A
LRC	6.2
No load current	2.90 A
Rated torque	21.9 ft.lb
Locked rotor torque	190 %
Breakdown torque	210 %
Locked rotor time	48s (cold) 27s (hot)

Moment of inertia (J)	1.64 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	48.0 dB(A)
Approx. weightÂ³	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.0	81.5	81.9

Power factor

50%	75%	100%
0.54	0.67	0.74

Frame	132S
Output	3 HP (2.2 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	400 V
Rated current	5.34 A
L. R. Amperes	34.2 A
LRC	6.4
No load current	3.20 A
Rated torque	21.7 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	48s (cold) 27s (hot)

Moment of inertia (J)	1.64 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	48.0 dB(A)
Approx. weightÂ³	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.0	82.6	82.6

Power factor

50%	75%	100%
0.51	0.65	0.72

Frame	132S
Output	3 HP (2.2 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	5.27 A
L. R. Amperes	34.8 A
LRC	6.6
No load current	3.40 A
Rated torque	21.6 ft.lb
Locked rotor torque	260 %
Breakdown torque	280 %
Locked rotor time	48s (cold) 27s (hot)

Moment of inertia (J)	1.64 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	48.0 dB(A)
Approx. weightÂ³	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.2	82.3	82.9

Power factor

50%	75%	100%
0.48	0.62	0.70

Frame	132S
Output	3 HP (2.2 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	870 rpm
Slip	3.33 %
Rated voltage	460 V
Rated current	4.75 A
L. R. Amperes	35.1 A
LRC	7.4
No load current	3.00 A
Rated torque	17.9 ft.lb
Locked rotor torque	250 %
Breakdown torque	290 %
Locked rotor time	57s (cold) 32s (hot)

Moment of inertia (J)	1.64 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	52.0 dB(A)
Approx. weightÂ³	135 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.0	84.0	85.5

Power factor

50%	75%	100%
0.47	0.60	0.68

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
