/Products/Electric Motors/Single Phase Electric Motors/WEG Single Phase Electric Motors/Farm Duty - Poultry Fan/00218AS1BPF145T-S WEG 2HP Farm Duty Poultry Fan Electric Motor, 1800RPM
Click Image to Expand

Product ID: 00218AS1BPF145T-S

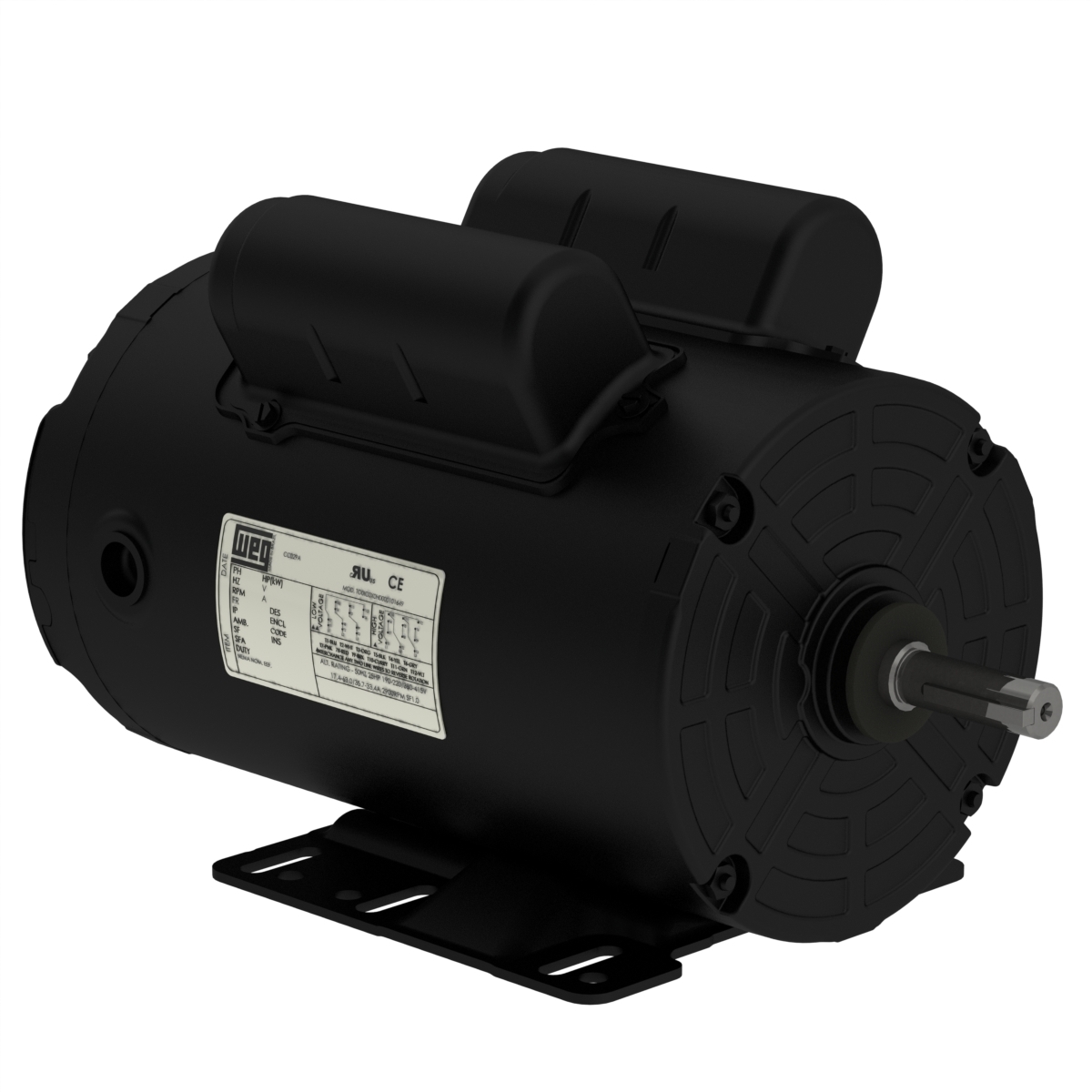

00218AS1BPF145T-S WEG 2HP Farm Duty Poultry Fan Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218AS1BPF145T-S

Selected accessories will also be added to cart
$487.72 / Each
Quantity:
TENV, 56 Frame, 115/208-230VAC 60Hz Single Phase, Resilient Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Capacitor start/capacitor run design for reduced amperage
  • Designed for 50 Hz operation
  • Fully Gasketed
  • Shaft ext 3-13/16" L by 5/8" dia., 3.5" keyway

General Specifications

UPC:722856028143Weight:49.00 LB
Packaged Length:15.14 INPackaged Width:10.19 IN
Packaged Height:9.5 IN

Nameplate Specifications

Output HP:1.5 HpOutput KW:1.1 kW
Frequency:60 HzVoltage:115/208-230 V
Current:14.0,7.2-7.0 ASpeed:1725 rpm
Service Factor:1.3Phase:1
Efficiency:78.5 %Power Factor:0
Duty:ContinuousInsulation Class:B
KVA Code:KFrame:56
Enclosure:Totally Enclosed Non VentilatedThermal Protection:AUTO
Ambient Temperature:40 ?CDrive End Bearing Size:6203
Opp Drive End Bearing Size:6203UL:Recognized
CSA:YesCE:N

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:SM
Poles:4Rotation:Counterclockwise/Clockwise
Mounting:Resilient BaseMotor Orientation:ANY
Drive End Bearing:BALLOpp Drive End Bearing:BALL
Frame Material:Rolled SteelOverall Length:13.96 in
Frame Length:9.63 inShaft Diameter:0.63 in
Shaft Extension:1.88 in
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Horsepower
2HP
Enclosure
TEAO
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Application
Poultry Fan
Frame
145T
