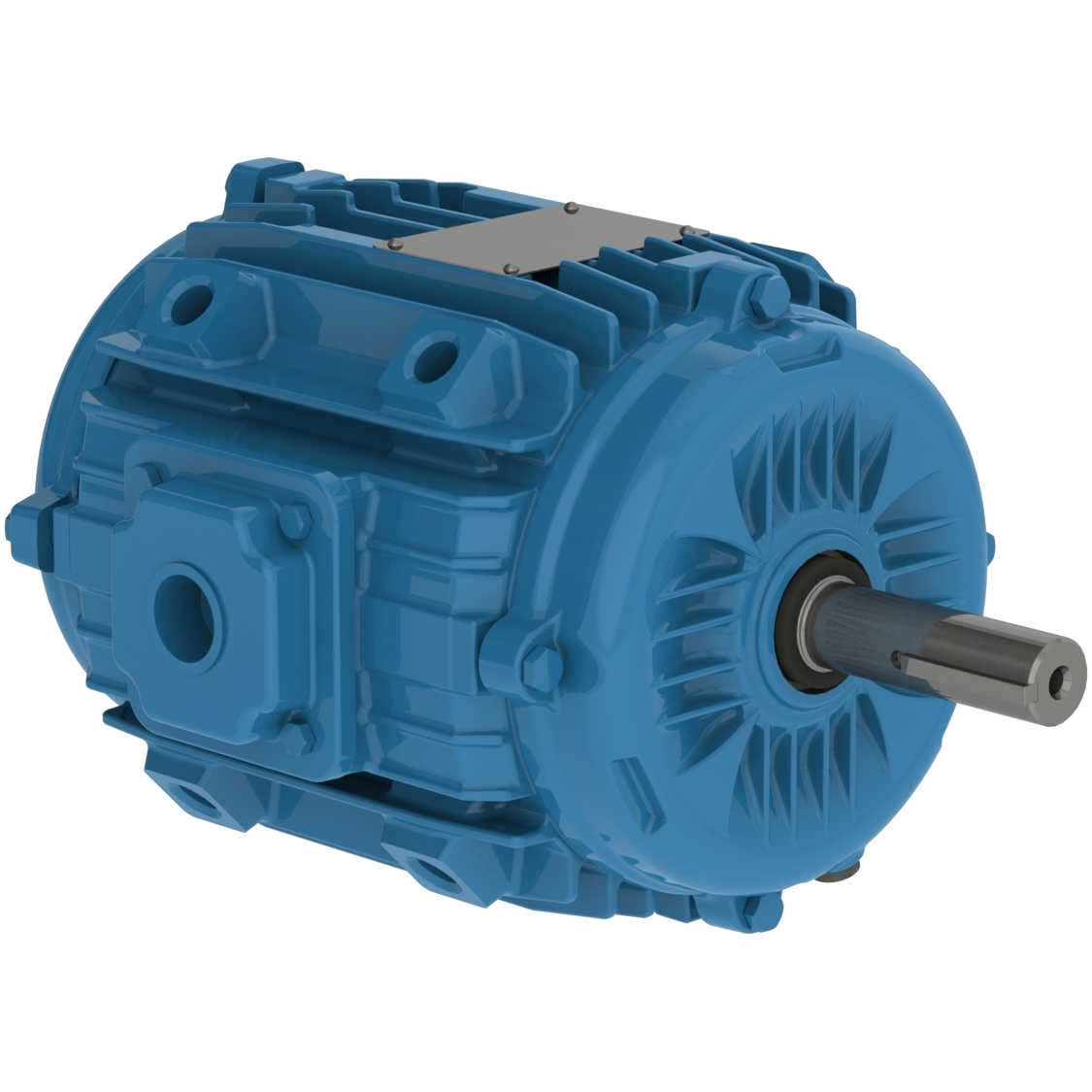

00218ET3EPM143/5Y-W22 WEG 2HP Pad Mount Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218ET3EPM143/5Y-W2

00218ET3EPM143/5Y-W22 WEG 2HP Pad Mount Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ET3EPM143/5Y-W2

Selected accessories will also be added to cart
$609.65 / Each
Quantity:
IC410 - TEAO, IP55, 145YZ Frame, 208-230/460VAC 60Hz 3 Phase, 13629665, NEMA Premium Efficiency, Pad Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame145YZ
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1755 rpm
Slip2.50 %
Rated voltage208-230/460 V
Rated current6.09-5.51/2.76 A
L. R. Amperes50.5-45.7/22.9 A
LRC8.3x(Code L)
No load current2.81-3.26/1.63 A
Rated torque5.98 ft.lb
Locked rotor torque270 %
Breakdown torque320 %
Locked rotor time19s (cold) 11s (hot)
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?50.7 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  86.5  86.5

Power factor

50%75%100%
0.57  0.70  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
2HP
Enclosure
TEAO
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
145YZ
