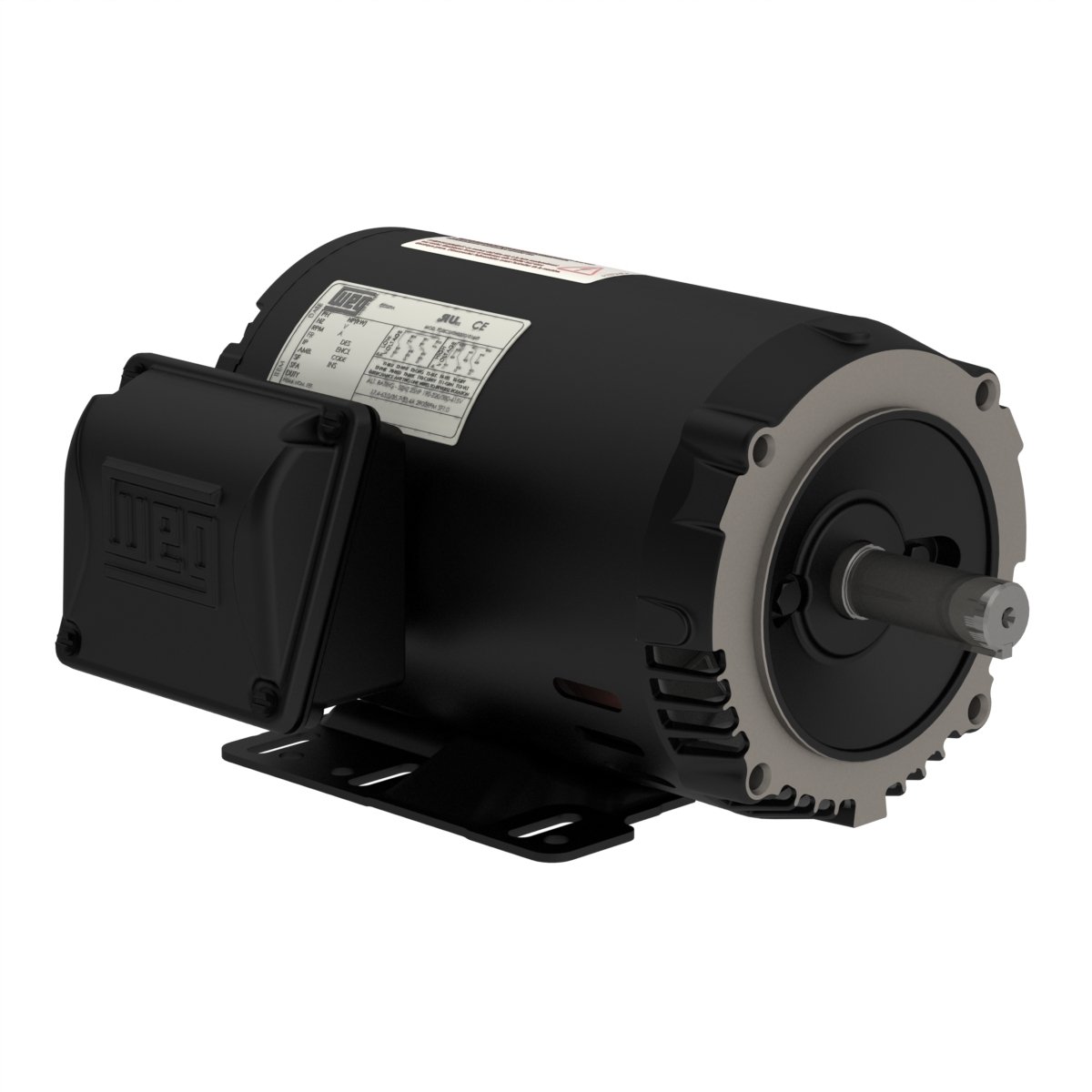

00218OT3V145TC-S WEG 2HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218OT3V145TC-S

00218OT3V145TC-S WEG 2HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218OT3V145TC-S

Selected accessories will also be added to cart
$468.14 / Each
Quantity:
IC01 - ODP, 143TC/145TC Frame, 200/400VAC 3-Phase 60Hz, 12845388, C-Face, Foot Mount, Rolled Steel, Premium Efficiency, 7/8" Keyed Shaft

Electric Motors

Frame143/5TC
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1740 rpm
Slip3.33 %
Rated voltage200/400 V
Rated current6.19/3.09 A
L. R. Amperes47.6/23.8 A
LRC7.7x(Code K)
No load current3.16/1.58 A
Rated torque5.96 ft.lb
Locked rotor torque260 %
Breakdown torque320 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)0.1168 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?52.0 dB(A)
Approx. weight?40.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  86.5  86.5

Power factor

50%75%100%
0.61  0.74  0.81

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
2HP
Enclosure
ODP
Input Voltage
200VAC
Input Voltage
400VAC
Frame
143TC
Frame
145TC
