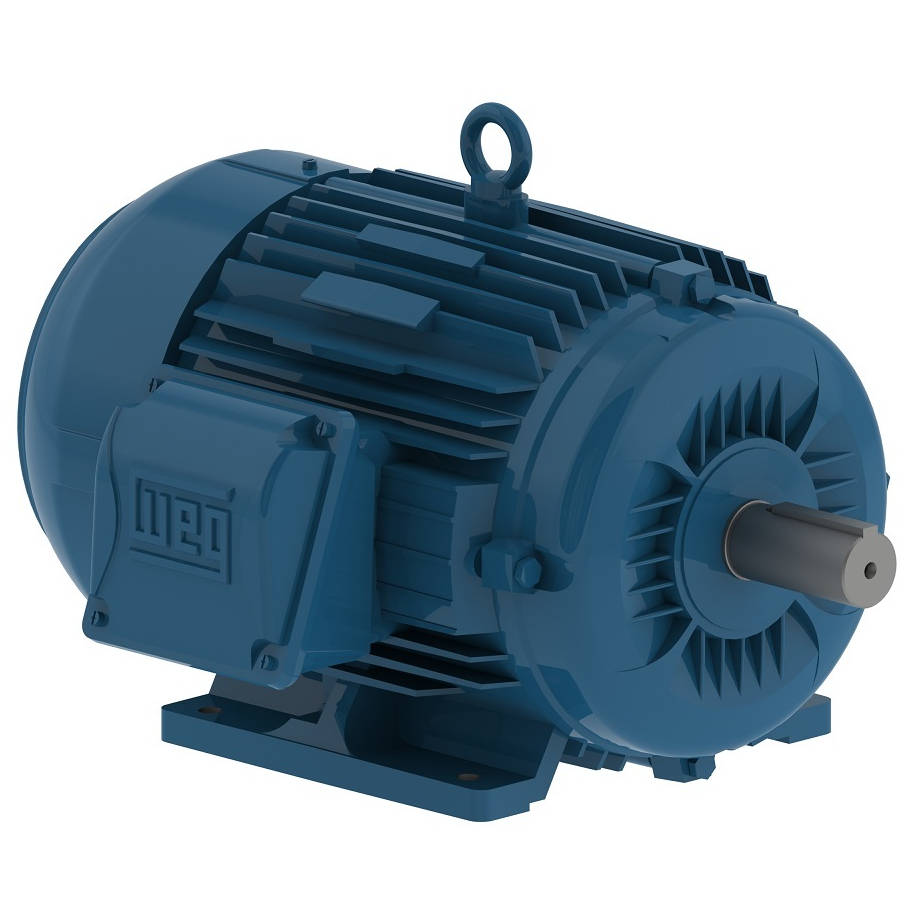

00218ET3E145T-W22 WEG 2HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218ET3E145T-W22

00218ET3E145T-W22 WEG 2HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ET3E145T-W22

Selected accessories will also be added to cart
$544.68 / Each
Quantity:
IC411-TEFC, IP55, 143T/145T Frame, 208-230/460VAC 60Hz 3 Phase, 11416577, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft, NEMA Premium Efficiency

Electric Motors

Frame143/5T
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1755 rpm
Slip2.50 %
Rated voltage208-230/460 V
Rated current5.85-5.52/2.76 A
L. R. Amperes46.8-44.2/22.1 A
No load current2.81-3.26/1.63 A
Rated torque5.90 ft.lb
Locked rotor torque270 %
Breakdown torque320 %
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?51.0 dB(A)
Approx. weight?50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  86.5  86.5

Power factor

50%75%100%
0.57  0.70  0.79
Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency50 Hz
Rated speed1460 rpm
Slip2.67 %
Rated voltage380 V
Rated current2.54 A
L. R. Amperes19.3 A
No load current1.48 A
Rated torque5.32 ft.lb
Locked rotor torque270 %
Breakdown torque320 %
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  84.2  84.5

Power factor

50%75%100%
0.55  0.69  0.78
Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency50 Hz
Rated speed1465 rpm
Slip2.33 %
Rated voltage400 V
Rated current2.51 A
L. R. Amperes20.6 A
No load current1.63 A
Rated torque5.30 ft.lb
Locked rotor torque300 %
Breakdown torque360 %
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.0  83.5  84.5

Power factor

50%75%100%
0.50  0.65  0.75
Frame143/5T
Output1.5 HP (1.1 kW)
Number of Poles4
Frequency50 Hz
Rated speed1465 rpm
Slip2.33 %
Rated voltage415 V
Rated current2.56 A
L. R. Amperes21.5 A
No load current1.75 A
Rated torque5.30 ft.lb
Locked rotor torque330 %
Breakdown torque390 %
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
81.4  83.1  84.1

Power factor

50%75%100%
0.47  0.61  0.71
Frame143/5T
Output2 HP (1.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1435 rpm
Slip4.33 %
Rated voltage380 V
Rated current3.25 A
L. R. Amperes19.5 A
No load current1.48 A
Rated torque7.22 ft.lb
Locked rotor torque190 %
Breakdown torque220 %
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  84.0  82.5

Power factor

50%75%100%
0.69  0.80  0.85
Frame143/5T
Output2 HP (1.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1440 rpm
Slip4.00 %
Rated voltage400 V
Rated current3.11 A
L. R. Amperes20.5 A
No load current1.63 A
Rated torque7.20 ft.lb
Locked rotor torque210 %
Breakdown torque250 %
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  84.0  84.0

Power factor

50%75%100%
0.65  0.77  0.83
Frame143/5T
Output2 HP (1.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1450 rpm
Slip3.33 %
Rated voltage415 V
Rated current3.07 A
L. R. Amperes21.5 A
No load current1.75 A
Rated torque7.15 ft.lb
Locked rotor torque229 %
Breakdown torque270 %
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  84.0  84.0

Power factor

50%75%100%
0.62  0.74  0.81

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)


Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout

Bearing details

 Drive EndNon Drive End
Bearing type6205 ZZ  6204 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
145 lb 195 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Horsepower
2HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
143T
Frame
145T
