00218ET3EBM145T-W22 WEG 2HP Electric Brake Motor, 1800RPM

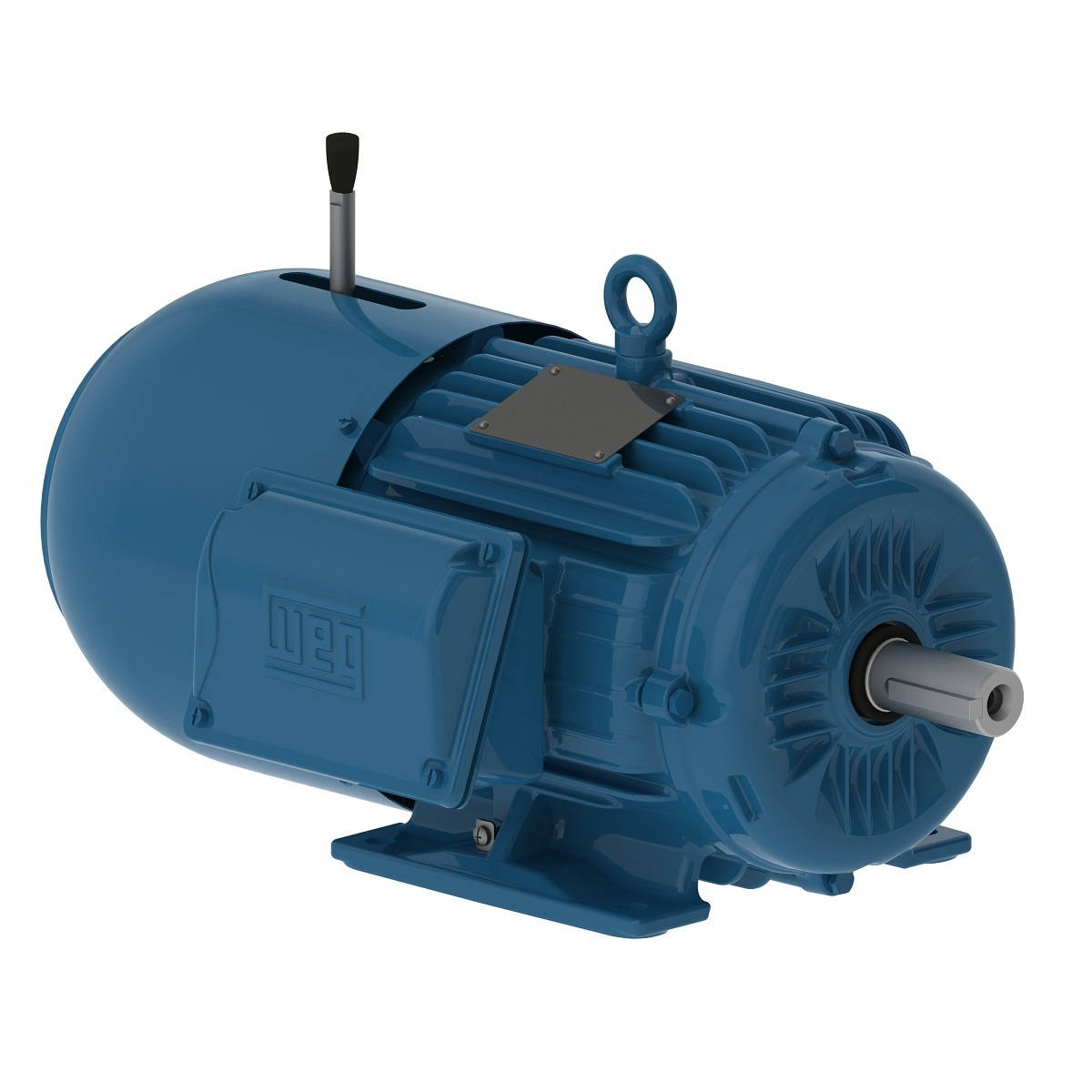

Enlarge Photo

Product ID: 00218ET3EBM145T-W22

00218ET3EBM145T-W22 WEG 2HP Electric Brake Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ET3EBM145T-W22

Selected accessories will also be added to cart
$1,418.66 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 230/460VAC 60Hz 3 Phase, 13467601, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame143/5T
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage230/460 V
Rated current5.52/2.76 A
L. R. Amperes45.8/22.9 A
LRC8.3x(Code L)
No load current3.26/1.63 A
Rated torque6.00 ft.lb
Locked rotor torque270 %
Breakdown torque320 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)0.1561 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?51.0 dB(A)
Approx. weight?60.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  86.5  86.5

Power factor

50%75%100%
0.57  0.70  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Brake TypeWEG - 16.0 Nm
Brake input Voltage220-240 V
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
2HP
Enclosure
TEFC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
143T
Frame
145T
