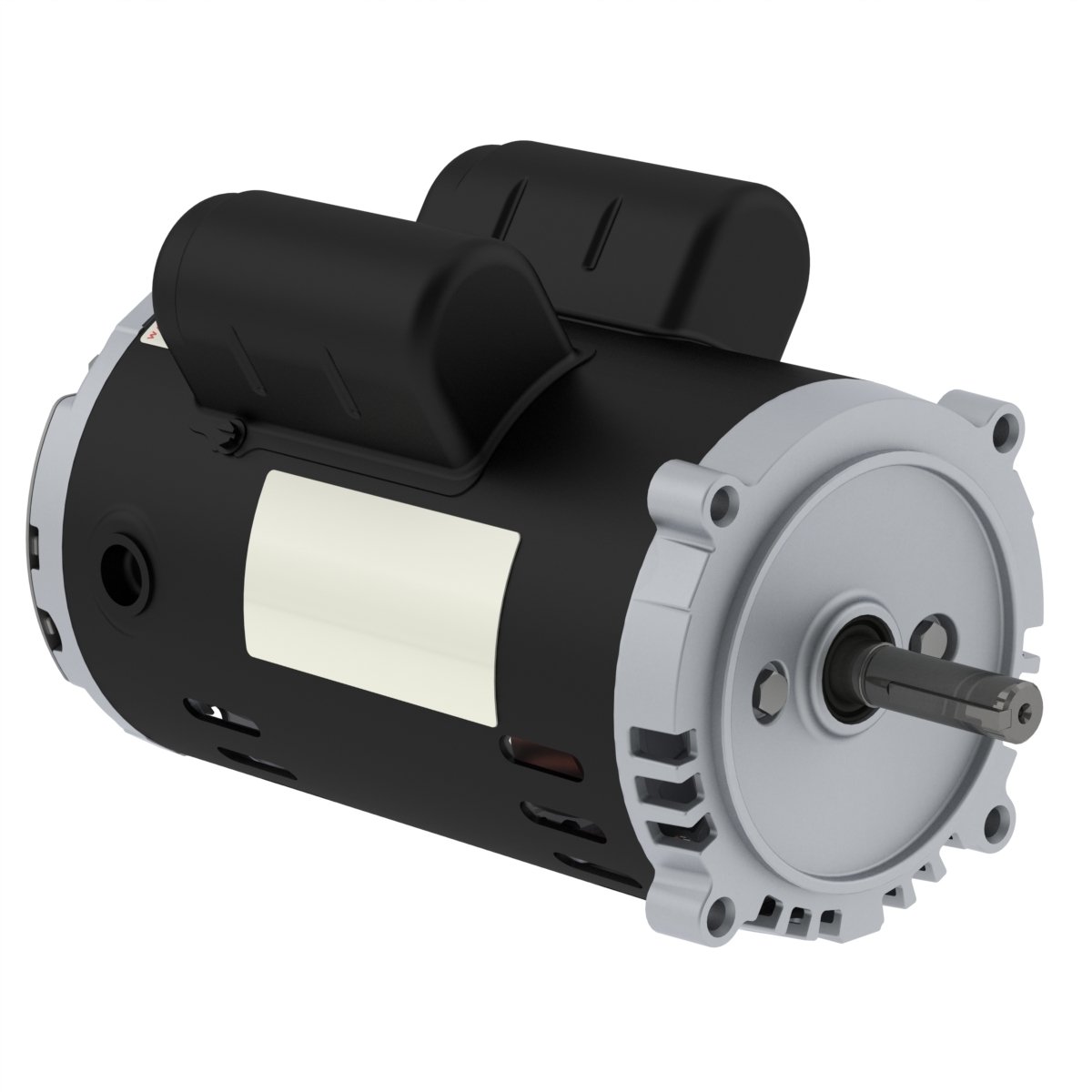

00218OT1B56CFL-S WEG 2HP Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218OT1B56CFL-S

00218OT1B56CFL-S WEG 2HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218OT1B56CFL-S

Selected accessories will also be added to cart
$582.06 / Each
Quantity:
IC01 - ODP, 56C Frame, 115/208-230VAC Single Phase 60Hz, 14534044, C-Face, Footless, Rolled Steel, 5/8" Shaft

Electric Motors

Frame56C
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1730 rpm
Slip3.89 %
Rated voltage115/208-230 V
Rated current17.7/9.50-8.87 A
L. R. Amperes115/61.7-57.7 A
LRC6.5x(Code H)
No load current6.20/2.67-3.10 A
Rated torque5.99 ft.lb
Locked rotor torque290 %
Breakdown torque225 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.1614 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Approx. weight³53.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
83.084.084.5

Power factor

50%75%100%
0.750.830.87

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Frame
56C
Enclosure
ODP
Horsepower
2HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
