/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/Foot Mount/00218OT1BO56Z-S WEG 2HP General Purpose Electric Motor, 1800RPM

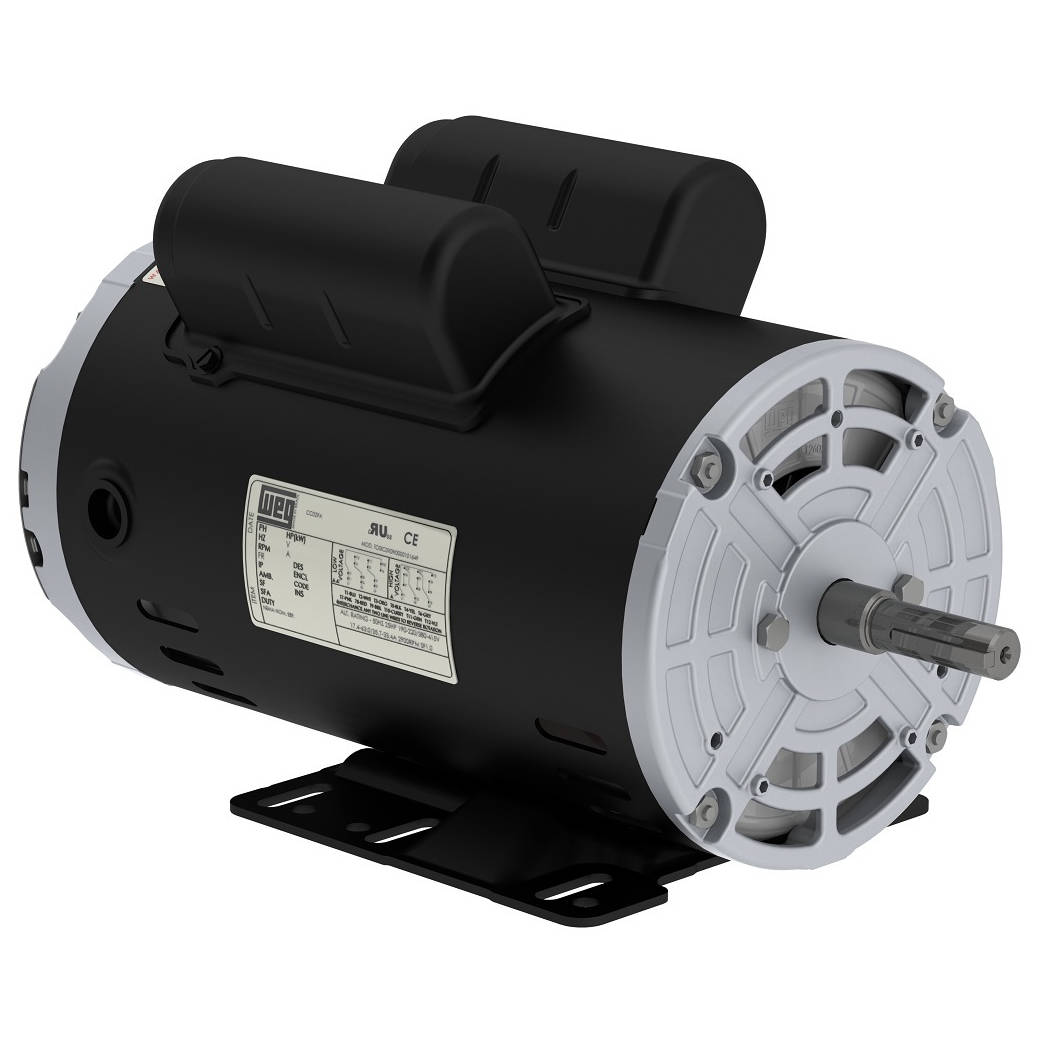

00218OT1BO56Z-S WEG 2HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00218OT1BO56Z-S

00218OT1BO56Z-S WEG 2HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218OT1BO56Z-S

Available Stock: 2
Selected accessories will also be added to cart
$491.28 / Each
Quantity:
IC01 - ODP, 56HZ Frame, 115/208-230VAC 60Hz Single Phase, 14201788, Rolled Steel, Foot Mounted, 7/8" Keyed Shaft

Electric Motors

Frame56HZ
Output2 HP (1.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1730 rpm
Slip3.89 %
Rated voltage115/208-230 V
Rated current17.7/9.50-8.87 A
L. R. Amperes115/61.7-57.7 A
LRC6.5x(Code H)
No load current6.20/2.67-3.10 A
Rated torque6.07 ft.lb
Locked rotor torque290 %
Breakdown torque225 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.1614 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²52.0 dB(A)
Approx. weight³52.1 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
83.084.084.5

Power factor

50%75%100%
0.750.830.87

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Automatic
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
2HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
56HZ
