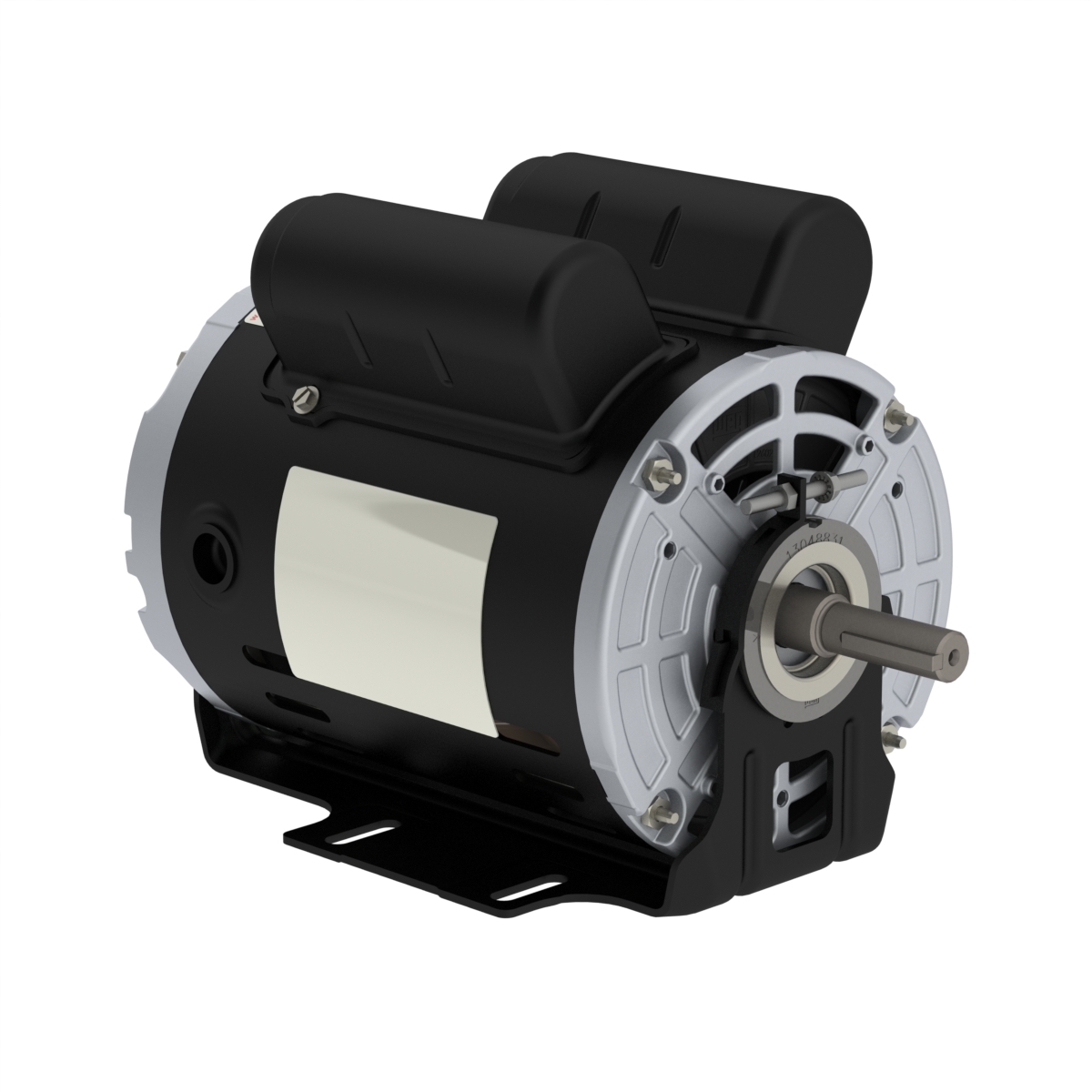

Motor/Control Division

Frame	56H
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1730 rpm
Slip	3.89 %
Rated voltage	115/208-230 V
Rated current	17.7/9.50-8.87 A
L. R. Amperes	115/61.7-57.7 A
LRC	6.5x(Code H)
No load current	6.20/2.67-3.10 A
Rated torque	5.99 ft.lb
Locked rotor torque	290 %
Breakdown torque	225 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.1614 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	52.0 dB(A)
Approx. weightÂ³	55.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.0	84.0	84.5

Power factor

50%	75%	100%
0.75	0.83	0.87

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without

Loading...

Bearing details

	Drive End	Non Drive End
Bearing type	6204 ZZ	6202 ZZ
Sealing	Sem vedaÃ§Ã£o	Without Bearing Seal
Lubrication interval	-	-
Lubricant amount	-	-
Grease Type	Mobil Polyrex EM

Foundation loads

Max. traction	Max. compression
104 lb	160 lb
