/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/IEEE 841/Footless, C-Face/00218ST3QIER145TC-W2 WEG 2HP Severe Duty Electric Motor, 1800RPM

Product ID: 00218ST3QIER145TC-W2

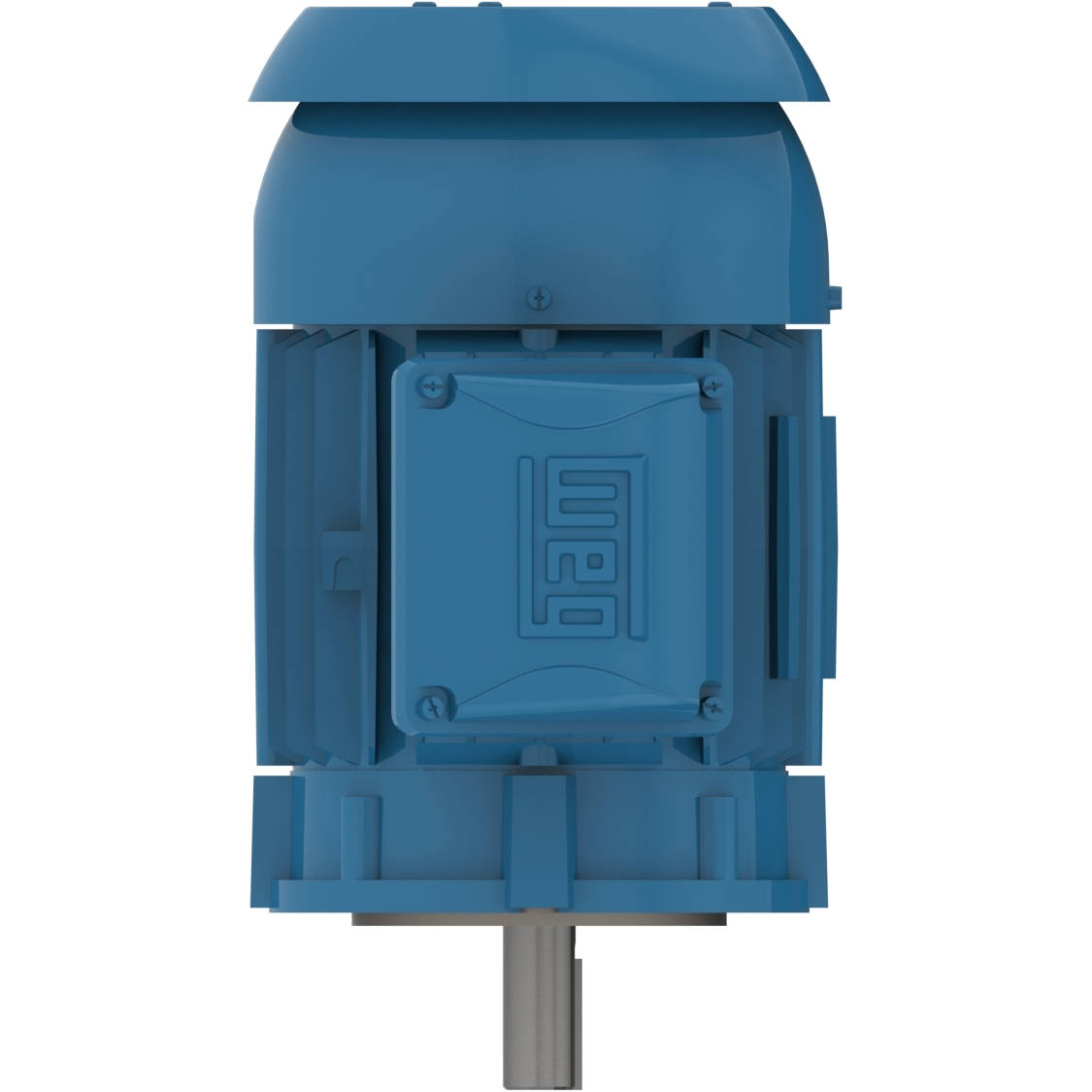

00218ST3QIER145TC-W2 WEG 2HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00218ST3QIER145TC-W2

Selected accessories will also be added to cart

$982.56 / Each

Quantity:

IC411 - TEFC, IP55, 145TC Frame, 460VAC 60Hz 3 Phase, 12822412, NEMA Premium Efficiency, Footless, C-Face, IEEE 841, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame	145TC
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1750 rpm
Slip	2.78 %
Rated voltage	460 V
Rated current	2.76 A
L. R. Amperes	22.9 A
LRC	8.3x(Code L)
No load current	1.63 A
Rated torque	6.00 ft.lb
Locked rotor torque	270 %
Breakdown torque	320 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	51.0 dB(A)
Approx. weight?	59.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	86.5

Power factor

50%	75%	100%
0.57	0.70	0.79

Frame	145TC
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	2.57 A
L. R. Amperes	21.1 A
LRC	8.2x(Code L)
No load current	1.61 A
Rated torque	5.40 ft.lb
Locked rotor torque	290 %
Breakdown torque	330 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	59.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.2	84.5

Power factor

50%	75%	100%
0.55	0.69	0.77

Frame	145TC
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	2.57 A
L. R. Amperes	22.4 A
LRC	8.7x(Code M)
No load current	1.80 A
Rated torque	5.38 ft.lb
Locked rotor torque	320 %
Breakdown torque	380 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	59.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.0	83.5	84.5

Power factor

50%	75%	100%
0.50	0.64	0.73

Frame	145TC
Output	1.5 HP (1.1 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	415 V
Rated current	2.56 A
L. R. Amperes	21.5 A
LRC	8.4x(Code M)
No load current	1.97 A
Rated torque	5.38 ft.lb
Locked rotor torque	350 %
Breakdown torque	409 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	59.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.4	83.1	84.1

Power factor

50%	75%	100%
0.47	0.61	0.71

Frame	145TC
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1435 rpm
Slip	4.33 %
Rated voltage	380 V
Rated current	3.33 A
L. R. Amperes	20.0 A
LRC	6.0x(Code H)
No load current	1.61 A
Rated torque	7.32 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	59.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	84.0	82.5

Power factor

50%	75%	100%
0.66	0.78	0.83

Frame	145TC
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1440 rpm
Slip	4.00 %
Rated voltage	400 V
Rated current	3.22 A
L. R. Amperes	21.3 A
LRC	6.6x(Code J)
No load current	1.80 A
Rated torque	7.29 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	59.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.0	84.0

Power factor

50%	75%	100%
0.62	0.74	0.80

Frame	145TC
Output	2 HP (1.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	3.14 A
L. R. Amperes	22.9 A
LRC	7.3x(Code K)
No load current	1.97 A
Rated torque	7.24 ft.lb
Locked rotor torque	250 %
Breakdown torque	290 %
Locked rotor time	21s (cold) 12s (hot)

Moment of inertia (J)	0.1561 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	59.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.0	84.0

Power factor

50%	75%	100%
0.60	0.72	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
