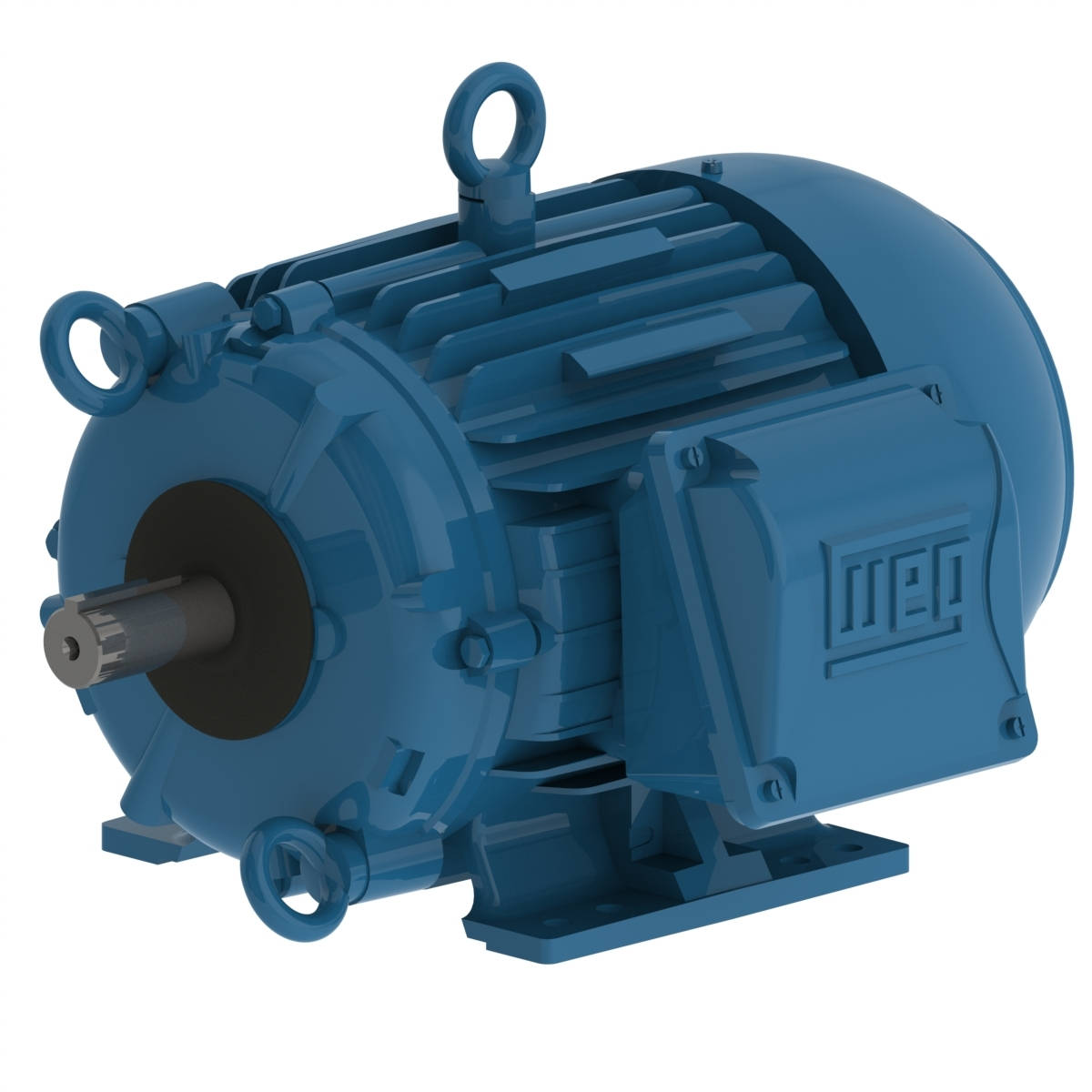

Frame	213/5T
Output	0.5 HP (0.37 kW)
Number of Poles	12/6
Frequency	60 Hz
Rated speed	575 rpm
Slip	4.17 %
Rated voltage	460 V
Rated current	1.28 A
L. R. Amperes	4.48 A
LRC	3.5x(Code J)
No load current	1.00 A
Rated torque	4.57 ft.lb
Locked rotor torque	140 %
Breakdown torque	200 %
Locked rotor time	162s (cold) 90s (hot)

Moment of inertia (J)	1.55 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	143 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
62.0	68.0	70.0

Power factor

50%	75%	100%
0.35	0.45	0.52

Frame	213/5T
Output	2 HP (1.5 kW)
Number of Poles	12/6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	460 V
Rated current	3.06 A
L. R. Amperes	27.5 A
LRC	9.0x(Code M)
No load current	1.90 A
Rated torque	8.94 ft.lb
Locked rotor torque	250 %
Breakdown torque	320 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	1.55 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation?	Both (CW and CCW)
Noise level?	55.0 dB(A)
Approx. weight?	143 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
78.5	82.5	82.0

Power factor

50%	75%	100%
0.56	0.69	0.75

Features

Frame Material	Cast Iron
Impregnation Method	Double impregnation polyester
Space Heater Voltage	110-127/200-240 V
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Complete (200h)
Joints Seal	Permatex
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
