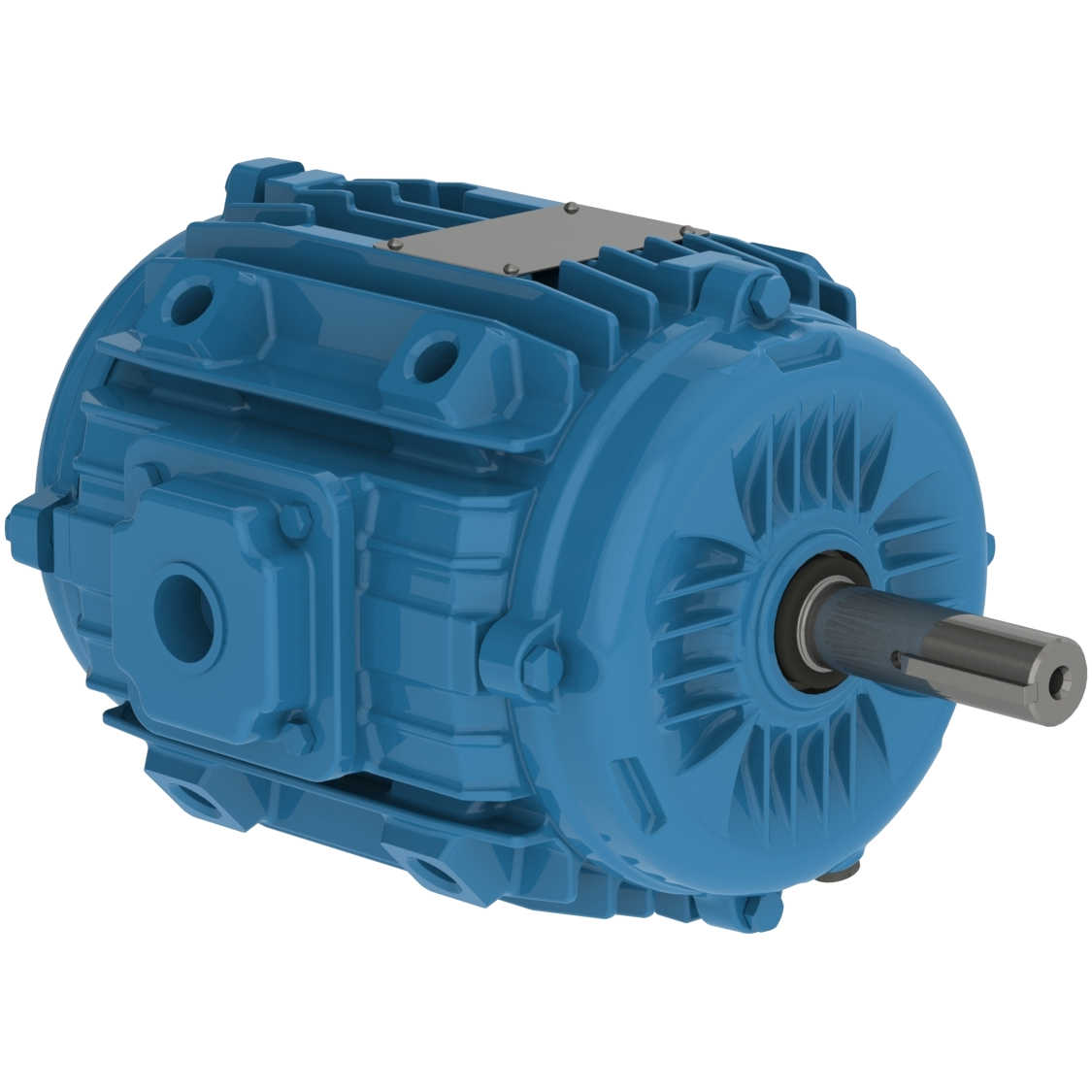

00236ET3EPM143/5Y-W22 WEG 2HP Pad Mount Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236ET3EPM143/5Y-W2

00236ET3EPM143/5Y-W22 WEG 2HP Pad Mount Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ET3EPM143/5Y-W2

Selected accessories will also be added to cart
$588.29 / Each
Quantity:
IC410 - TEAO, IP55, 145YZ Frame, 208-230/460VAC 60Hz 3 Phase, 13629667, NEMA Premium Efficiency, Pad Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame145YZ
Output2 HP (1.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3475 rpm
Slip3.47 %
Rated voltage208-230/460 V
Rated current5.66-5.12/2.56 A
L. R. Amperes50.4-45.6/22.8 A
LRC8.9x(Code L)
No load current0.000-1.80/0.900 A
Rated torque3.02 ft.lb
Locked rotor torque350 %
Breakdown torque380 %
Locked rotor time30s (cold) 17s (hot)
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?46.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  85.5  85.5

Power factor

50%75%100%
0.71  0.80  0.86

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
2HP
Enclosure
TEAO
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
145YZ
