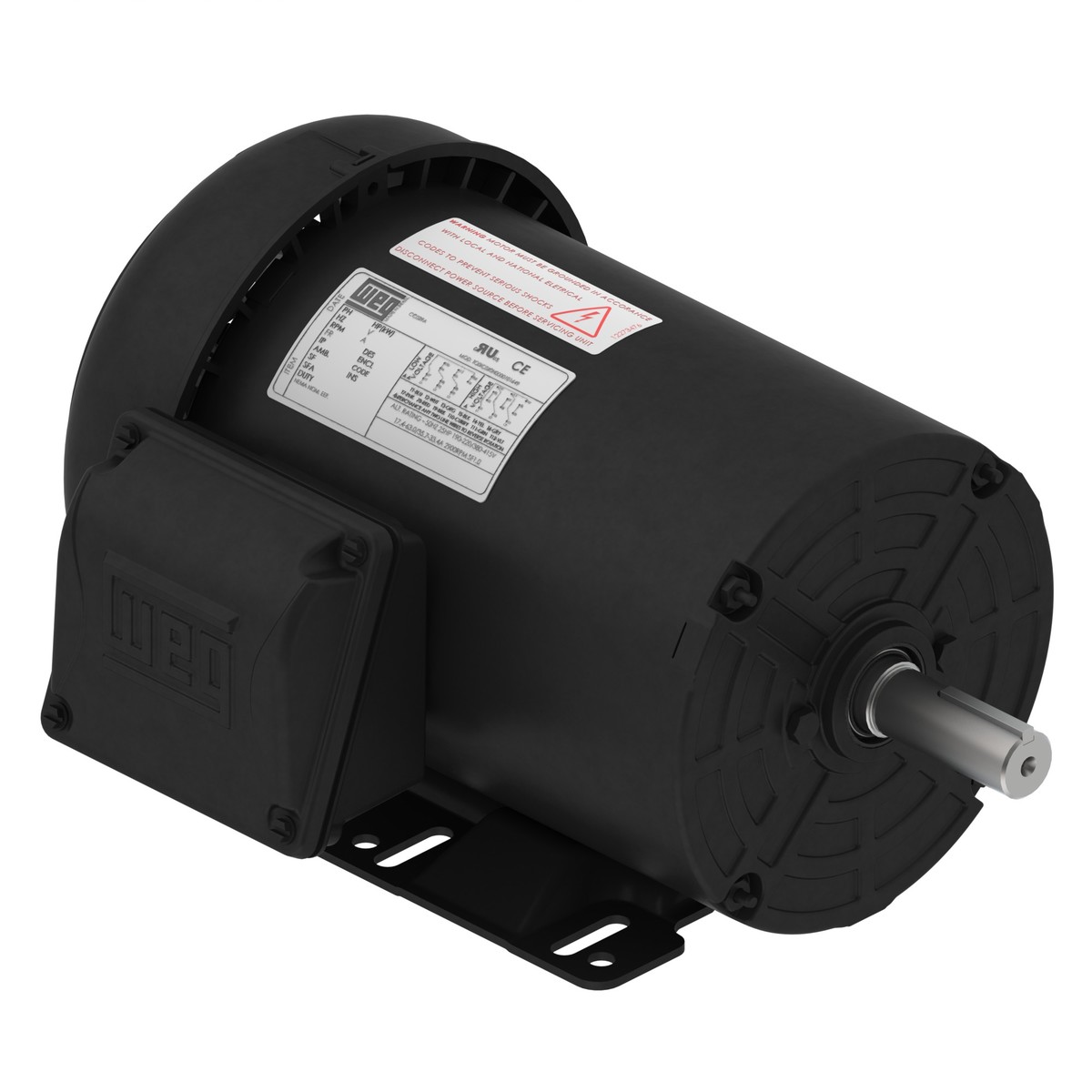

00236ET3H145T-S WEG 2HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236ET3H145T-S

00236ET3H145T-S WEG 2HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ET3H145T-S

Selected accessories will also be added to cart
$457.46 / Each
Quantity:
IC411 - TEFC, 143T/145T Frame, 575VAC 3 Phase 60Hz, 12682585, Rolled Steel NEMA Premium Efficiency, Foot Mount, 7/8" Keyed Shaft

Electric Motors

Frame143/5T
Output2 HP (1.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3520 rpm
Slip2.22 %
Rated voltage575 V
Rated current1.98 A
L. R. Amperes19.6 A
LRC9.9x(Code L)
No load current0.850 A
Rated torque2.94 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)0.1279 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?40.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  85.5  85.5

Power factor

50%75%100%
0.73  0.83  0.89

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
Painting

Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout

Bearing details

 Drive EndNon Drive End
Bearing type6205 ZZ  6203 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
57 lb 98 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
2HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
143T
Frame
145T
