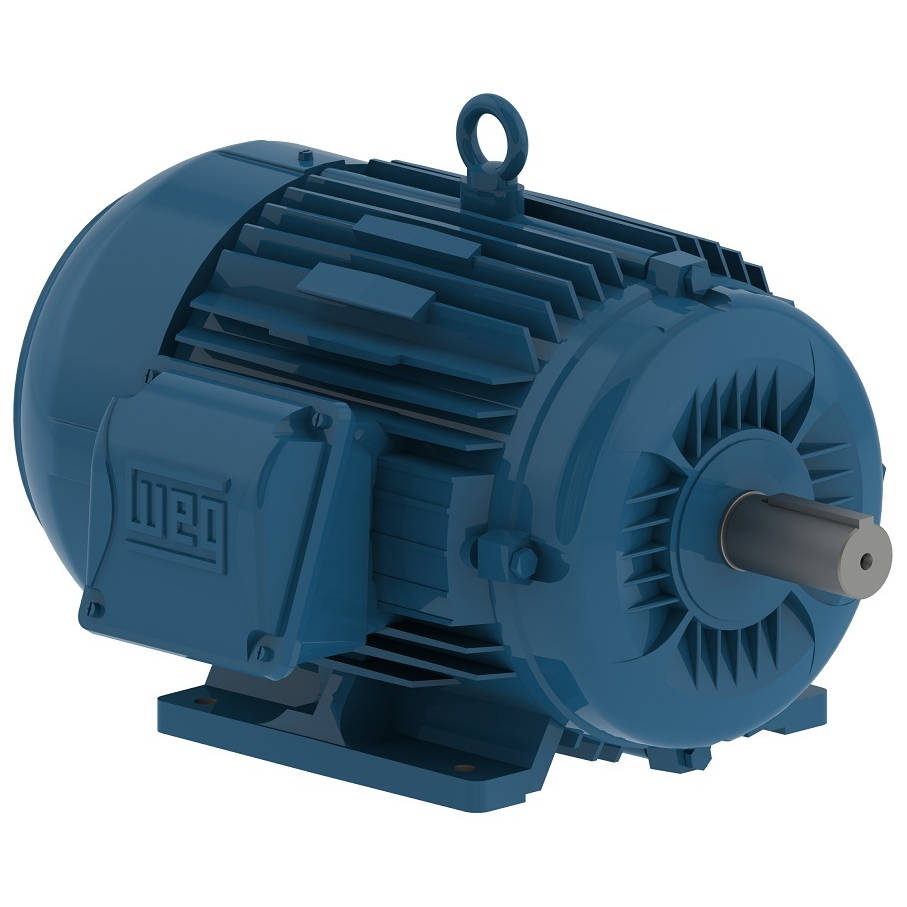

00236ET3H145T-W22 WEG 2HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236ET3H145T-W22

00236ET3H145T-W22 WEG 2HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ET3H145T-W22

Selected accessories will also be added to cart
$525.99 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 575VAC 60Hz 3 Phase, 11458012, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame143/5T
Output2 HP (1.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3475 rpm
Slip3.47 %
Rated voltage575 V
Rated current2.05 A
L. R. Amperes18.2 A
LRC8.9x(Code L)
No load current0.720 A
Rated torque2.98 ft.lb
Locked rotor torque350 %
Breakdown torque380 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)0.0605 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?50.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  85.5  85.5

Power factor

50%75%100%
0.71  0.80  0.86

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)


Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout

Bearing details

 Drive EndNon Drive End
Bearing type6205 ZZ  6204 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
75 lb 125 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Horsepower
2HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
143T
Frame
145T
