/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, ODP/Jet Pump, Footless/00236OS3HJPR56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM

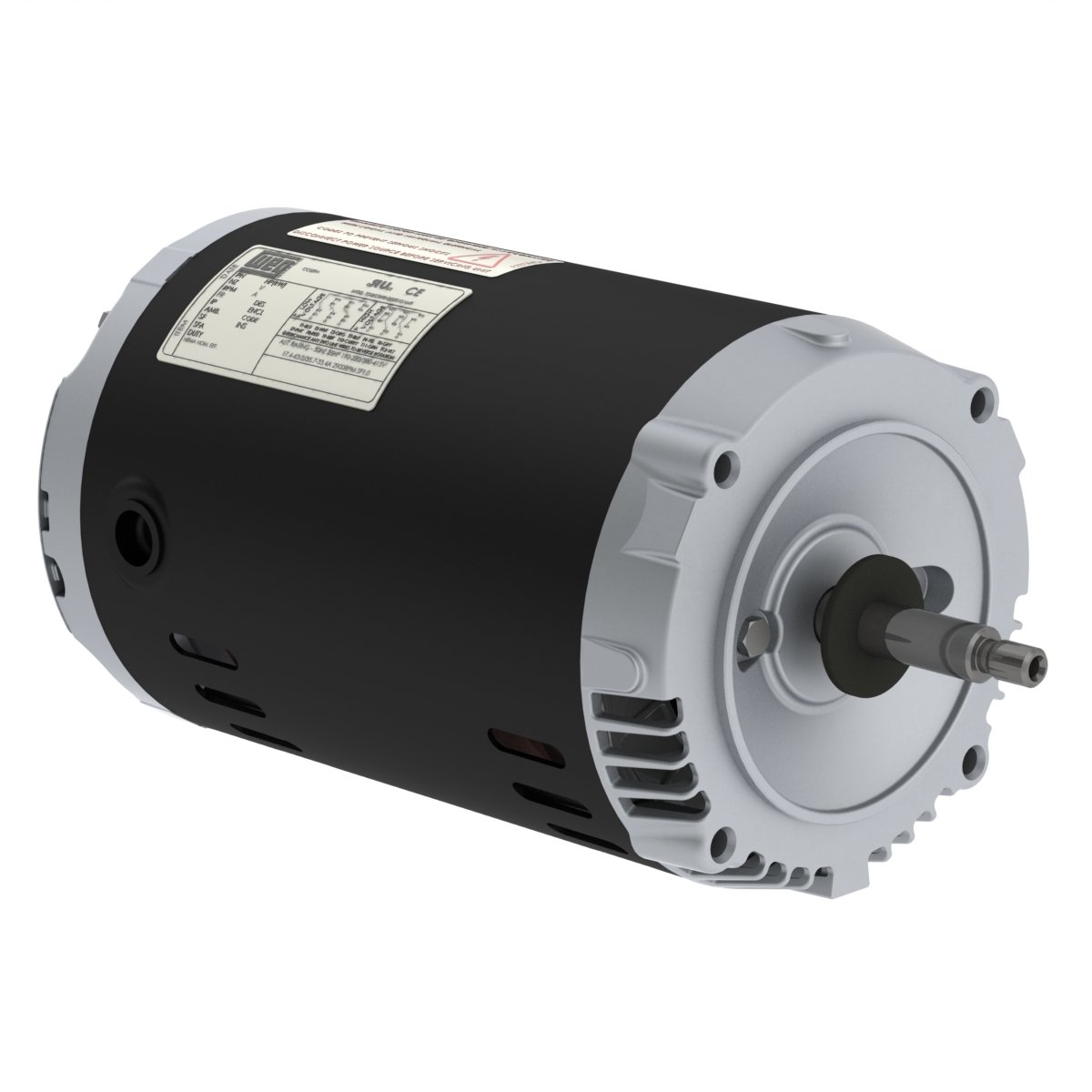

00236OS3HJPR56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236OS3HJPR56J-S

00236OS3HJPR56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236OS3HJPR56J-S

Selected accessories will also be added to cart
$285.69 / Each
Quantity:
IC01 - ODP, 56J Frame, 575VAC 3-Phase 60Hz, 14497837, Standard Efficiency, Rolled Steel Frame, Footless

Electric Motors

Frame56J
Output2 HP (1.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3470 rpm
Slip3.61 %
Rated voltage575 V
Rated current2.26 A
L. R. Amperes15.8 A
LRC7.0x(Code J)
No load current1.04 A
Rated torque3.03 ft.lb
Locked rotor torque229 %
Breakdown torque250 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)0.0774 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.20
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?CCW
Noise level?62.0 dB(A)
Approx. weight?27.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
77.0  78.5  78.5

Power factor

50%75%100%
0.66  0.79  0.85

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 304 Stainless Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodWithout Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity3
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
2HP
Frame
56J
Enclosure
ODP
Input Voltage
575VAC
