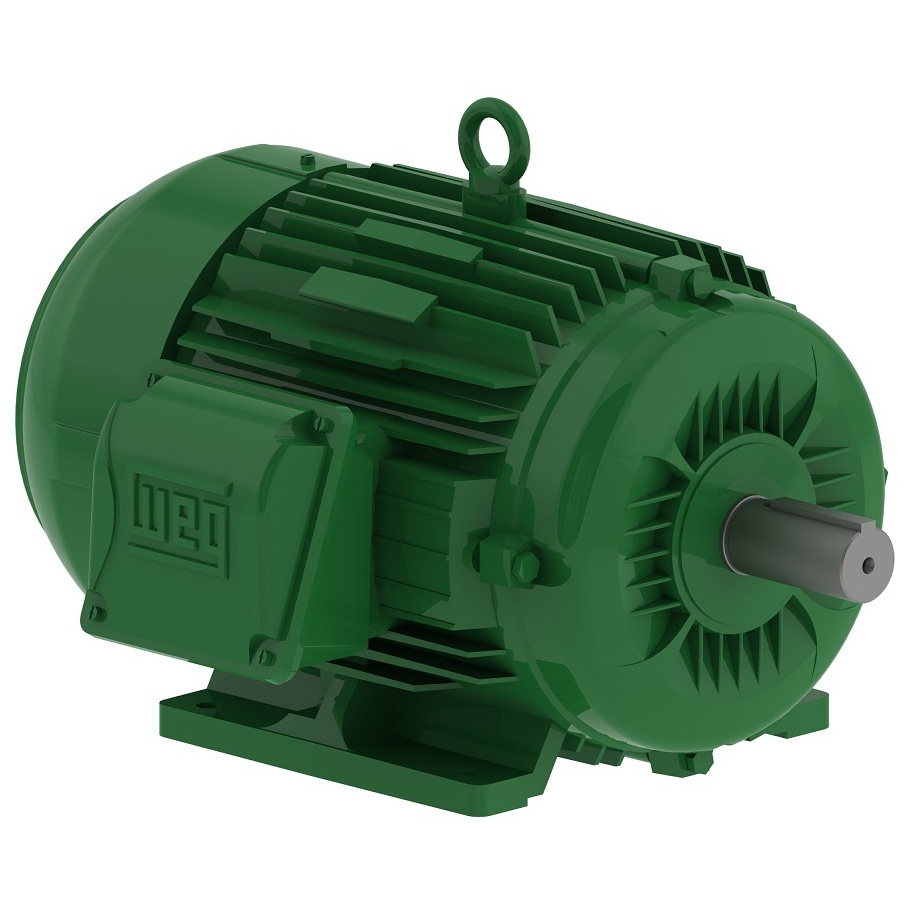

Motor/Control Division

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3490 rpm
Slip	3.06 %
Rated voltage	230/460 V
Rated current	5.12/2.56 A
L. R. Amperes	42.0/21.0 A
LRC	8.2x(Code K)
No load current	2.20/1.10 A
Rated torque	3.01 ft.lb
Locked rotor torque	320 %
Breakdown torque	360 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.0610 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	87.5	87.5

Power factor

50%	75%	100%
0.69	0.80	0.84

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2855 rpm
Slip	4.83 %
Rated voltage	380 V
Rated current	3.05 A
L. R. Amperes	21.0 A
LRC	6.9x(Code H)
No load current	1.00 A
Rated torque	3.68 ft.lb
Locked rotor torque	280 %
Breakdown torque	310 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.0610 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.0	86.0	86.0

Power factor

50%	75%	100%
0.74	0.83	0.87

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2870 rpm
Slip	4.33 %
Rated voltage	400 V
Rated current	2.92 A
L. R. Amperes	21.9 A
LRC	7.5x(Code J)
No load current	1.10 A
Rated torque	3.66 ft.lb
Locked rotor torque	320 %
Breakdown torque	350 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.0610 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.0	86.2	86.2

Power factor

50%	75%	100%
0.71	0.81	0.86

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2880 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	2.84 A
L. R. Amperes	22.7 A
LRC	8.0x(Code K)
No load current	1.20 A
Rated torque	3.65 ft.lb
Locked rotor torque	350 %
Breakdown torque	380 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.0610 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	52.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	86.5

Power factor

50%	75%	100%
0.69	0.80	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 6002 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
