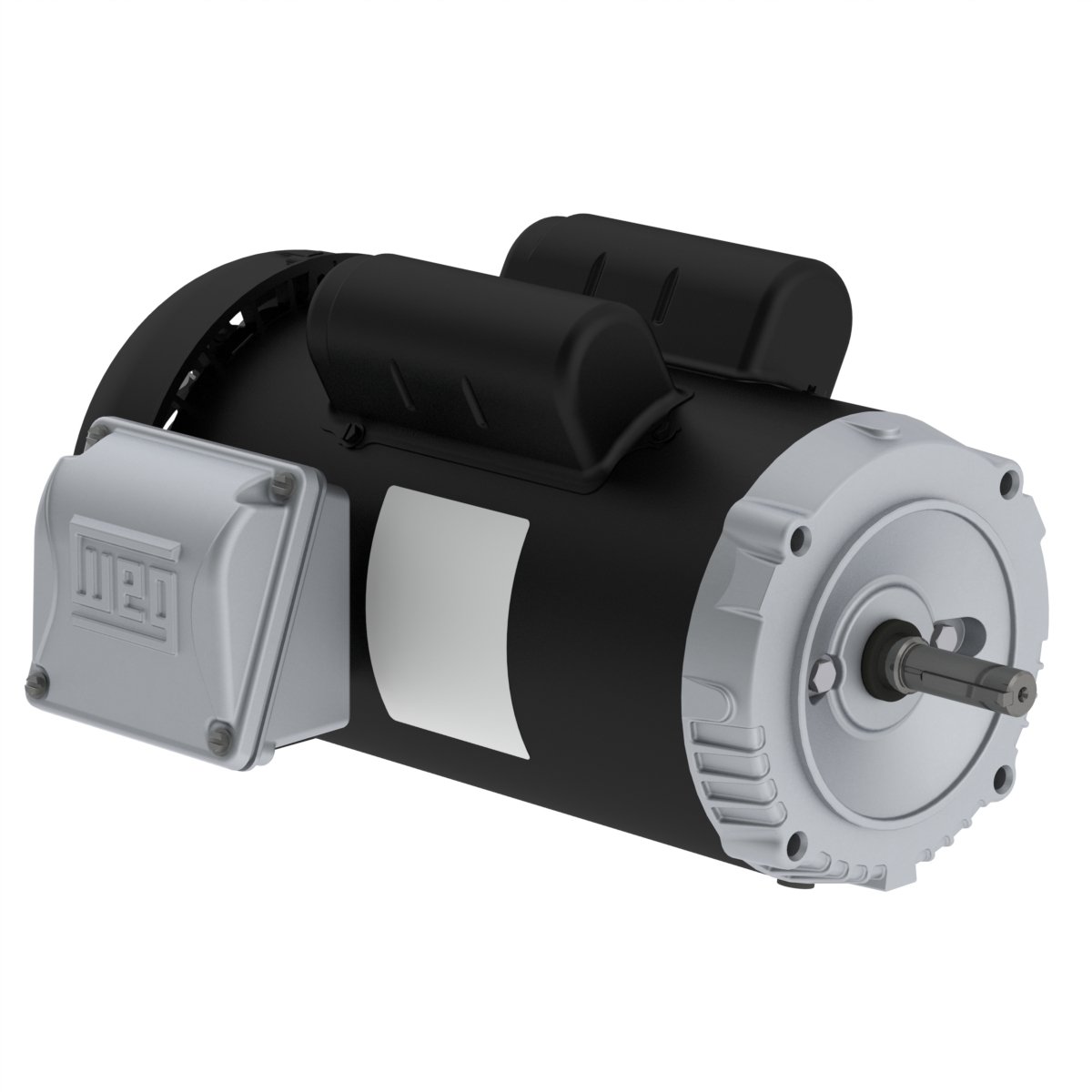

00236ES1B56CFL-S WEG 2HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236ES1B56CFL-S

00236ES1B56CFL-S WEG 2HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ES1B56CFL-S

Selected accessories will also be added to cart
$524.21 / Each
Quantity:
IC411 - TEFC, IP55, 56C Frame, 115/208-230VAC Single Phase 60Hz, 14786572, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame56C
Output2 HP (1.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3495 rpm
Slip2.92 %
Rated voltage115/208-230 V
Rated current17.5/9.62-8.73 A
L. R. Amperes136/75.0-68.1 A
LRC7.8x(Code J)
No load current5.00/2.16-2.50 A
Rated torque2.96 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0707 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Approx. weight³39.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
70.075.077.0

Power factor

50%75%100%
0.940.970.97

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Frame
56C
Enclosure
TEFC
Horsepower
2HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
