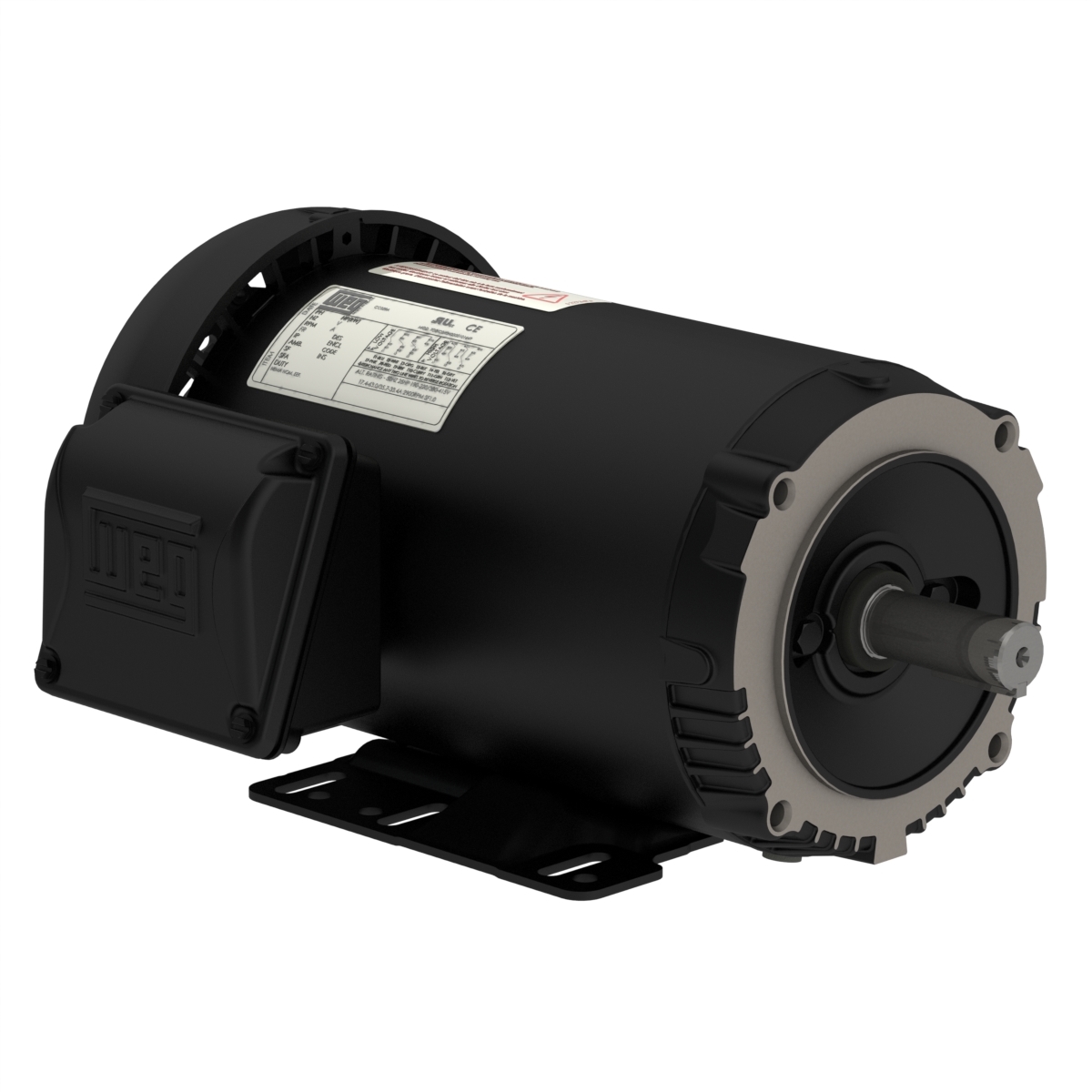

Motor/Control Division

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3520 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	4.94/2.47 A
L. R. Amperes	48.9/24.5 A
LRC	9.9x(Code L)
No load current	2.13/1.06 A
Rated torque	2.98 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	23s (cold) 13s (hot)
Moment of inertia (J)	0.1279 sq.ft.lb

Design	B
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	40.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	85.5	85.5

Power factor

50%	75%	100%
0.73	0.83	0.89

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2875 rpm
Slip	4.17 %
Rated voltage	190/380 V
Rated current	5.94/2.97 A
L. R. Amperes	44.0/22.0 A
LRC	7.4x(Code J)
No load current	2.10/1.05 A
Rated torque	3.65 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %
Locked rotor time	0s (cold) 0s (hot)
Moment of inertia (J)	0.1279 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	65.0 dB(A)
Approx. weight?	40.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	84.6	83.3

Power factor

50%	75%	100%
0.79	0.88	0.92

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2890 rpm
Slip	3.67 %
Rated voltage	220/415 V
Rated current	5.39/2.86 A
L. R. Amperes	44.2/23.5 A
LRC	8.2x(Code K)
No load current	2.14/1.13 A
Rated torque	3.63 ft.lb
Locked rotor torque	260 %
Breakdown torque	310 %
Locked rotor time	0s (cold) 0s (hot)
Moment of inertia (J)	0.1279 sq.ft.lb

Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	65.0 dB(A)
Approx. weight?	40.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.7	84.9	84.1

Power factor

50%	75%	100%
0.76	0.86	0.90

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	1.118"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
