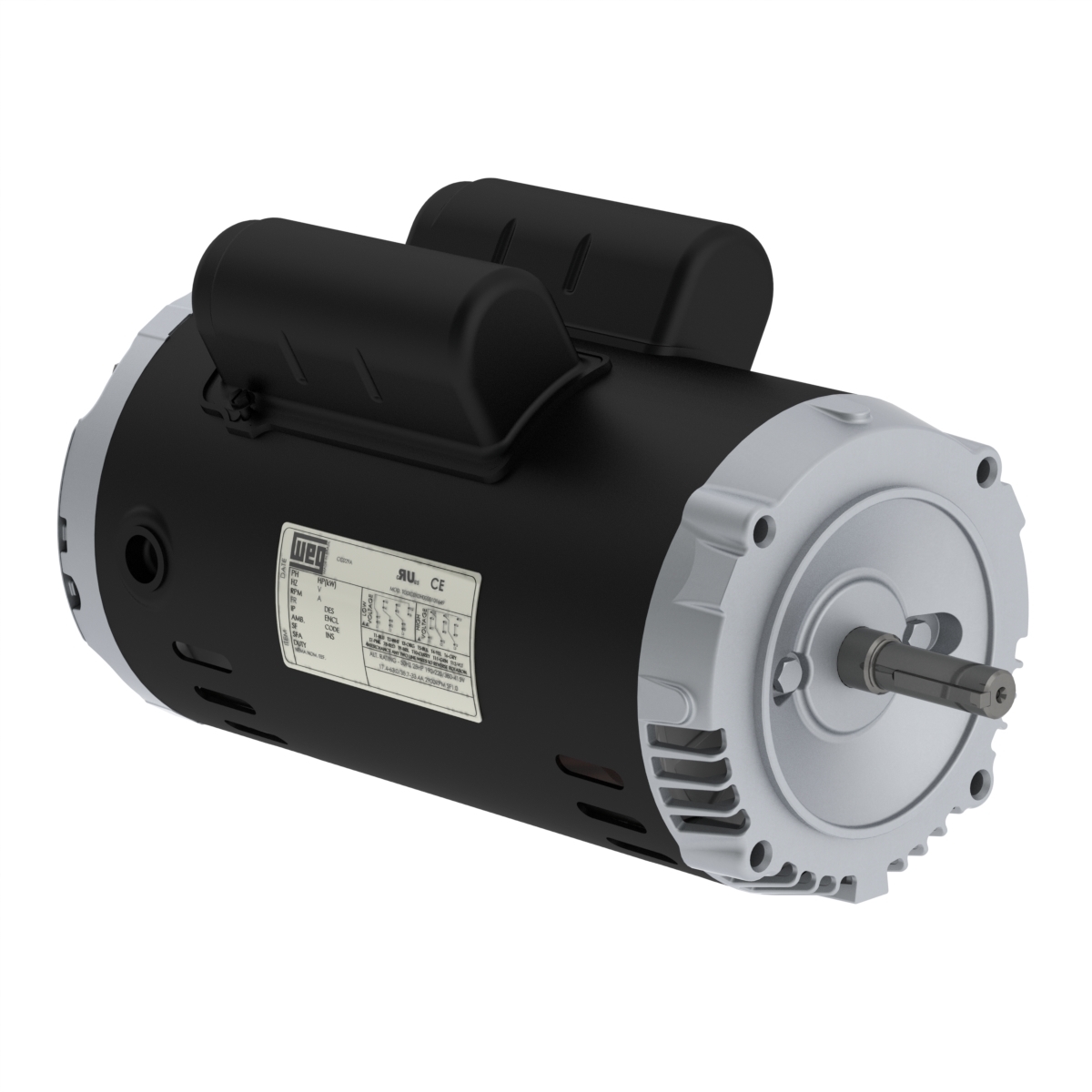

00236OS1BJPR56C-S WEG 2HP Jet Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236OS1BJPR56C-S

00236OS1BJPR56C-S WEG 2HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236OS1BJPR56C-S

Selected accessories will also be added to cart
$377.36 / Each
Quantity:
IC01 - ODP, 56C Frame, 115/208-230VAC 60Hz Single Phase, 13772646, C-Face, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame56C
Output2 HP (1.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3490 rpm
Slip3.06 %
Rated voltage115/208-230 V
Rated current21.8/12.1-10.9 A
L. R. Amperes170/94.0-85.0 A
LRC7.8x(Code L)
No load current12.6/5.43-6.30 A
Rated torque3.01 ft.lb
Locked rotor torque250 %
Breakdown torque260 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0747 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.20 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²58.0 dB(A)
Approx. weight³38.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
69.072.075.0

Power factor

50%75%100%
0.600.720.80
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Frame
56C
Enclosure
ODP
Horsepower
2HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
