/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/Jet Pump/00236OS1BJPR56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM

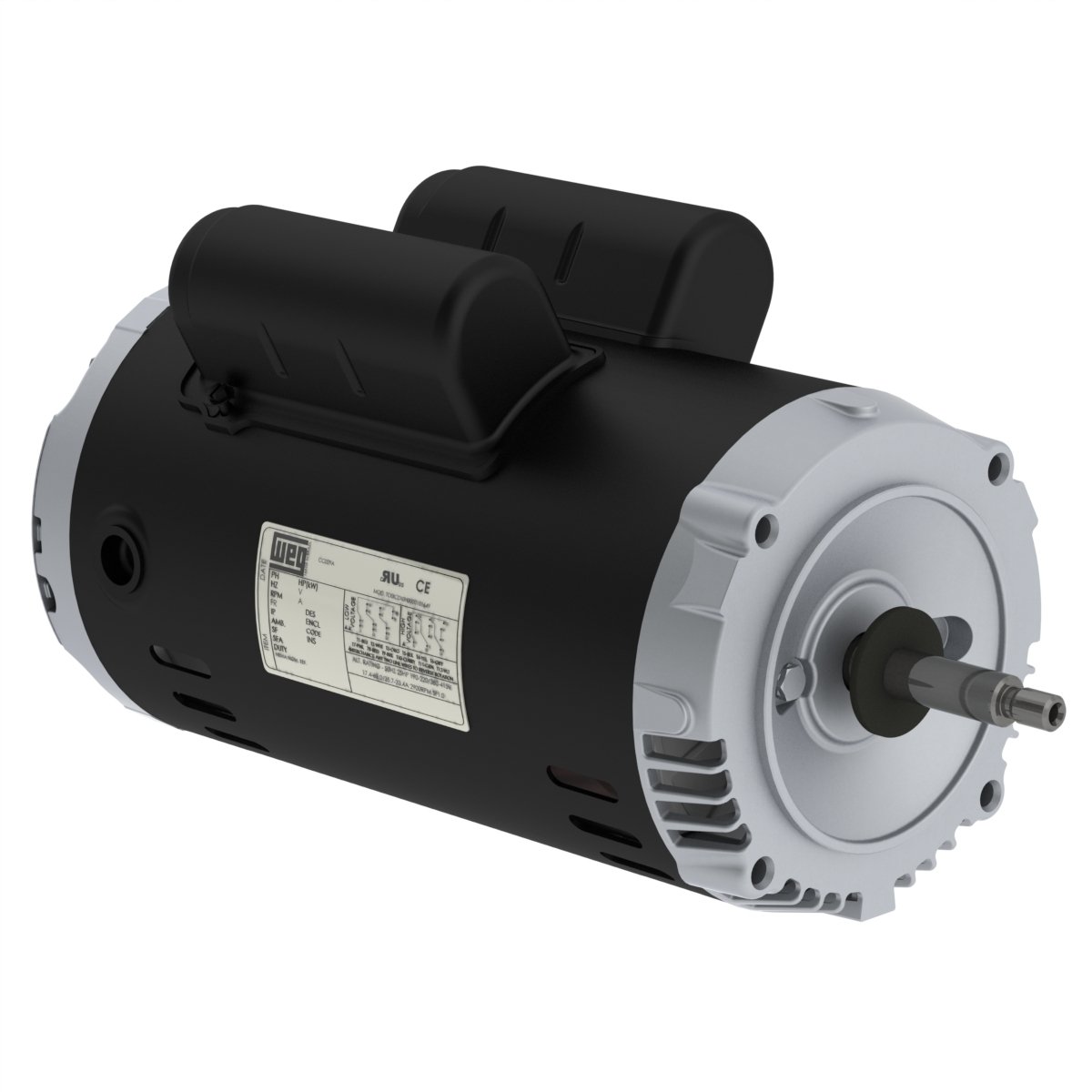

00236OS1BJPR56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236OS1BJPR56J-S

00236OS1BJPR56J-S WEG 2HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236OS1BJPR56J-S

Selected accessories will also be added to cart
$389.82 / Each
Quantity:
IC01 - ODP, 56J Frame, 115/208-230VAC Single Phase 60Hz, 13632313, J-Type, Footless, Rolled Steel, Standard Efficiency

Electric Motors

Frame56J
Output2 HP (1.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3490 rpm
Slip3.06 %
Rated voltage115/208-230 V
Rated current21.8/12.1-10.9 A
L. R. Amperes170/94.0-85.0 A
LRC7.8x(Code L)
No load current12.6/5.43-6.30 A
Rated torque2.97 ft.lb
Locked rotor torque250 %
Breakdown torque260 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0747 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.20 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²58.0 dB(A)
Approx. weight³38.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
69.072.075.0

Power factor

50%75%100%
0.600.720.80

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 304 Stainless Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodWithout Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
2HP
Frame
56J
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
