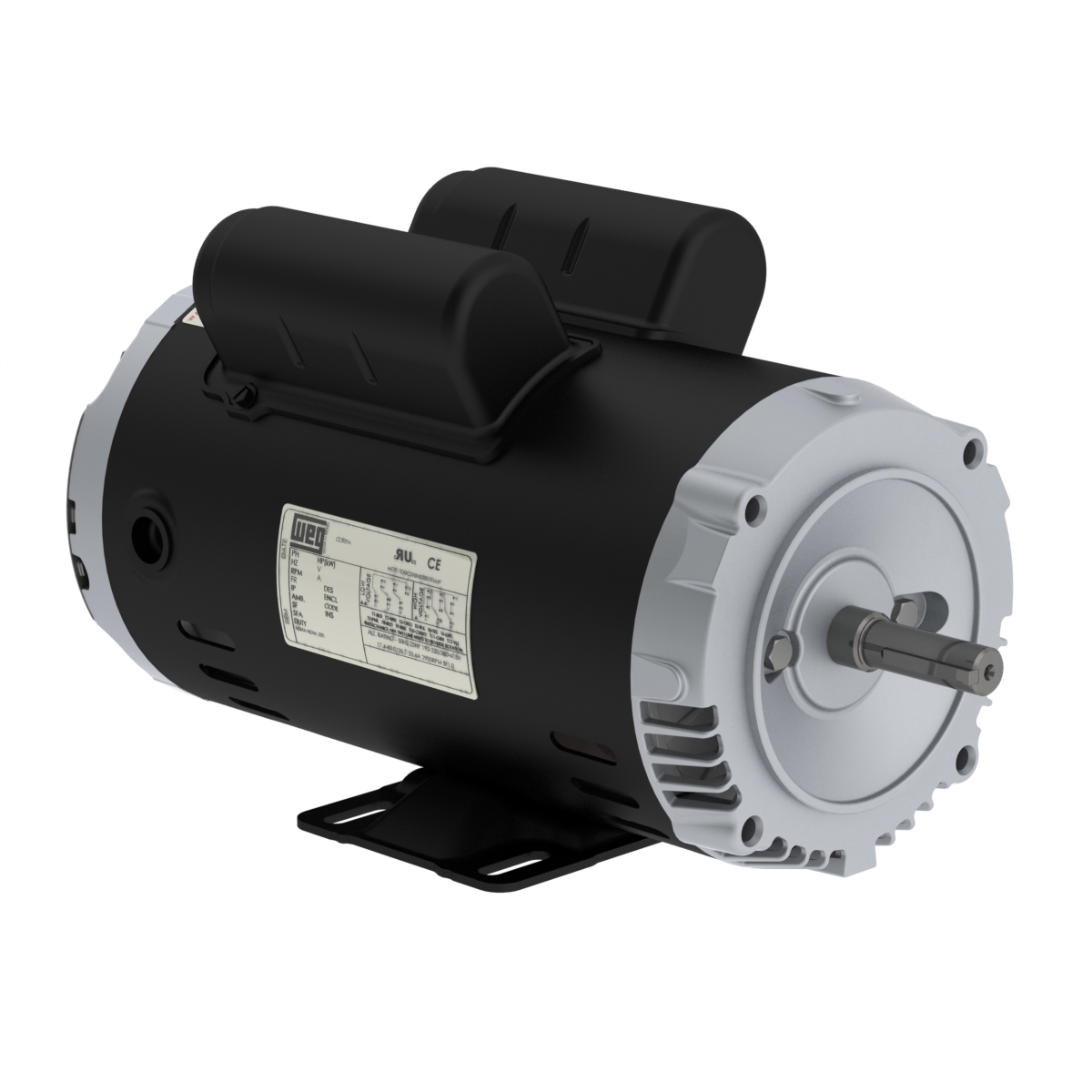

00236OT1B56C-S WEG 2HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 00236OT1B56C-S

00236OT1B56C-S WEG 2HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236OT1B56C-S

Selected accessories will also be added to cart
$456.57 / Each
Quantity:
IC01 - ODP, 56HC Frame, 115/208-230VAC Single Phase 60Hz, 14502757, C-Face, Foot Mounted, Rolled Steel, 5/8" Keyed Shaft
Frame56C
Output2 HP (1.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current16.8/9.29-8.40 A
L. R. Amperes144/79.9-72.2 A
LRC8.6x(Code K)
No load current4.40/1.90-2.20 A
Rated torque2.96 ft.lb
Locked rotor torque250 %
Breakdown torque280 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.0747 sq.ft.lb
DesignL
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Approx. weight³41.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
76.081.082.9

Power factor

50%75%100%
0.900.940.94
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
2HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Frame
56HC
