/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/IEEE 841/Foot Mount/575VAC/00236ST3HIE145T-W22 WEG 2HP Severe Duty Electric Motor, 3600RPM

Product ID: 00236ST3HIE145T-W22

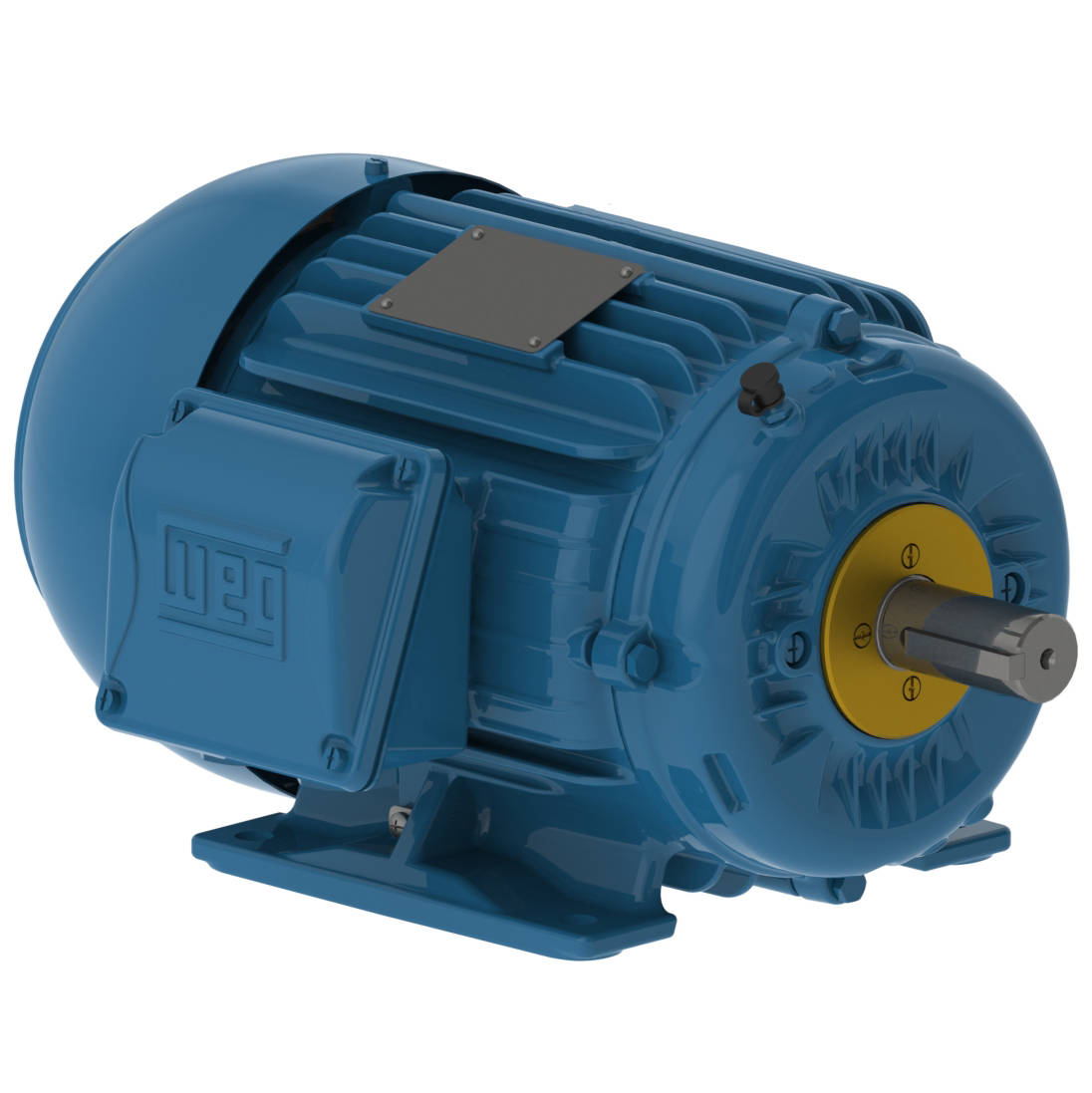

00236ST3HIE145T-W22 WEG 2HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ST3HIE145T-W22

Selected accessories will also be added to cart

$910.47 / Each

Quantity:

IC411 - TEFC, IP55, 143T/145T Frame, 575VAC 60Hz 3 Phase, 11432605, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 7/8" Keyed Shaft

Electric Motors

Frame	143/5T
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3475 rpm
Slip	3.47 %
Rated voltage	575 V
Rated current	2.05 A
L. R. Amperes	18.2 A
LRC	8.9x(Code L)
No load current	0.720 A
Rated torque	3.02 ft.lb
Locked rotor torque	350 %
Breakdown torque	380 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.0605 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	57.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	85.5	85.5

Power factor

50%	75%	100%
0.71	0.80	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
