/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/IEEE 841/Foot Mount, C-Face/00236ST3QIE145TC-W22 WEG 2HP Severe Duty Electric Motor, 3600RPM

Product ID: 00236ST3QIE145TC-W22

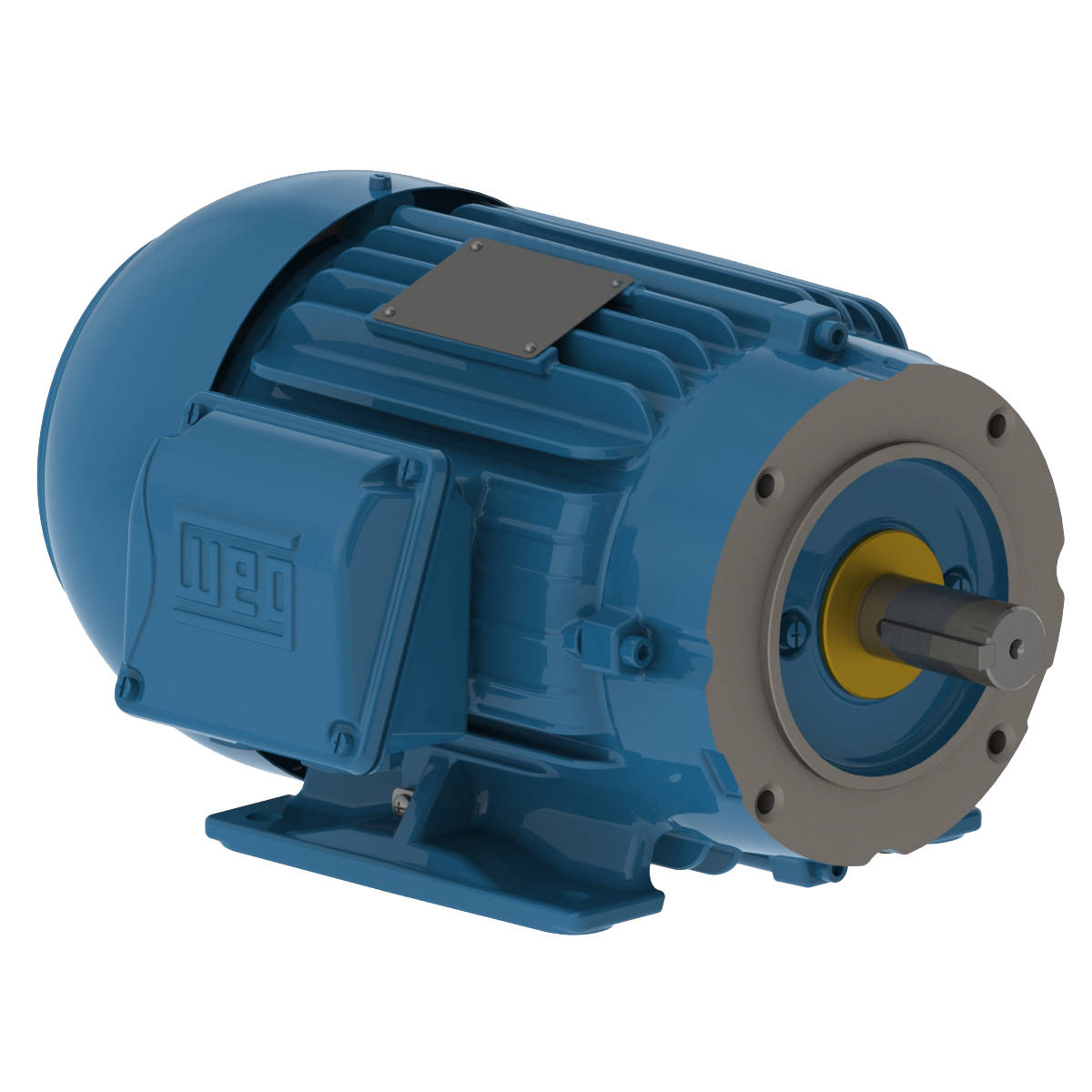

00236ST3QIE145TC-W22 WEG 2HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 00236ST3QIE145TC-W22

Selected accessories will also be added to cart

$954.97 / Each

Quantity:

IC411 - TEFC, IP55, 143TC/145TC Frame, 460VAC 60Hz 3 Phase, 11520462, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, IEEE 841, 7/8" Keyed Shaft

Electric Motors

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3475 rpm
Slip	3.47 %
Rated voltage	460 V
Rated current	2.56 A
L. R. Amperes	22.8 A
LRC	8.9x(Code L)
No load current	0.900 A
Rated torque	3.02 ft.lb
Locked rotor torque	350 %
Breakdown torque	380 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.0605 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	59.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	85.5	85.5

Power factor

50%	75%	100%
0.71	0.80	0.86

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2885 rpm
Slip	3.83 %
Rated voltage	380 V
Rated current	2.30 A
L. R. Amperes	19.5 A
LRC	8.5x(Code K)
No load current	0.890 A
Rated torque	2.73 ft.lb
Locked rotor torque	370 %
Breakdown torque	370 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.0605 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	59.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.4	83.3	83.5

Power factor

50%	75%	100%
0.69	0.81	0.87

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2895 rpm
Slip	3.50 %
Rated voltage	400 V
Rated current	2.22 A
L. R. Amperes	20.4 A
LRC	9.2x(Code L)
No load current	0.960 A
Rated torque	2.72 ft.lb
Locked rotor torque	409 %
Breakdown torque	420 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.0605 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	59.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.3	83.1	84.0

Power factor

50%	75%	100%
0.66	0.78	0.85

Frame	143/5TC
Output	1.5 HP (1.1 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2905 rpm
Slip	3.17 %
Rated voltage	415 V
Rated current	2.19 A
L. R. Amperes	21.2 A
LRC	9.7x(Code M)
No load current	1.01 A
Rated torque	2.71 ft.lb
Locked rotor torque	450 %
Breakdown torque	459 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.0605 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	59.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
80.1	83.1	84.0

Power factor

50%	75%	100%
0.64	0.76	0.83

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2835 rpm
Slip	5.50 %
Rated voltage	380 V
Rated current	3.07 A
L. R. Amperes	20.0 A
LRC	6.5x(Code H)
No load current	0.890 A
Rated torque	3.70 ft.lb
Locked rotor torque	270 %
Breakdown torque	270 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.0605 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	59.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	82.5

Power factor

50%	75%	100%
0.79	0.86	0.90

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2850 rpm
Slip	5.00 %
Rated voltage	400 V
Rated current	2.90 A
L. R. Amperes	20.9 A
LRC	7.2x(Code J)
No load current	0.960 A
Rated torque	3.69 ft.lb
Locked rotor torque	300 %
Breakdown torque	310 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.0605 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	59.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	84.0

Power factor

50%	75%	100%
0.76	0.84	0.89

Frame	143/5TC
Output	2 HP (1.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2865 rpm
Slip	4.50 %
Rated voltage	415 V
Rated current	2.82 A
L. R. Amperes	21.7 A
LRC	7.7x(Code J)
No load current	1.01 A
Rated torque	3.67 ft.lb
Locked rotor torque	330 %
Breakdown torque	340 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.0605 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	59.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	84.0	84.0

Power factor

50%	75%	100%
0.73	0.83	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
