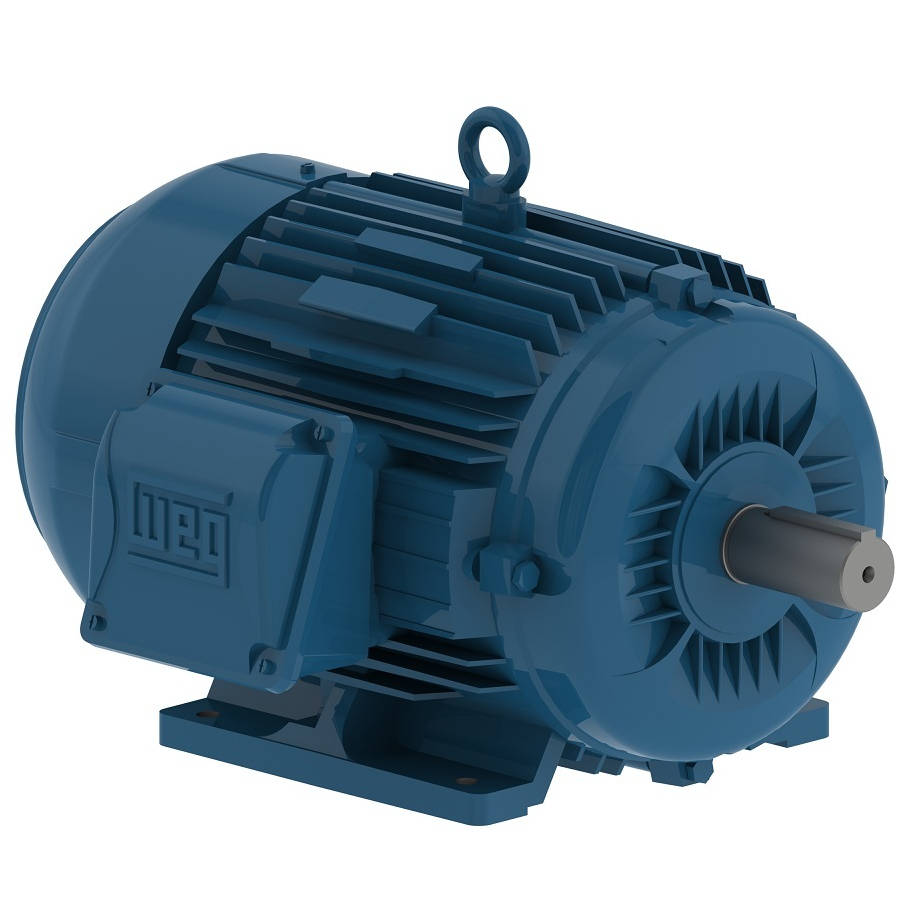

00309ET3H215T-W22 WEG 3HP Severe Duty Electric Motor, 900RPM
Enlarge Photo

Product ID: 00309ET3H215T-W22

00309ET3H215T-W22 WEG 3HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 00309ET3H215T-W22

Selected accessories will also be added to cart
$1,882.35 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 575VAC 60Hz 3 Phase, 11856861, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output3 HP (2.2 kW)
Number of Poles8
Frequency60 Hz
Rated speed870 rpm
Slip3.33 %
Rated voltage575 V
Rated current3.64 A
L. R. Amperes24.8 A
LRC6.8x(Code K)
No load current2.17 A
Rated torque18.1 ft.lb
Locked rotor torque229 %
Breakdown torque275 %
Locked rotor time79s (cold) 44s (hot)
Moment of inertia (J)2.11 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?52.0 dB(A)
Approx. weight?182 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
84.0  85.5  85.5

Power factor

50%75%100%
0.50  0.63  0.71

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6308 ZZ  6207 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
190 lb 372 lb

Type
Electric Motor
Input Phase
3-Phase
Application
Severe Duty
Horsepower
3HP
Enclosure
TEFC
Speed
900RPM
Input Voltage
575VAC
Frame
213T
Frame
215T
