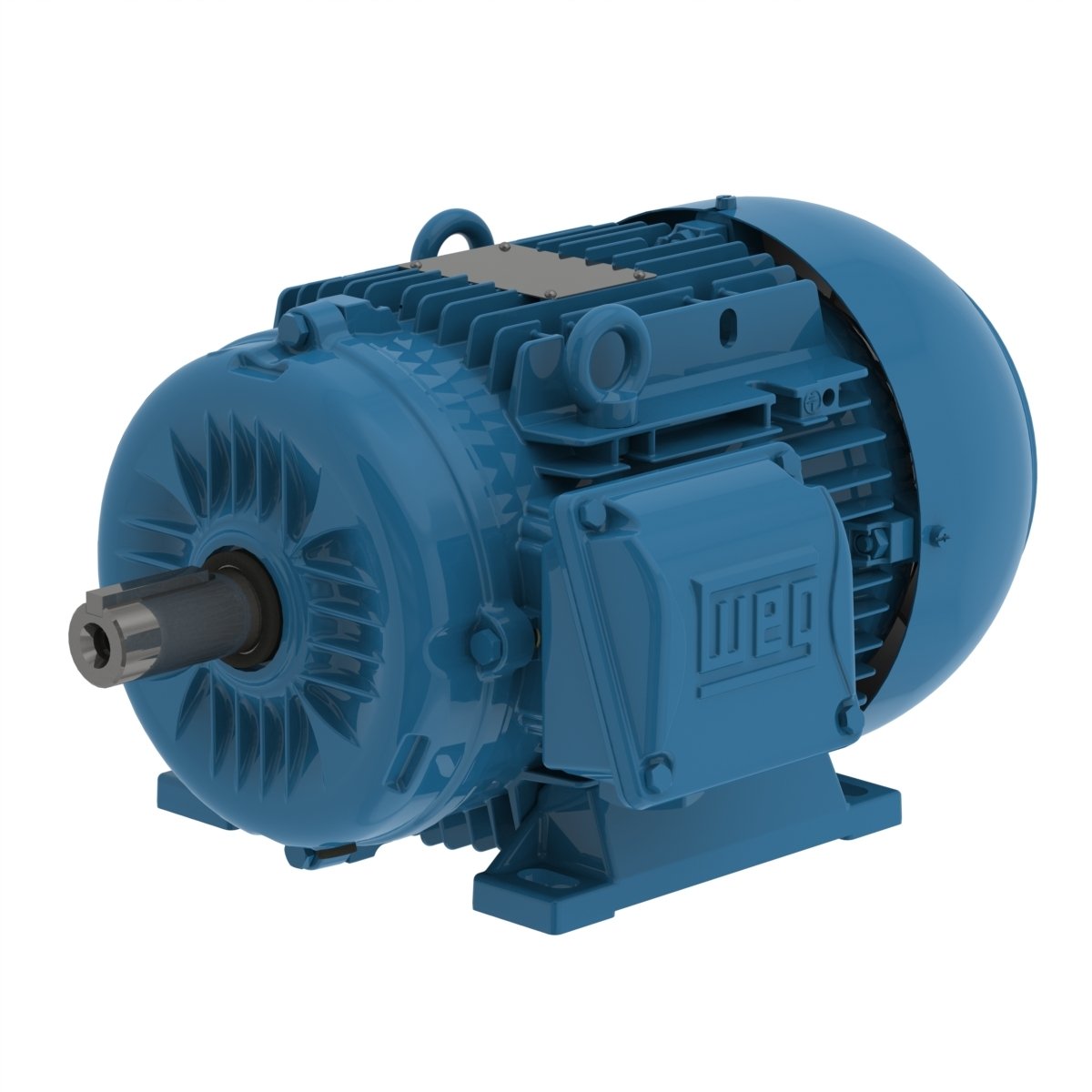

Motor/Control Division

Frame	132M
Output	4 HP (3 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	710 rpm
Slip	5.33 %
Rated voltage	380 V
Rated current	7.48 A
L. R. Amperes	47.9 A
LRC	6.4
No load current	4.40 A
Rated torque	29.2 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	1.99 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	48.0 dB(A)
Approx. weightÂ³	152 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	83.0	83.5

Power factor

50%	75%	100%
0.52	0.65	0.73

Frame	132M
Output	4 HP (3 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	715 rpm
Slip	4.67 %
Rated voltage	400 V
Rated current	7.41 A
L. R. Amperes	51.1 A
LRC	6.9
No load current	4.80 A
Rated torque	29.0 ft.lb
Locked rotor torque	270 %
Breakdown torque	290 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	1.99 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	48.0 dB(A)
Approx. weightÂ³	152 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
82.5	83.0	83.5

Power factor

50%	75%	100%
0.47	0.61	0.70

Frame	132M
Output	4 HP (3 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	415 V
Rated current	7.44 A
L. R. Amperes	55.1 A
LRC	7.4
No load current	5.20 A
Rated torque	28.8 ft.lb
Locked rotor torque	300 %
Breakdown torque	320 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	1.99 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	48.0 dB(A)
Approx. weightÂ³	152 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
81.5	83.2	83.7

Power factor

50%	75%	100%
0.43	0.57	0.67

Frame	132M
Output	4 HP (3 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	870 rpm
Slip	3.33 %
Rated voltage	460 V
Rated current	6.50 A
L. R. Amperes	50.7 A
LRC	7.8
No load current	4.50 A
Rated torque	23.8 ft.lb
Locked rotor torque	320 %
Breakdown torque	340 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	1.99 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	52.0 dB(A)
Approx. weightÂ³	152 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
83.5	85.0	86.5

Power factor

50%	75%	100%
0.45	0.58	0.67

Features

Frame Material	Aluminum
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xM32x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Drip Cover	Without
