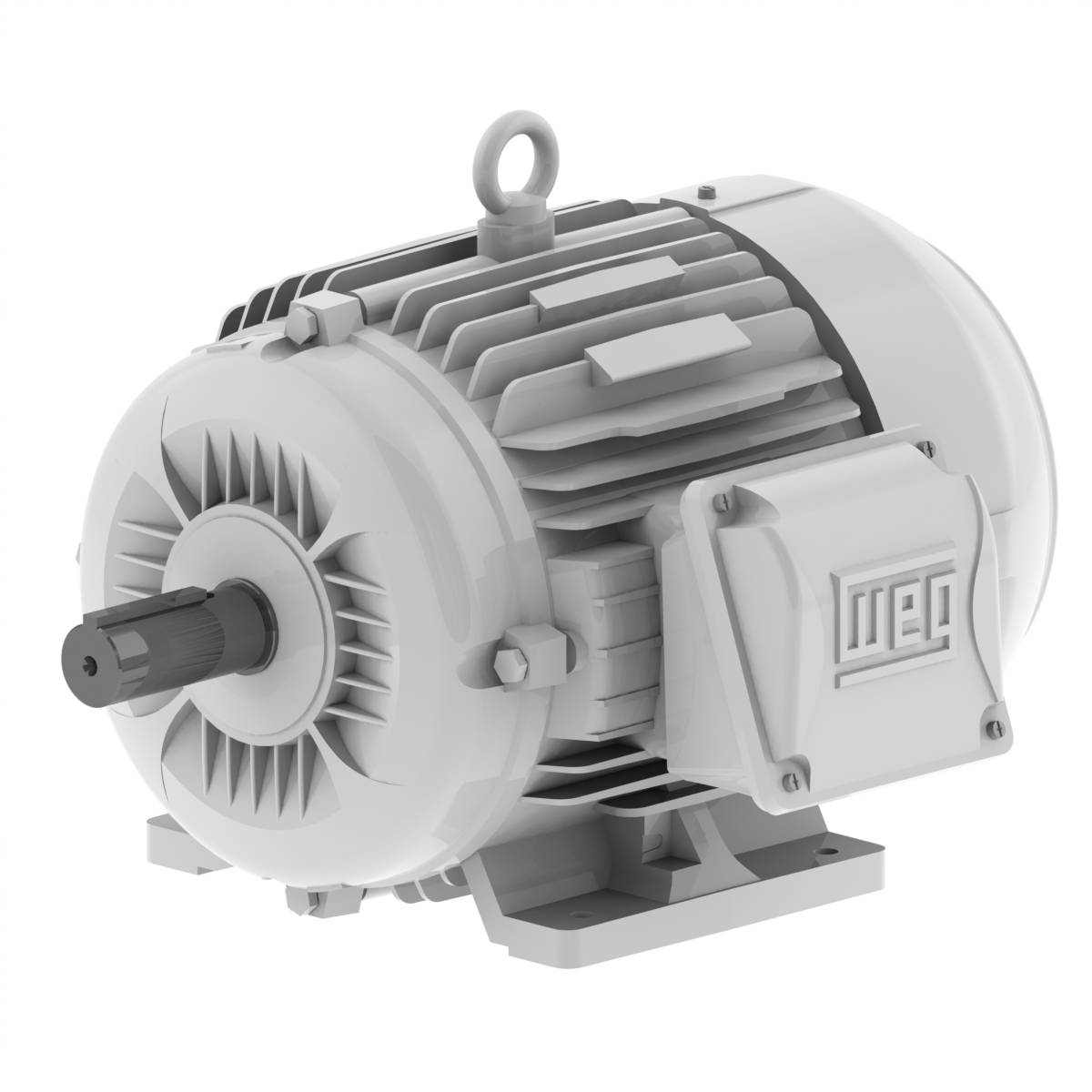

Motor/Control Division

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1050 rpm
Slip	12.50 %
Rated voltage	208-230/460 V
Rated current	11.0-9.96/4.98 A
L. R. Amperes	49.6-44.8/22.4 A
LRC	4.5x(Code G)
No load current	6.08-5.50/2.75 A
Rated torque	15.0 ft.lb
Locked rotor torque	350 %
Breakdown torque	0 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	0.6841 sq.ft.lb
Design	D
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-2
Rotation¹	Both (CW and CCW)
Noise level²	55.0 dB(A)
Approx. weight³	143 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	75.5	74.0

Power factor

50%	75%	100%
0.56	0.67	0.75

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 9010 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
