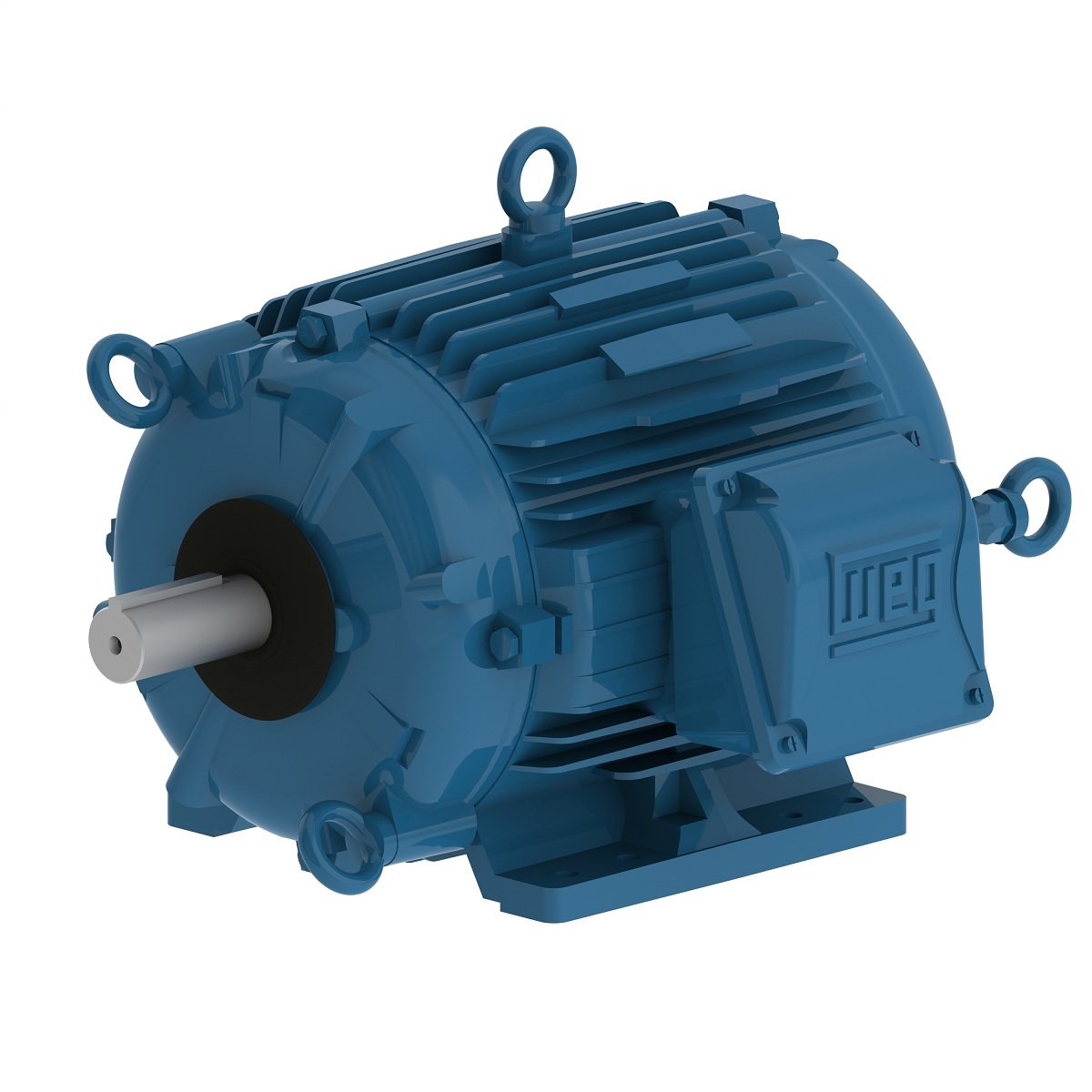

00312AT3PCT213T-W22 WEG 3HP Cooling Tower Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00312AT3PCT213T-W22

00312AT3PCT213T-W22 WEG 3HP Cooling Tower Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00312AT3PCT213T-W22

Selected accessories will also be added to cart
$1,218.41 / Each
Quantity:
IC410 - TEAO, IP55, 213T/215T Frame, 200VAC 60Hz 3 Phase, 14382808, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output3 HP (2.2 kW)
Number of Poles6
Frequency60 Hz
Rated speed1175 rpm
Slip2.08 %
Rated voltage200 V
Rated current10.1 A
L. R. Amperes71.0 A
LRC7.0x(Code K)
No load current6.33 A
Rated torque13.4 ft.lb
Locked rotor torque200 %
Breakdown torque280 %
Locked rotor time104s (cold) 58s (hot)
Moment of inertia (J)1.20 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-2
Rotation?Both (CW and CCW)
Noise level?55.0 dB(A)
Approx. weight?121 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  88.5  89.5

Power factor

50%75%100%
0.50  0.63  0.70

Features

Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Space Heater Voltage110-127/200-240 V
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Joints SealPermatex
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Cooling Tower
Horsepower
3HP
Enclosure
TEAO
Input Voltage
200VAC
Frame
213T/215T
