/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Super Premium Efficiency/00312EG3E213T-W22 WEG 3HP Electric Motor, 1200RPM

Product ID: 00312EG3E213T-W22

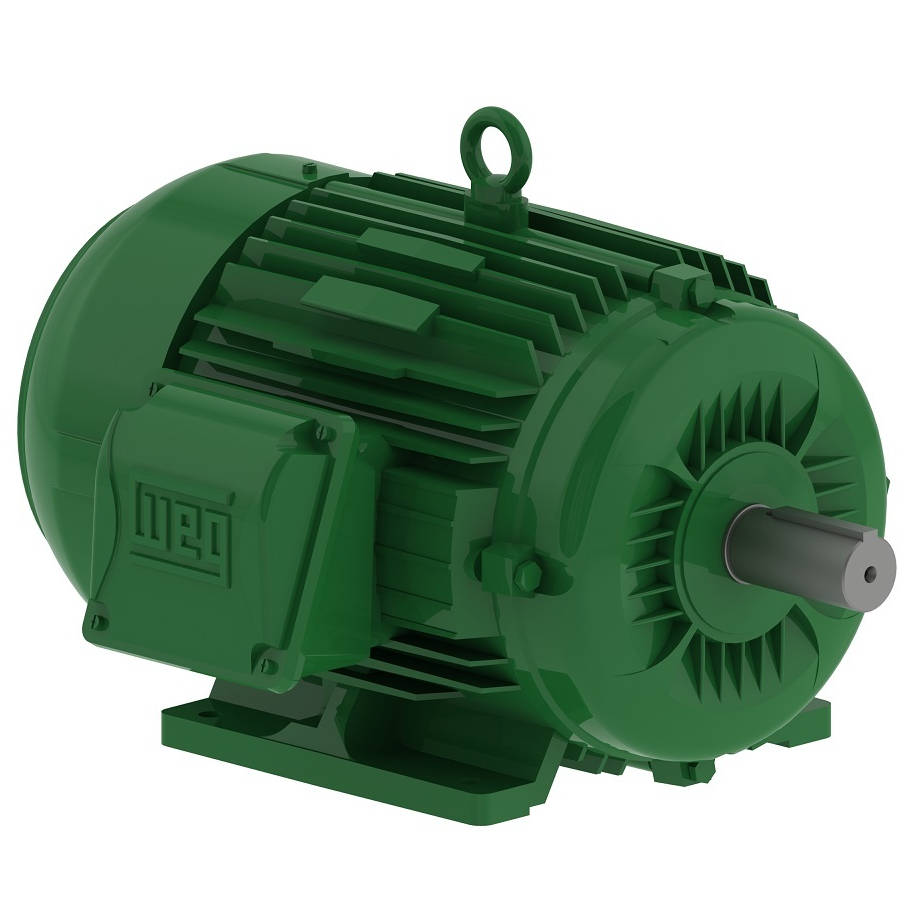

00312EG3E213T-W22 WEG 3HP Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00312EG3E213T-W22

Selected accessories will also be added to cart

$1,105.38 / Each

Quantity:

IC411 - TEFC, IP55, 213T/215T Frame, 208-230/460VAC 60Hz 3 Phase, 12792176, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1175 rpm
Slip	2.08 %
Rated voltage	230/460 V
Rated current	8.62/4.31 A
L. R. Amperes	62.1/31.0 A
LRC	7.2x(Code K)
No load current	5.13/2.56 A
Rated torque	13.4 ft.lb
Locked rotor torque	180 %
Breakdown torque	290 %
Locked rotor time	162s (cold) 90s (hot)

Moment of inertia (J)	1.53 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	55.0 dB(A)
Approx. weight?	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	89.5	90.2

Power factor

50%	75%	100%
0.51	0.63	0.71

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	4.91 A
L. R. Amperes	27.0 A
LRC	5.5x(Code G)
No load current	2.50 A
Rated torque	16.2 ft.lb
Locked rotor torque	150 %
Breakdown torque	229 %
Locked rotor time	144s (cold) 80s (hot)

Moment of inertia (J)	1.53 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.57	0.69	0.76

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	400 V
Rated current	4.79 A
L. R. Amperes	31.1 A
LRC	6.5x(Code J)
No load current	2.70 A
Rated torque	16.2 ft.lb
Locked rotor torque	180 %
Breakdown torque	270 %
Locked rotor time	144s (cold) 80s (hot)

Moment of inertia (J)	1.53 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	90.2	89.5

Power factor

50%	75%	100%
0.54	0.66	0.74

Frame	213/5T
Output	3 HP (2.2 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	415 V
Rated current	4.71 A
L. R. Amperes	35.3 A
LRC	7.5x(Code K)
No load current	2.80 A
Rated torque	16.2 ft.lb
Locked rotor torque	200 %
Breakdown torque	290 %
Locked rotor time	144s (cold) 80s (hot)

Moment of inertia (J)	1.53 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	53.0 dB(A)
Approx. weight?	178 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	90.2	90.2

Power factor

50%	75%	100%
0.51	0.64	0.72

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 6002 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
