/Products/Electric Motors/3 Phase Metric/WEG 3-Phase Metric Electric Motors/Foot Mount, W22/00312ET3EAL132M-W22 WEG 4HP/3kW IEC TRU-Metric Electric Motor, 1200RPM

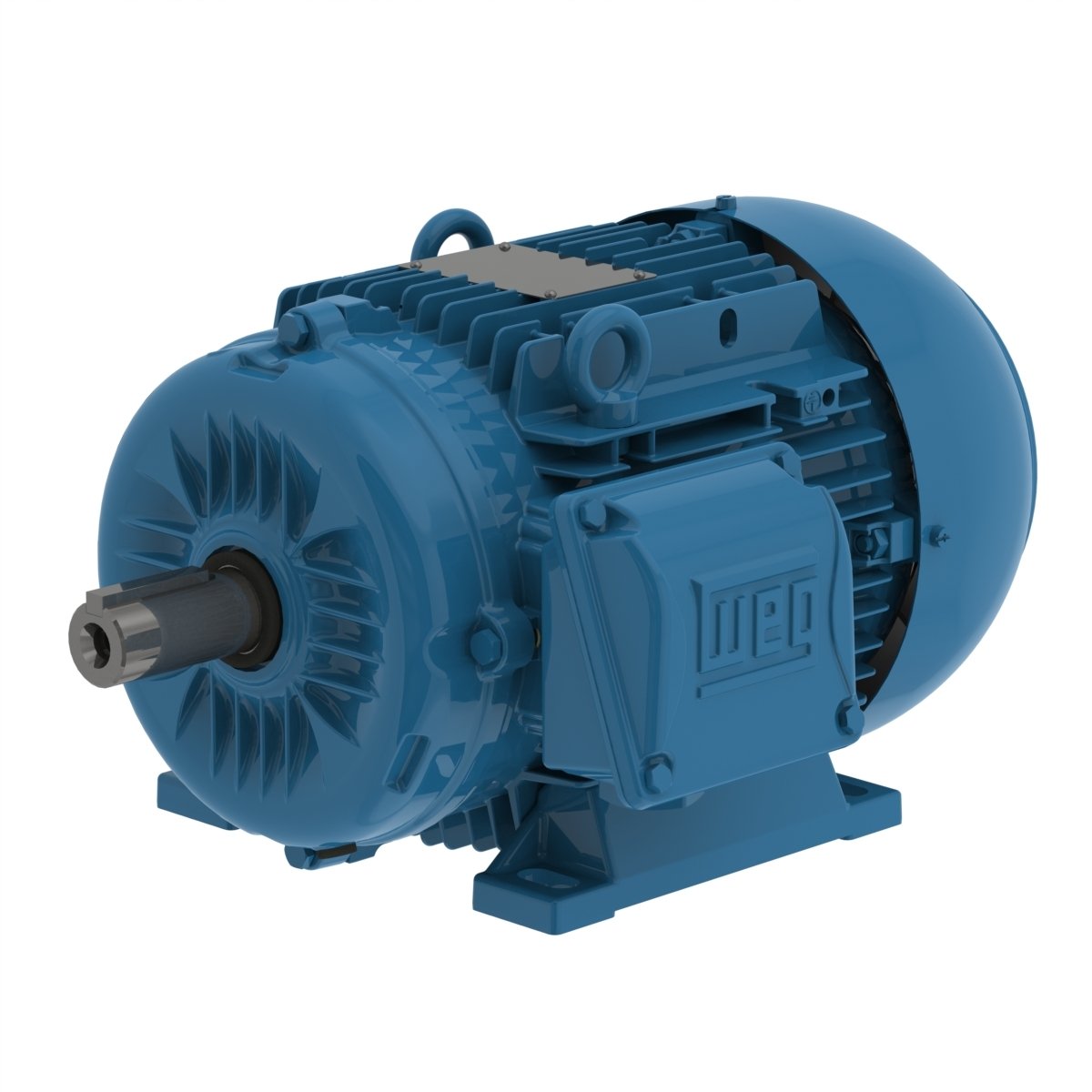

00312ET3EAL132M-W22 WEG 4HP/3kW IEC TRU-Metric Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00312ET3EAL132M-W22

00312ET3EAL132M-W22 WEG 4HP/3kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00312ET3EAL132M-W22

Selected accessories will also be added to cart
$1,109.83 / Each
Quantity:
IC411-TEFC, IP55, 132M Frame, 230/460/190/380VAC 3-Phase 50/60Hz, 14428479, Multimounting, Foot Mount, Aluminum Frame, 38mm Keyed Shaft

Electric Motors

Frame132M
Output4 HP (3 kW)
Number of Poles6
Frequency50 Hz
Rated speed965 rpm
Slip3.50 %
Rated voltage190/380 V
Rated current13.8/6.89 A
L. R. Amperes78.7/39.3 A
LRC5.7
No load current6.80/3.40 A
Rated torque21.5 ft.lb
Locked rotor torque170 %
Breakdown torque220 %
Locked rotor time50s (cold) 28s (hot)
DesignN
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleS1
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingB3L(E)
Rotation¹Both (CW and CCW)
Noise level²53.0 dB(A)
Approx. weight³136 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.9 87.0 87.0

Power factor

50%75%100%
0.56 0.69 0.76
Frame132M
Output4 HP (3 kW)
Number of Poles6
Frequency60 Hz
Rated speed1175 rpm
Slip2.08 %
Rated voltage230/460 V
Rated current12.0/6.01 A
L. R. Amperes88.8/44.5 A
LRC7.4
No load current7.00/3.50 A
Rated torque17.6 ft.lb
Locked rotor torque220 %
Breakdown torque310 %
Locked rotor time122s (cold) 68s (hot)
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleS1
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingB3L(E)
Rotation¹Both (CW and CCW)
Noise level²55.0 dB(A)
Approx. weight³136 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5 88.5 89.5

Power factor

50%75%100%
0.49 0.62 0.70

Features

Frame MaterialAluminum
Impregnation MethodDip and Bake Polyester
Main terminal box hole2xM32x1,5
Terminal BlockBMC - 6 pins
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Type
Electric Motor
Speed
1200RPM
Input Phase
3-Phase
Enclosure
TEFC
Horsepower
4HP
Frame
132M
