00312ET3H213T-W22 WEG 3HP Severe Duty Electric Motor, 1200RPM

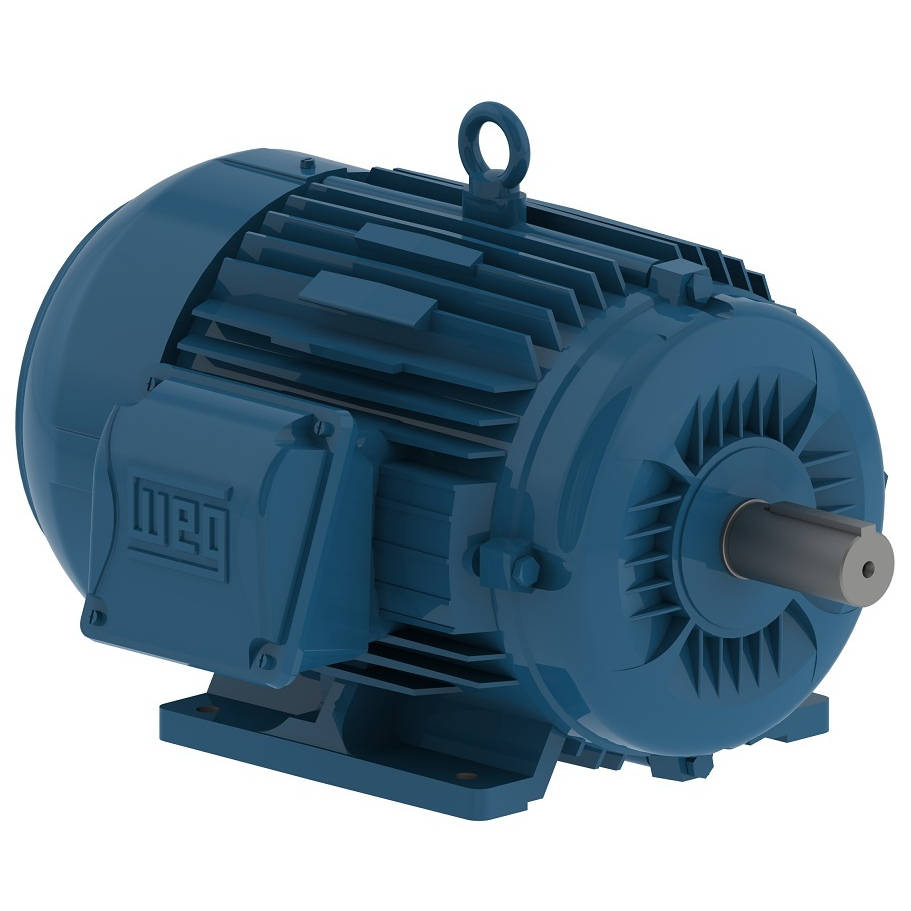

Enlarge Photo

Product ID: 00312ET3H213T-W22

00312ET3H213T-W22 WEG 3HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00312ET3H213T-W22

Selected accessories will also be added to cart
$1,004.81 / Each
Quantity:
IC411 - TEFC, IP55, 213T/215T Frame, 575VAC 60Hz 3 Phase, 12445723, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame213/5T
Output3 HP (2.2 kW)
Number of Poles6
Frequency60 Hz
Rated speed1175 rpm
Slip2.08 %
Rated voltage575 V
Rated current3.53 A
L. R. Amperes24.7 A
LRC7.0x(Code K)
No load current2.20 A
Rated torque13.4 ft.lb
Locked rotor torque200 %
Breakdown torque280 %
Locked rotor time104s (cold) 58s (hot)
Moment of inertia (J)1.20 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?55.0 dB(A)
Approx. weight?156 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
86.5  88.5  89.5

Power factor

50%75%100%
0.50  0.63  0.70

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6308 ZZ  6207 ZZ
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
134 lb 289 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Severe Duty
Horsepower
3HP
Enclosure
TEFC
Input Voltage
575VAC
Frame
213T
Frame
215T
